1emr
CRYSTAL STRUCTURE OF HUMAN LEUKEMIA INHIBITORY FACTOR (LIF)

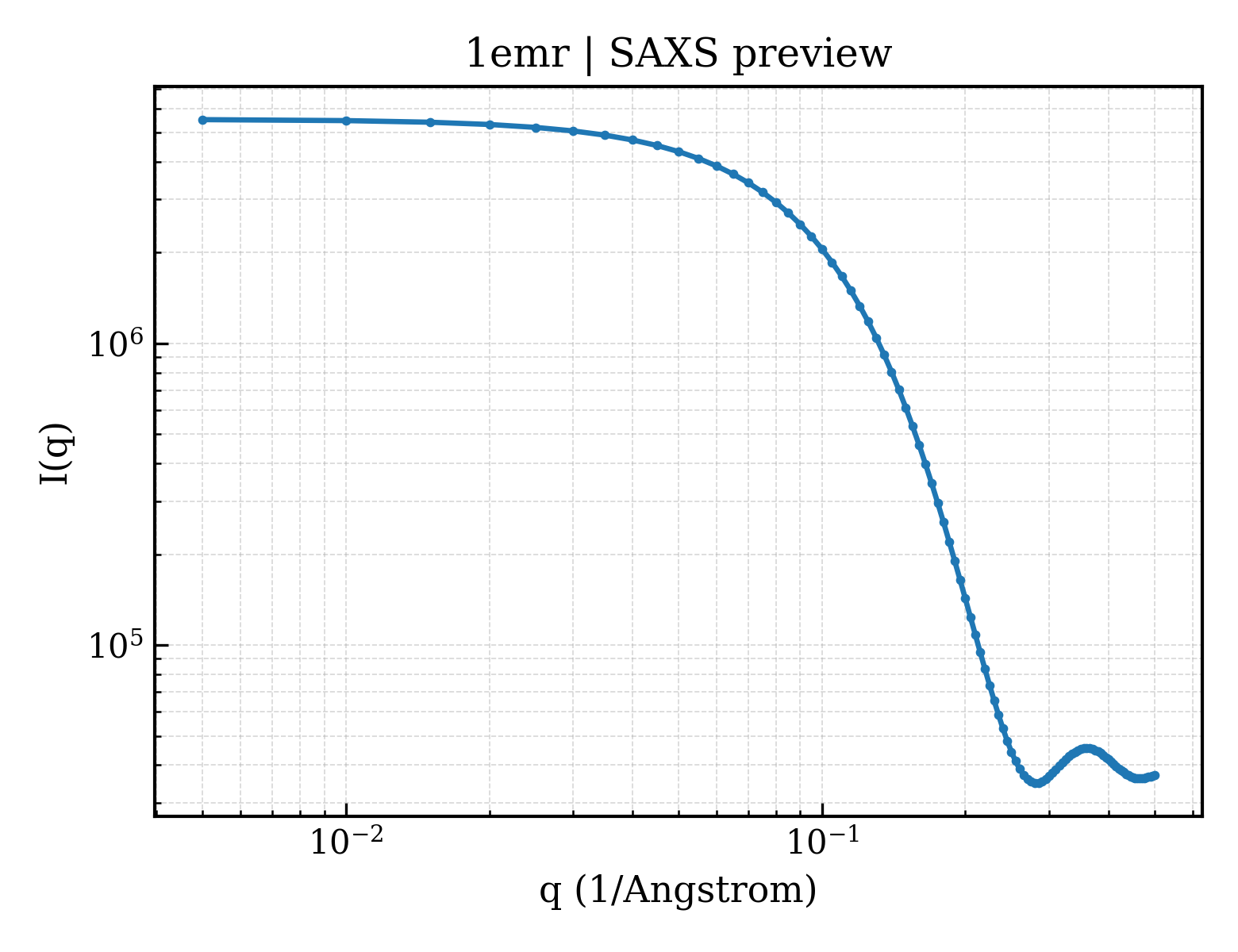

SAXS Profile

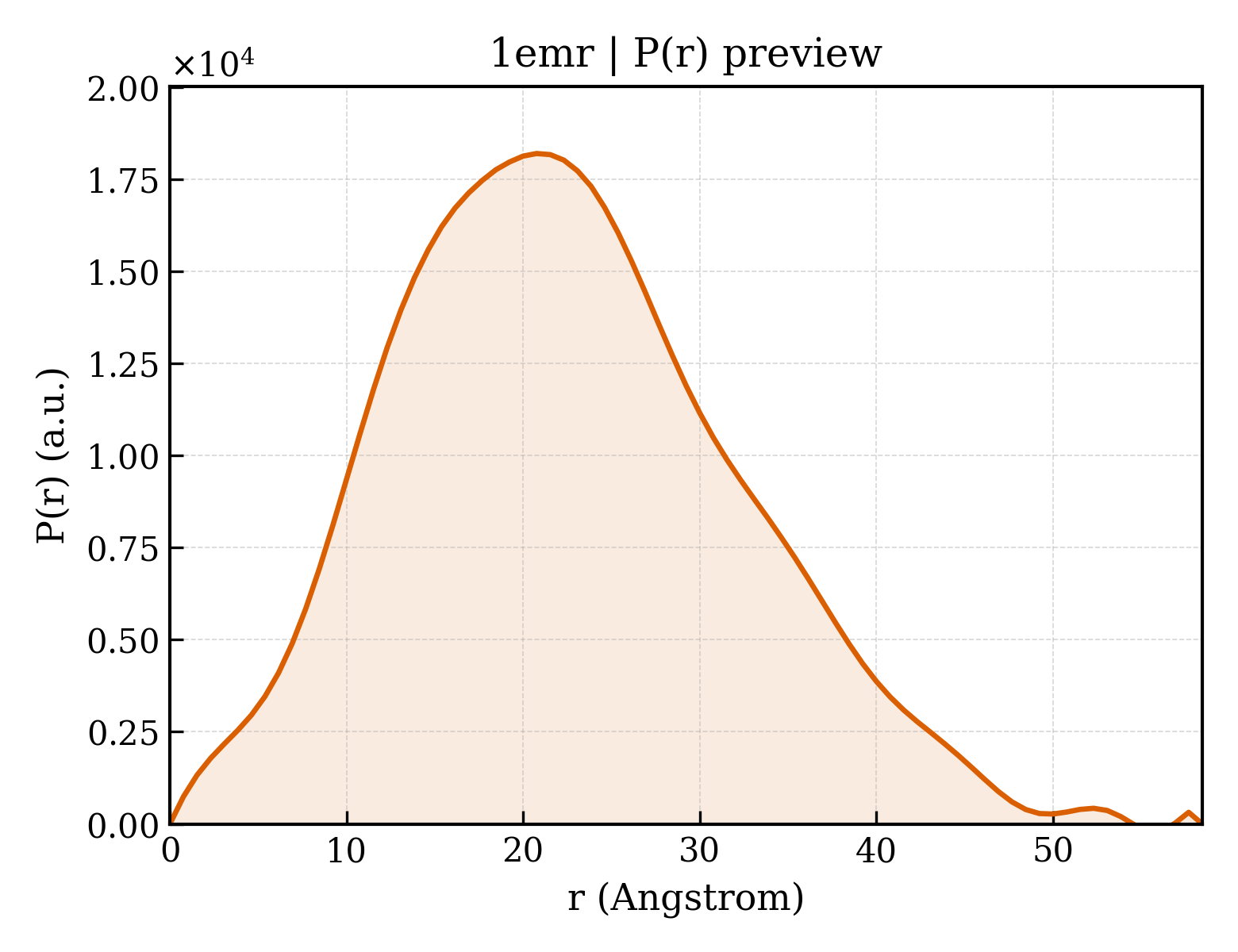

P(r) Distribution
1. Structure Basics
| entry_id | 1emr |
| deposition_date | 2000-03-17 |
| title | CRYSTAL STRUCTURE OF HUMAN LEUKEMIA INHIBITORY FACTOR (LIF) |
| keywords | 4-helix bundle, GENE REGULATION; GENE REGULATION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.21 Å |
| rg_electron | 16.01 Å |
| i0 | 5532940.00 |
| molecular_weight | 17501.0 kDa |
| excluded_volume | 22192 ų |
| envelope_volume | 24971 ų |
| shell_volume | 13654 ų |
| envelope_diameter | 59.8 Å |
| shell_rg | 21.32 Å |
| envelope_rg | 16.23 Å |
| shape_rg | 15.99 Å |
| total_rg | 17.08 Å |
| total_atoms | 1232 |
| n_residues | 159 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.5 Å |
| rg_real | 17.18 Å |
| rg_real_error | 0.42 Å |
| i0_real | 5.5330e+06 |
| i0_real_error | 6.7970e+04 |
| rg_reciprocal | 17.19 Å |
| i0_reciprocal | 5533000.0000 |
| total_estimate | 0.7828 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 20.8 Å |
| skewness | 0.336 |
| kurtosis | -0.216 |
| angular_range | — – 0.4600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1190000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.730; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.000 |
