1enf
CRYSTAL STRUCTURE OF STAPHYLOCOCCAL ENTEROTOXIN H DETERMINED TO 1.69 A RESOLUTION
SAXS Profile

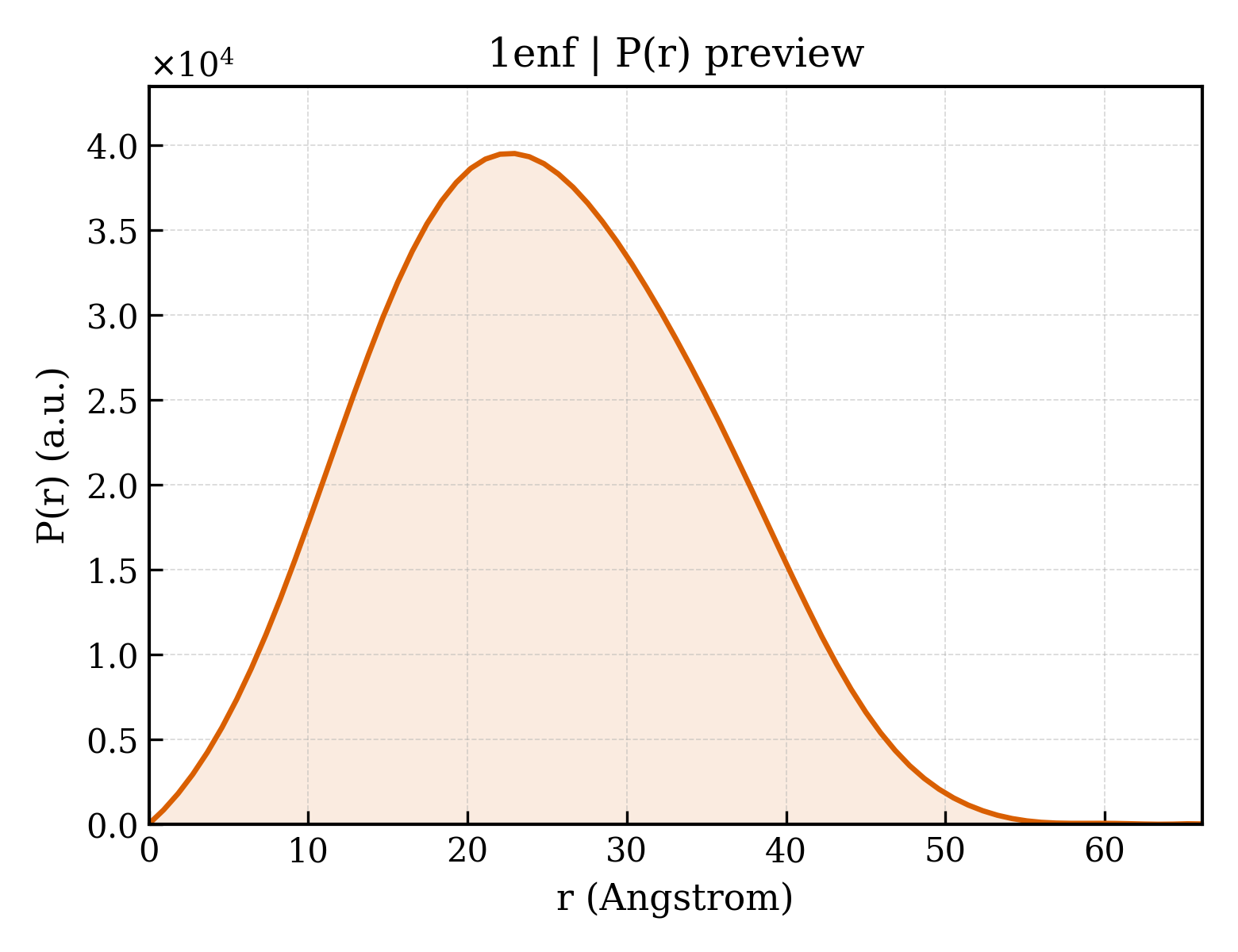

P(r) Distribution
1. Structure Basics
| entry_id | 1enf |
| deposition_date | 2000-03-21 |
| title | CRYSTAL STRUCTURE OF STAPHYLOCOCCAL ENTEROTOXIN H DETERMINED TO 1.69 A RESOLUTION |
| keywords | beta-barrel, beta-grasp, TOXIN; TOXIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.94 Å |
| rg_electron | 17.53 Å |
| i0 | 13495700.00 |
| molecular_weight | 25711.0 kDa |
| excluded_volume | 31341 ų |
| envelope_volume | 36145 ų |
| shell_volume | 17263 ų |
| envelope_diameter | 61.9 Å |
| shell_rg | 23.59 Å |
| envelope_rg | 17.80 Å |
| shape_rg | 17.46 Å |
| total_rg | 18.59 Å |
| total_atoms | 1791 |
| n_residues | 212 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 66.1 Å |
| rg_real | 18.84 Å |
| rg_real_error | 0.42 Å |
| i0_real | 1.3500e+07 |
| i0_real_error | 1.5030e+05 |
| rg_reciprocal | 18.85 Å |
| i0_reciprocal | 13500000.0000 |
| total_estimate | 0.7908 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 23.0 Å |
| skewness | 0.171 |
| kurtosis | -0.490 |
| angular_range | — – 0.4200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2744000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.764; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.000 |
