1eoh
GLUTATHIONE TRANSFERASE P1-1
SAXS Profile

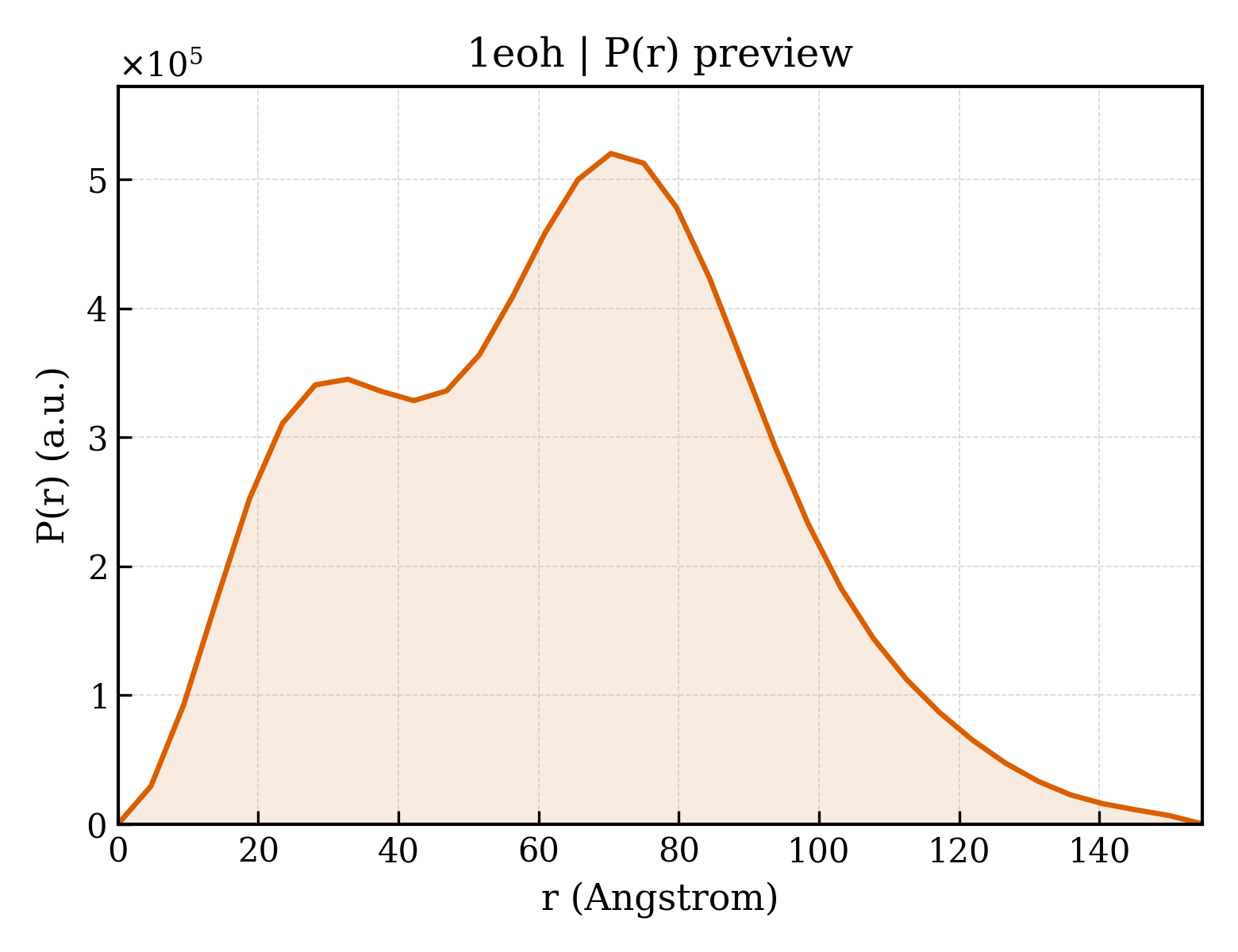

P(r) Distribution
1. Structure Basics
| entry_id | 1eoh |
| deposition_date | 2000-03-22 |
| title | GLUTATHIONE TRANSFERASE P1-1 |
| keywords | glutathione transferase, helix capping mutant (D152A), TRANSFERASE; TRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 48.00 Å |
| rg_electron | 47.56 Å |
| i0 | 462504000.00 |
| molecular_weight | 185430.0 kDa |
| excluded_volume | 234870 ų |
| envelope_volume | 336130 ų |
| shell_volume | 58096 ų |
| envelope_diameter | 151.3 Å |
| shell_rg | 54.26 Å |
| envelope_rg | 45.19 Å |
| shape_rg | 47.55 Å |
| total_rg | 47.83 Å |
| total_atoms | 13080 |
| n_residues | 1672 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 154.7 Å |
| rg_real | 49.07 Å |
| rg_real_error | 0.63 Å |
| i0_real | 4.6070e+08 |
| i0_real_error | 7.3470e+06 |
| rg_reciprocal | 48.00 Å |
| i0_reciprocal | 462600000.0000 |
| total_estimate | 0.6542 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 70.3 Å |
| skewness | 0.138 |
| kurtosis | -0.500 |
| angular_range | — – 0.1650 Å−1 |
| current_alpha | 1.2100 |
| highest_alpha | 101700000.0000 |
| n_real_points | 34 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.729; Stabil: 0.906; Sysdev: 0.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.625 |
