1eos
;CRYSTAL STRUCTURE OF RIBONUCLEASE A COMPLEXED WITH URIDYLYL(2',5')GUANOSINE (PRODUCTIVE BINDING) ;
SAXS Profile

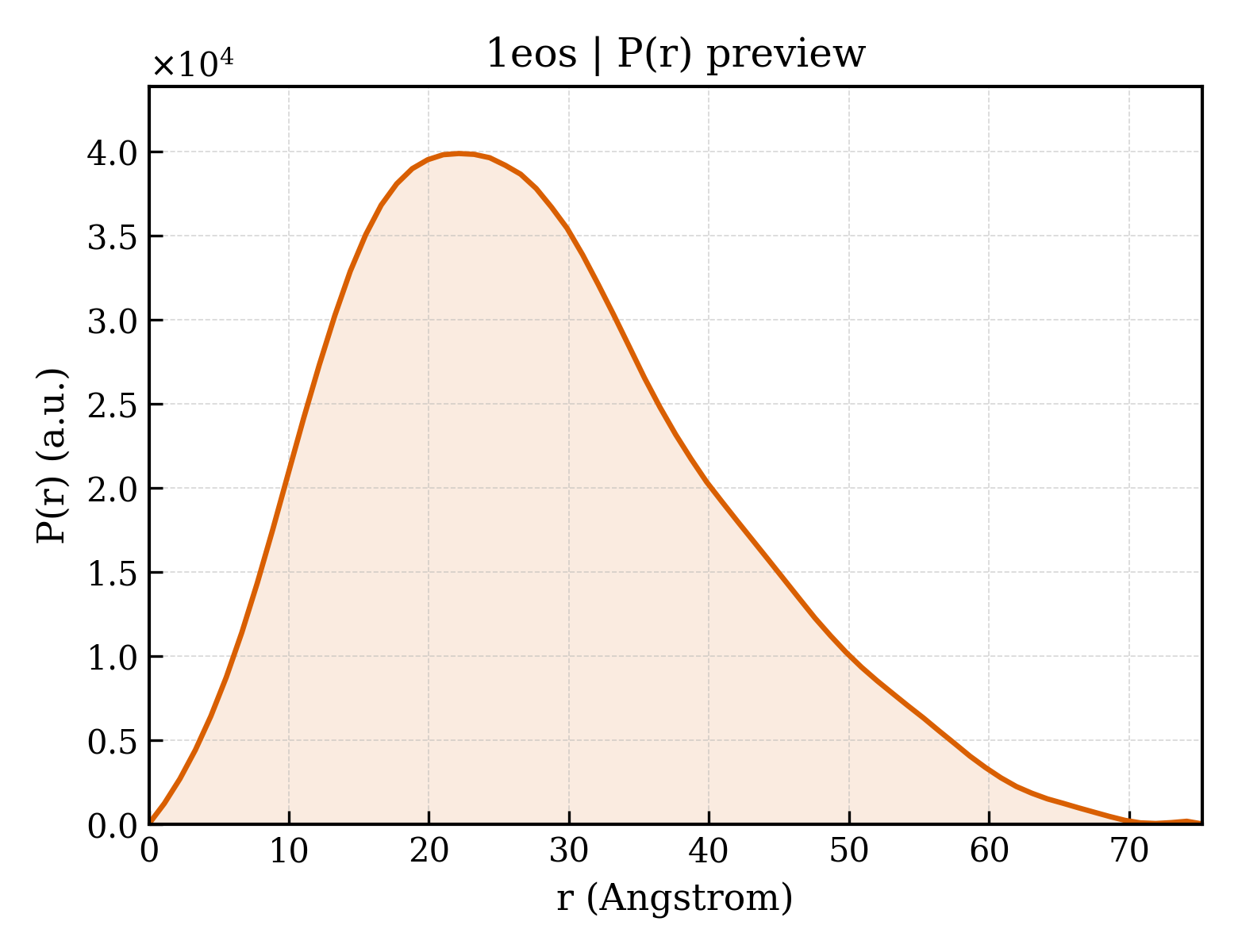

P(r) Distribution
1. Structure Basics
| entry_id | 1eos |
| deposition_date | 2000-03-24 |
| title | ;CRYSTAL STRUCTURE OF RIBONUCLEASE A COMPLEXED WITH URIDYLYL(2',5')GUANOSINE (PRODUCTIVE BINDING) ; |
| keywords | NON-PRODUCTIVE BINDING, PROTEIN-NUCLEOTIDE INTERACTIONS, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.35 Å |
| rg_electron | 20.92 Å |
| i0 | 16392500.00 |
| molecular_weight | 27594.0 kDa |
| excluded_volume | 33283 ų |
| envelope_volume | 40427 ų |
| shell_volume | 17347 ų |
| envelope_diameter | 75.5 Å |
| shell_rg | 25.90 Å |
| envelope_rg | 21.17 Å |
| shape_rg | 20.91 Å |
| total_rg | 21.59 Å |
| total_atoms | 1915 |
| n_residues | 248 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 75.2 Å |
| rg_real | 21.49 Å |
| rg_real_error | 0.72 Å |
| i0_real | 1.6390e+07 |
| i0_real_error | 2.1400e+05 |
| rg_reciprocal | 21.46 Å |
| i0_reciprocal | 16390000.0000 |
| total_estimate | 0.8429 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.1 Å |
| skewness | 0.510 |
| kurtosis | -0.196 |
| angular_range | — – 0.3700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3074000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.747; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.763; Smooth: 0.950 |
