1eow
;CRYSTAL STRUCTURE OF RIBONUCLEASE A COMPLEXED WITH URIDYLYL(2',5')GUANOSINE (NON-PRODUCTIVE BINDING) ;

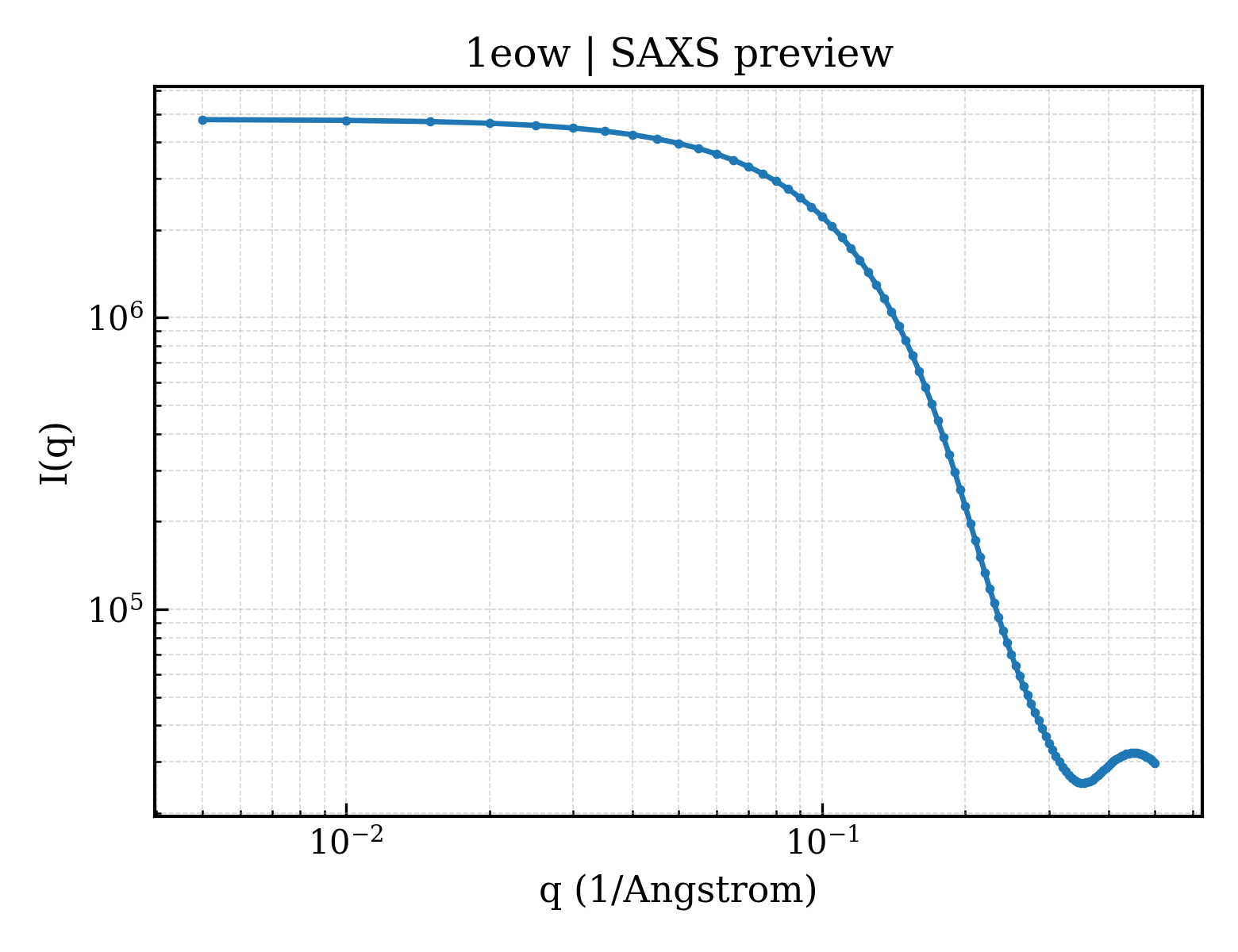

SAXS Profile

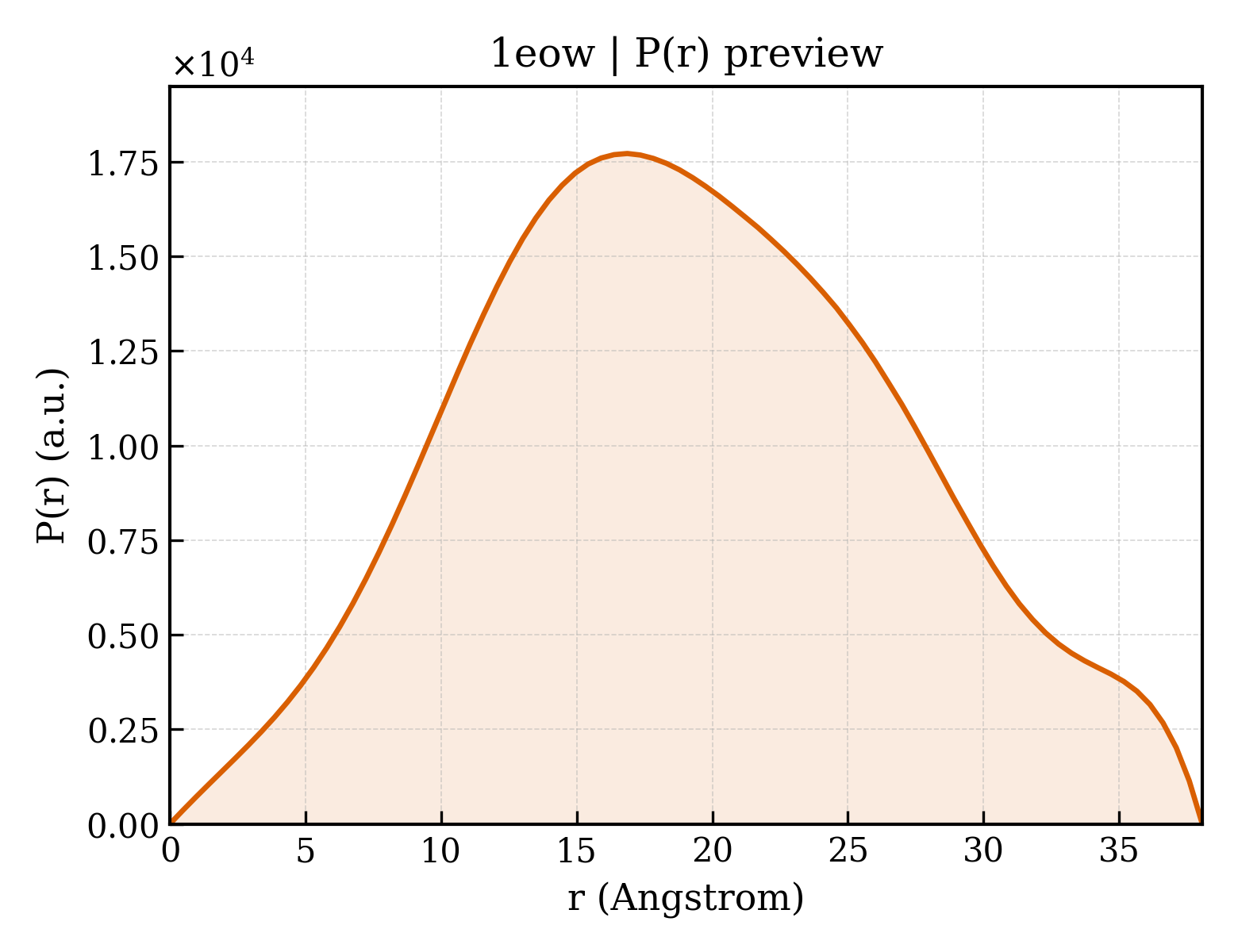

P(r) Distribution
1. Structure Basics
| entry_id | 1eow |
| deposition_date | 2000-03-24 |
| title | ;CRYSTAL STRUCTURE OF RIBONUCLEASE A COMPLEXED WITH URIDYLYL(2',5')GUANOSINE (NON-PRODUCTIVE BINDING) ; |
| keywords | NON-PRODUCTIVE BINDING, PROTEIN-NUCLEOTIDE INTERACTIONS, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.08 Å |
| rg_electron | 14.18 Å |
| i0 | 4785920.00 |
| molecular_weight | 14073.0 kDa |
| excluded_volume | 16929 ų |
| envelope_volume | 19435 ų |
| shell_volume | 11828 ų |
| envelope_diameter | 49.5 Å |
| shell_rg | 19.71 Å |
| envelope_rg | 14.52 Å |
| shape_rg | 14.18 Å |
| total_rg | 15.21 Å |
| total_atoms | 976 |
| n_residues | 124 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 38.1 Å |
| rg_real | 14.55 Å |
| rg_real_error | 0.03 Å |
| i0_real | 4.5900e+06 |
| i0_real_error | 3.4510e+04 |
| rg_reciprocal | 15.03 Å |
| i0_reciprocal | 4786000.0000 |
| total_estimate | 0.6870 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 16.9 Å |
| skewness | 0.139 |
| kurtosis | -0.547 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 3.3730 |
| highest_alpha | 820500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.998; Stabil: 0.979; Sysdev: 0.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
