1eq7
CORE STRUCTURE OF THE OUTER MEMBRANE LIPOPROTEIN FROM ESCHERICHIA COLI AT 1.9 ANGSTROM RESOLUTION

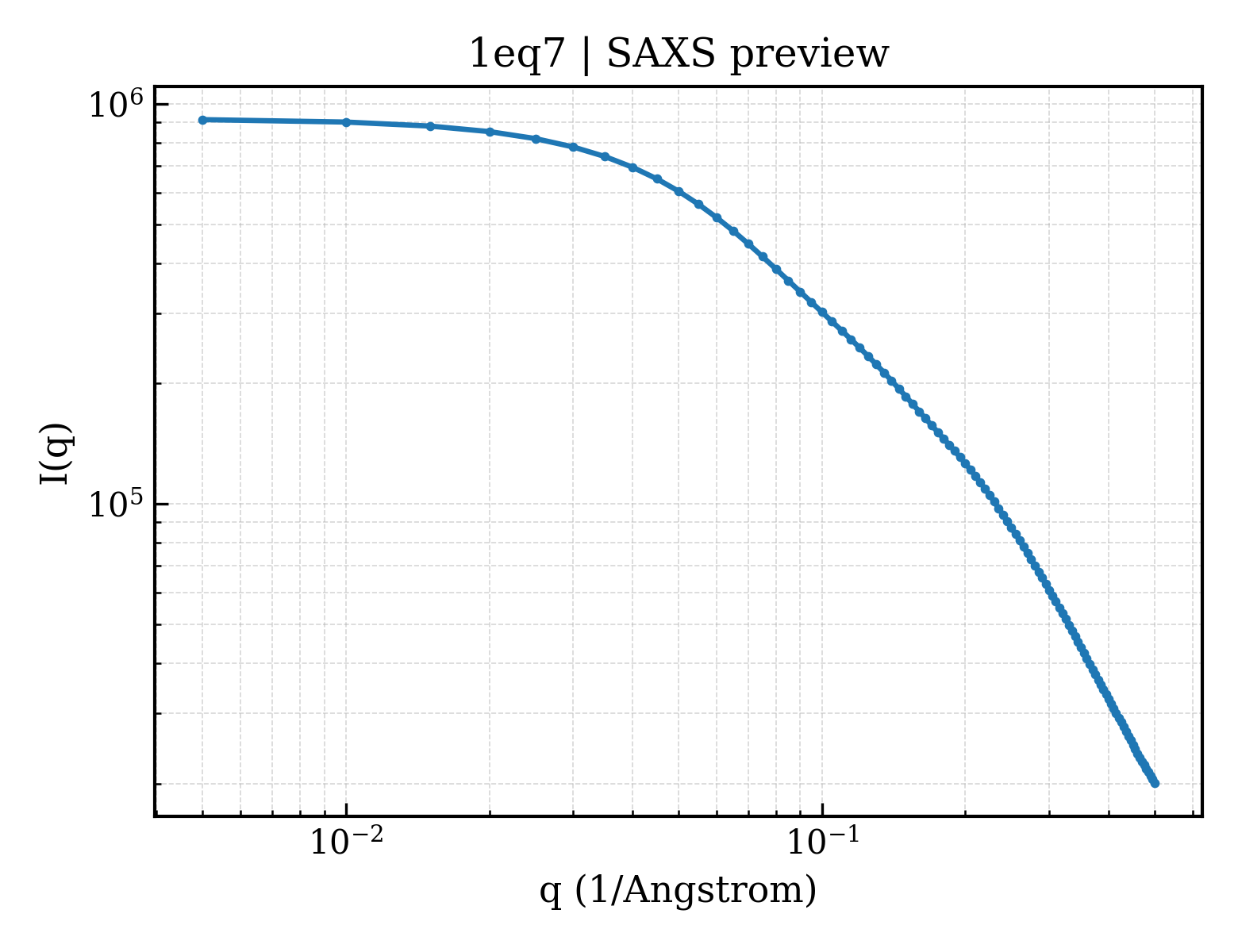

SAXS Profile

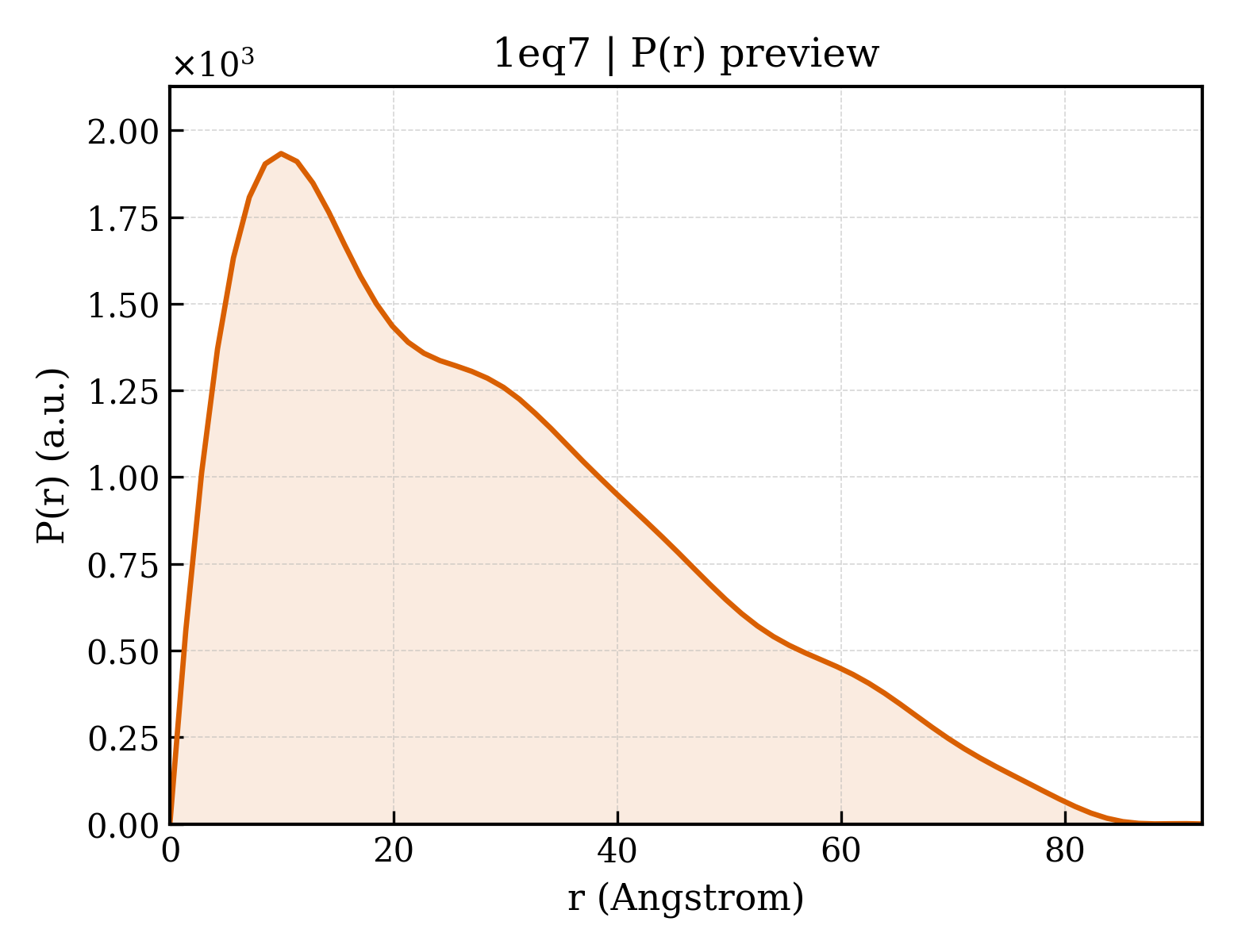

P(r) Distribution
1. Structure Basics
| entry_id | 1eq7 |
| deposition_date | 2000-04-03 |
| title | CORE STRUCTURE OF THE OUTER MEMBRANE LIPOPROTEIN FROM ESCHERICHIA COLI AT 1.9 ANGSTROM RESOLUTION |
| keywords | lipoprotein, outer membrane, protein folding, helix capping, MEMBRANE PROTEIN; MEMBRANE PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.86 Å |
| rg_electron | 24.23 Å |
| i0 | 917714.00 |
| molecular_weight | 5842.0 kDa |
| excluded_volume | 6973 ų |
| envelope_volume | 10543 ų |
| shell_volume | 5273 ų |
| envelope_diameter | 84.8 Å |
| shell_rg | 22.98 Å |
| envelope_rg | 25.17 Å |
| shape_rg | 24.24 Å |
| total_rg | 23.98 Å |
| total_atoms | 408 |
| n_residues | 56 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 92.3 Å |
| rg_real | 23.66 Å |
| rg_real_error | 1.24 Å |
| i0_real | 9.1770e+05 |
| i0_real_error | 1.4230e+04 |
| rg_reciprocal | 23.47 Å |
| i0_reciprocal | 917600.0000 |
| total_estimate | 0.6181 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 9.9 Å |
| skewness | 0.678 |
| kurtosis | -0.346 |
| angular_range | — – 0.3450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 28200.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.011; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.002; Smooth: 0.995 |
