1eqj

CRYSTAL STRUCTURE OF PHOSPHOGLYCERATE MUTASE FROM BACILLUS STEAROTHERMOPHILUS COMPLEXED WITH 2-PHOSPHOGLYCERATE

Method: X-RAY DIFFRACTION D_max: 78.2 Å Quality: REASONABLE

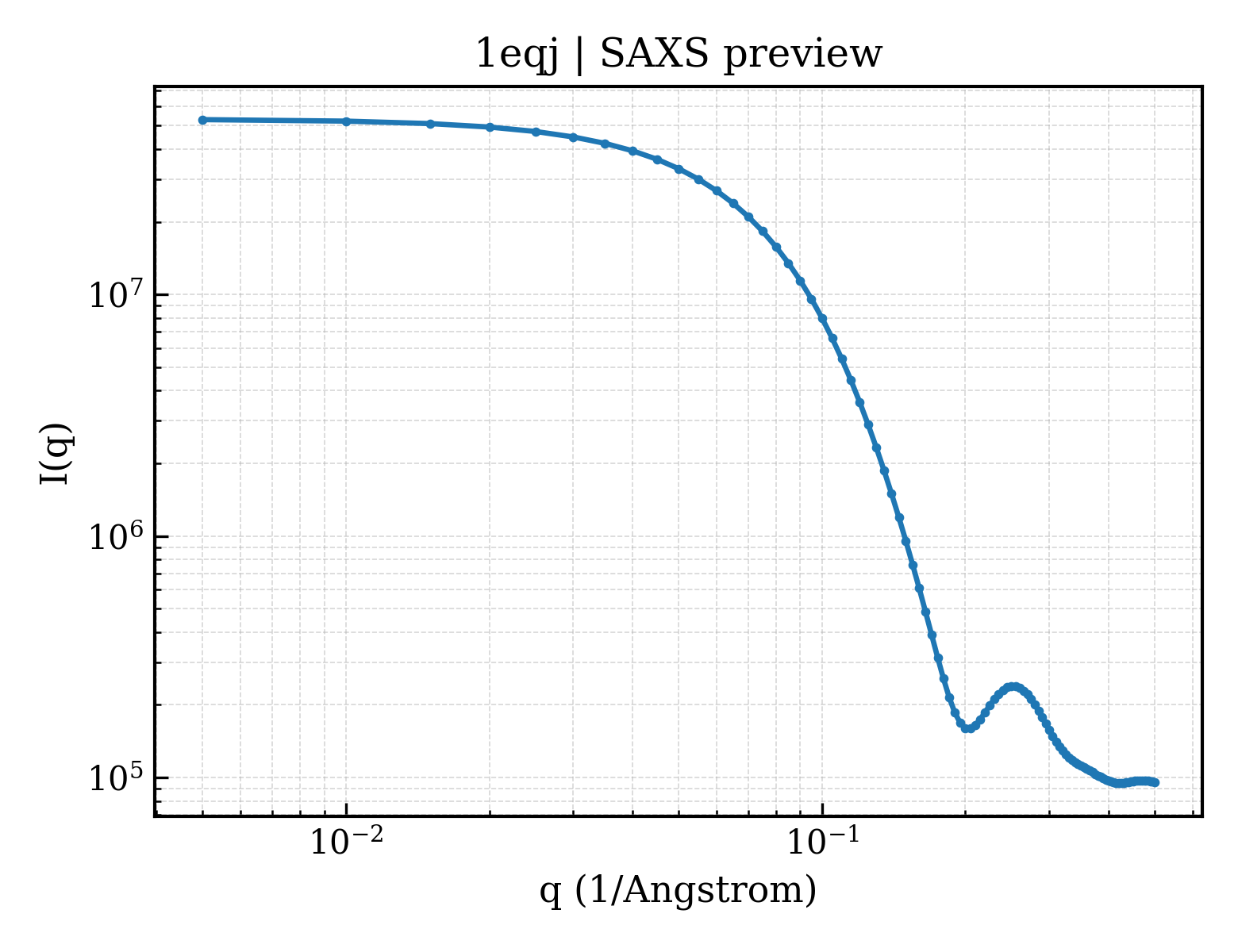

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1eqj
deposition_date	2000-04-05
title	CRYSTAL STRUCTURE OF PHOSPHOGLYCERATE MUTASE FROM BACILLUS STEAROTHERMOPHILUS COMPLEXED WITH 2-PHOSPHOGLYCERATE
keywords	alpha/beta-type structure, ISOMERASE; ISOMERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	23.79 Å
rg_electron	23.03 Å
i0	53201900.00
molecular_weight	56864.0 kDa
excluded_volume	71155 Å³
envelope_volume	79543 Å³
shell_volume	28281 Å³
envelope_diameter	80.9 Å
shell_rg	30.52 Å
envelope_rg	23.25 Å
shape_rg	23.03 Å
total_rg	23.83 Å
total_atoms	4005
n_residues	508
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	78.2 Å
rg_real	23.74 Å
rg_real_error	0.48 Å
i0_real	5.3200e+07
i0_real_error	7.2060e+05
rg_reciprocal	23.75 Å
i0_reciprocal	53200000.0000
total_estimate	0.7149
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	28.1 Å
skewness	0.342
kurtosis	-0.297
angular_range	— – 0.3350 Å⁻¹
current_alpha	0.0000
highest_alpha	13640000.0000
n_real_points	65
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.828; Stabil: 1.000; Sysdev: 0.286; Positv: 1.000; Valcen: 0.998; Smooth: 0.952

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	PHOSPHOGLYCERATE MUTASE
formula_weight	57023.6 kDa
ec_number	5.4.2.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4177

MSKKPVALIILDGFALRDETYGNAVAQANKPNFDRYWNEYPHTTLKACGEAVGLPEGQMGNSEVGHLNIGAGRIVYQSLTRINIAIREGEFDRNETFLAAMNHVKQHGTSLHLFGLLSDGGVHSHIHHLYALLRLAAKEGVKRVYIHGFLDGRDVGPQTAPQYIKELQEKIKEYGVGEIATLSGRYYSMDRDKRWDRVEKAYRAMVYGEGPTYRDPLECIEDSYKHGIYDEFVLPSVIVREDGRPVATIQDNDAIIFYNFRPDRAIQISNTFTNEDFREFDRGPKHPKHLFFVCLTHFSETVAGYVAFKPTNLDNTIGEVLSQHGLRQLRIAETEKYPHVTFFMSGGREEEFPGEDRILINSPKVPTYDLKPEMSAYEVTDALLKEIEADKYDAIILNYANPDMVGHSGKLEPTIKAVEAVDECLGKVVDAILAKGGIAIITADHGNADEVLTPDGKPQTAHTTNPVPVIVTKKGIKLRDGGILGDLAPTMLDLLGLPQPKEMTGKSLIVK

Source

organism	Geobacillus stearothermophilus
ncbi_taxonomy_id	1422
host_organism	Bacillus subtilis

Entity 2 non-polymer

description	MANGANESE (II) ION
formula_weight	54.9 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	2-PHOSPHOGLYCERIC ACID
formula_weight	186.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	172

▶

6. Citations (1)

▶

length_a	58.407 Å
length_b	205.688 Å
length_c	123.706 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	1.700 Å
resolution_low	20.000 Å
r_factor	—
r_work	0.2180
r_free	0.2580
