SINGLE STRANDED DNA BINDING PROTEIN AND SSDNA COMPLEX

entry_id	1eqq
deposition_date	2000-04-06
title	SINGLE STRANDED DNA BINDING PROTEIN AND SSDNA COMPLEX
keywords	BETA BARREL, PROTEIN-DNA COMPLEX, REPLICATION-RNA COMPLEX; REPLICATION/RNA
method	X-RAY DIFFRACTION

rg_guinier	24.54 Å
rg_electron	22.99 Å
i0	50928900.00
molecular_weight	52319.0 kDa
excluded_volume	64508 ų
envelope_volume	84058 ų
shell_volume	29542 ų
envelope_diameter	80.0 Å
shell_rg	30.89 Å
envelope_rg	23.40 Å
shape_rg	23.01 Å
total_rg	23.88 Å
total_atoms	3671
n_residues	464
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	78.3 Å
rg_real	24.37 Å
rg_real_error	0.43 Å
i0_real	5.0930e+07
i0_real_error	7.1550e+05
rg_reciprocal	24.41 Å
i0_reciprocal	50930000.0000
total_estimate	0.8801
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	31.1 Å
skewness	0.172
kurtosis	-0.332
angular_range	— – 0.3250 Å−1
current_alpha	0.0000
highest_alpha	7893000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.851; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.891

Unit Cell

length_a	101.714 Å
length_b	60.473 Å
length_c	94.733 Å
angle_alpha	90.00 °
angle_beta	112.60 °
angle_gamma	90.00 °
z_pdb	16

Symmetry

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

Refinement

resolution	3.200 Å
resolution_low	15.000 Å
r_factor	0.2130
r_work	0.2130
r_free	0.3390

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/eq/1eqq/pr_distribution.json
• pr_output /app/data/pr_computation/eq/1eqq/1eqq.pr.out

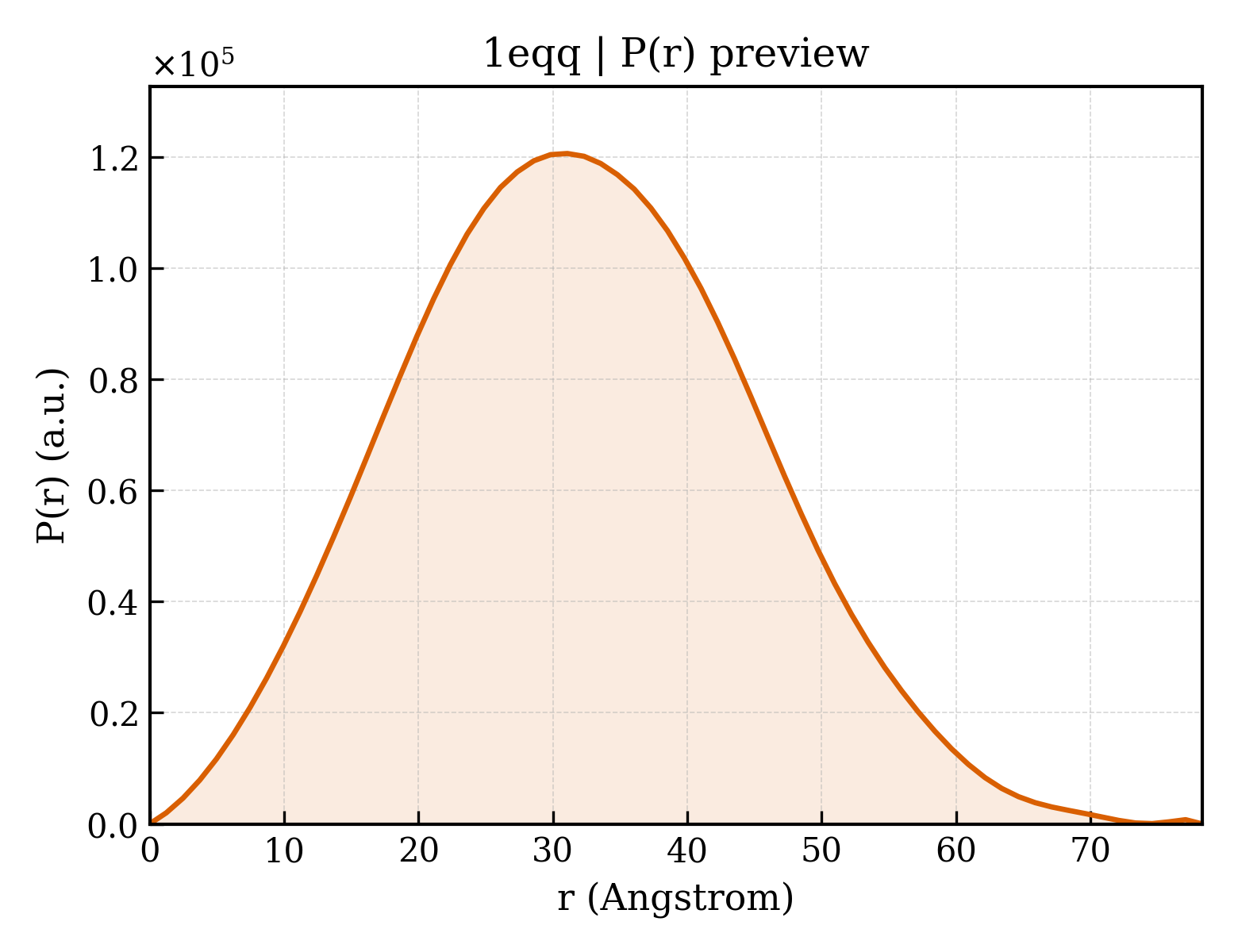

• pr_plot /app/data/visualization/pr_computation/eq/1eqq/1eqq_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/eq/1eqq/1eqq.dat
• saxs_fit /app/data/saxs_computation/eq/1eqq/1eqq.fit
• saxs_log /app/data/saxs_computation/eq/1eqq/1eqq.log

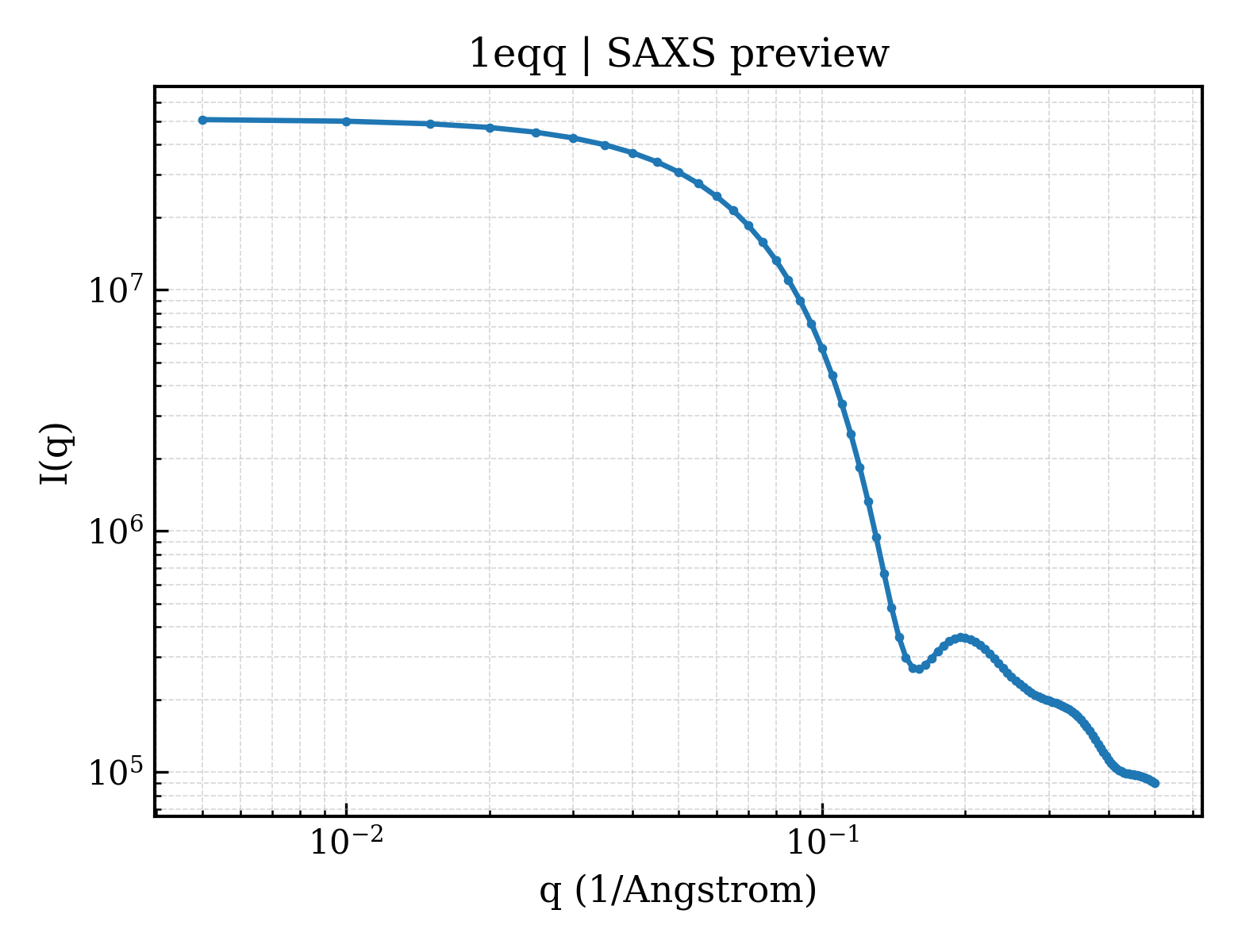

• saxs_plot /app/data/visualization/saxs_computation/eq/1eqq/1eqq_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/eq/1eqq/1eqq.fit
pddf	/app/data/pr_computation/eq/1eqq/1eqq.pr.out
profile	/app/data/saxs_computation/eq/1eqq/1eqq.dat
