1erb
;THE INTERACTION OF N-ETHYL RETINAMIDE WITH PLASMA RETINOL-BINDING PROTEIN (RBP) AND THE CRYSTAL STRUCTURE OF THE RETINOID-RBP COMPLEX AT 1.9 ANGSTROMS RESOLUTION ;
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1erb |
| deposition_date | 1993-10-01 |
| title | ;THE INTERACTION OF N-ETHYL RETINAMIDE WITH PLASMA RETINOL-BINDING PROTEIN (RBP) AND THE CRYSTAL STRUCTURE OF THE RETINOID-RBP COMPLEX AT 1.9 ANGSTROMS RESOLUTION ; |
| keywords | RETINOL TRANSPORT; RETINOL TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.11 Å |
| rg_electron | 15.76 Å |
| i0 | 8055580.00 |
| molecular_weight | 20377.0 kDa |
| excluded_volume | 25327 ų |
| envelope_volume | 28487 ų |
| shell_volume | 15242 ų |
| envelope_diameter | 51.8 Å |
| shell_rg | 21.73 Å |
| envelope_rg | 15.99 Å |
| shape_rg | 15.66 Å |
| total_rg | 17.06 Å |
| total_atoms | 1424 |
| n_residues | 173 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

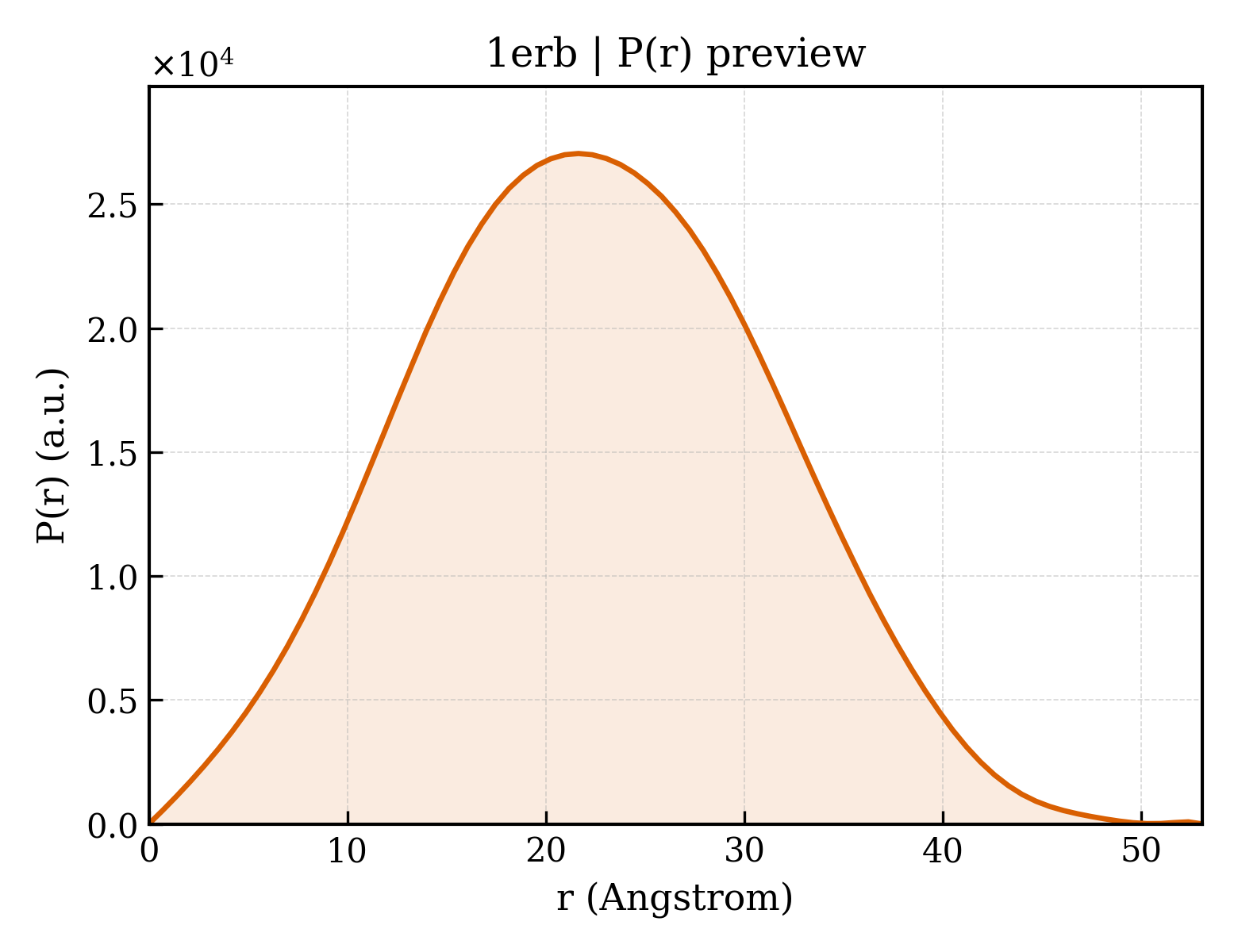

3. P(r) Analysis (GNOM)
| dmax | 53.1 Å |
| rg_real | 16.98 Å |
| rg_real_error | 0.22 Å |
| i0_real | 8.0560e+06 |
| i0_real_error | 8.0740e+04 |
| rg_reciprocal | 17.00 Å |
| i0_reciprocal | 8056000.0000 |
| total_estimate | 0.8973 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.6 Å |
| skewness | 0.082 |
| kurtosis | -0.451 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1261000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.976 |
