CRYSTAL STRUCTURE OF THE C-TERMINAL WD40 DOMAIN OF TUP1

Method: X-RAY DIFFRACTION D_max: 112.6 Å Quality: GOOD

SAXS Profile

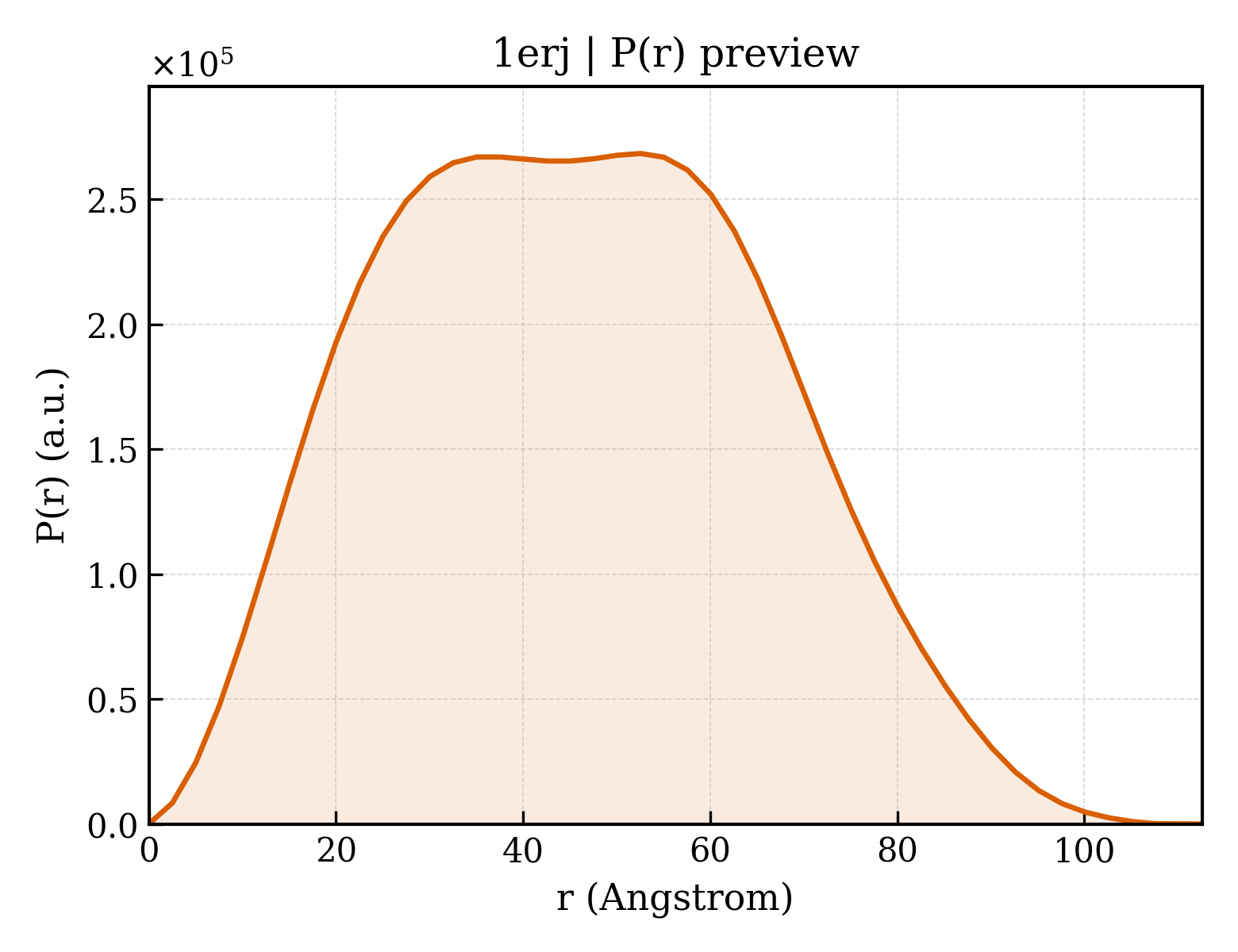

P(r) Distribution

▼

1. Structure Basics

entry_id	1erj
deposition_date	2000-04-06
title	CRYSTAL STRUCTURE OF THE C-TERMINAL WD40 DOMAIN OF TUP1
keywords	beta-propeller, TRANSCRIPTION INHIBITOR; TRANSCRIPTION INHIBITOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.44 Å
rg_electron	34.83 Å
i0	202210000.00
molecular_weight	113060.0 kDa
excluded_volume	140760 Å³
envelope_volume	180960 Å³
shell_volume	43004 Å³
envelope_diameter	113.9 Å
shell_rg	41.52 Å
envelope_rg	34.22 Å
shape_rg	34.82 Å
total_rg	35.31 Å
total_atoms	7979
n_residues	1055
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	112.6 Å
rg_real	35.36 Å
rg_real_error	0.82 Å
i0_real	2.0220e+08
i0_real_error	3.2730e+06
rg_reciprocal	35.42 Å
i0_reciprocal	202200000.0000
total_estimate	0.8993
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	52.6 Å
skewness	0.156
kurtosis	-0.679
angular_range	— – 0.2250 Å⁻¹
current_alpha	0.0000
highest_alpha	61590000.0000
n_real_points	46
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.898

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	119.280 Å
length_b	119.280 Å
length_c	77.070 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	9

space_group	P 31
int_tables_number	144
crystal_system	—

resolution	2.300 Å
resolution_low	30.000 Å
r_factor	—
r_work	0.2280
r_free	0.2660

description	TRANSCRIPTIONAL REPRESSOR TUP1
formula_weight	43308.1 kDa
src_method	man
entity_count	3

type	polypeptide(L)
strand_id	A,B,C
atom_count	8244

CRYSTAL STRUCTURE OF THE C-TERMINAL WD40 DOMAIN OF TUP1

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Saccharomyces cerevisiae
common_name	;baker's yeast ;
ncbi_taxonomy_id	4932
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	265

fit	/app/data/saxs_computation/er/1erj/1erj.fit
pddf	/app/data/pr_computation/er/1erj/1erj.pr.out
profile	/app/data/saxs_computation/er/1erj/1erj.dat
