1erp
NUCLEAR MAGNETIC RESONANCE SOLUTION STRUCTURE OF THE PHEROMONE ER-10 FROM THE CILIATED PROTOZOAN EUPLOTES RAIKOVI

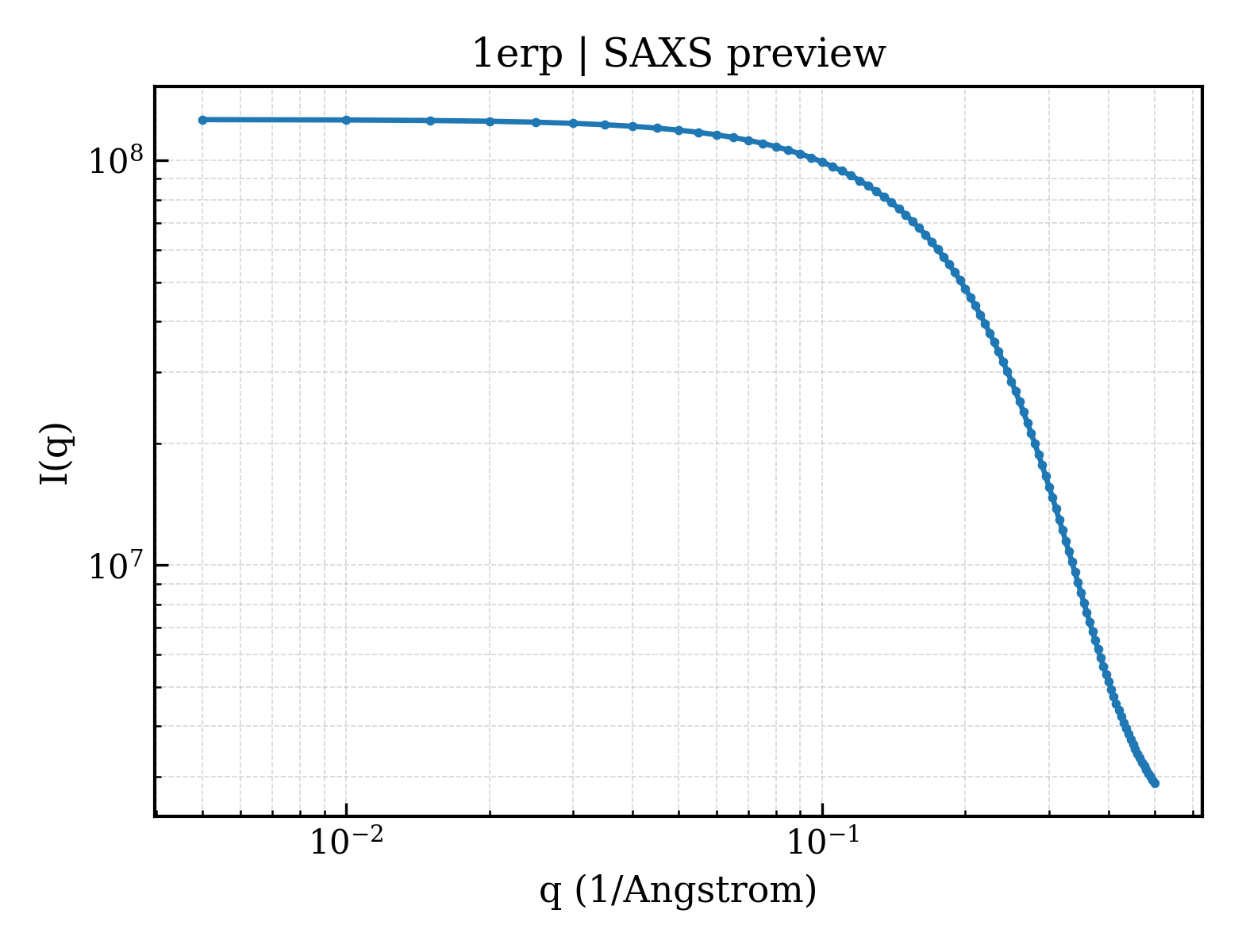

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1erp |
| deposition_date | 1992-12-02 |
| title | NUCLEAR MAGNETIC RESONANCE SOLUTION STRUCTURE OF THE PHEROMONE ER-10 FROM THE CILIATED PROTOZOAN EUPLOTES RAIKOVI |
| keywords | PHEROMONE; PHEROMONE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.50 Å |
| rg_electron | 9.07 Å |
| i0 | 126098000.00 |
| molecular_weight | 83494.0 kDa |
| excluded_volume | 99557 ų |
| envelope_volume | 7410 ų |
| shell_volume | 6694 ų |
| envelope_diameter | 33.7 Å |
| shell_rg | 14.90 Å |
| envelope_rg | 10.41 Å |
| shape_rg | 9.12 Å |
| total_rg | 9.07 Å |
| total_atoms | 10760 |
| n_residues | 760 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 28.8 Å |
| rg_real | 8.50 Å |
| rg_real_error | 0.26 Å |
| i0_real | 1.2610e+08 |
| i0_real_error | 1.3690e+06 |
| rg_reciprocal | 8.50 Å |
| i0_reciprocal | 126100000.0000 |
| total_estimate | 0.8841 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 10.2 Å |
| skewness | 0.272 |
| kurtosis | -0.343 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 13440.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.939 |
