1es6
CRYSTAL STRUCTURE OF THE MATRIX PROTEIN OF EBOLA VIRUS

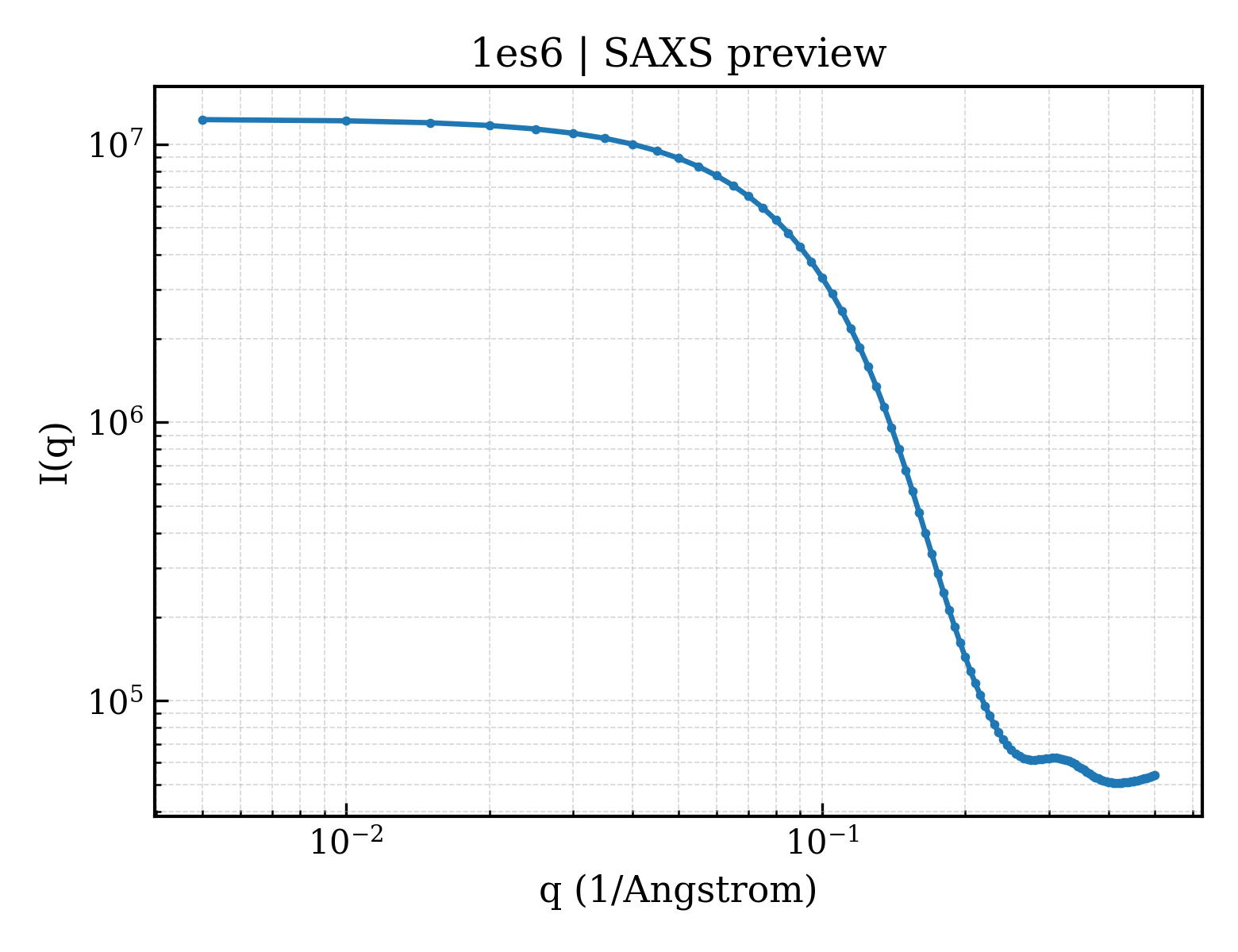

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1es6 |
| deposition_date | 2000-04-07 |
| title | CRYSTAL STRUCTURE OF THE MATRIX PROTEIN OF EBOLA VIRUS |
| keywords | beta sandwich, anti-parallel strands, beta sheet, helix, Viral protein; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.68 Å |
| rg_electron | 18.68 Å |
| i0 | 12293400.00 |
| molecular_weight | 27885.0 kDa |
| excluded_volume | 35684 ų |
| envelope_volume | 40549 ų |
| shell_volume | 18527 ų |
| envelope_diameter | 68.8 Å |
| shell_rg | 24.72 Å |
| envelope_rg | 18.83 Å |
| shape_rg | 18.66 Å |
| total_rg | 19.69 Å |
| total_atoms | 1965 |
| n_residues | 260 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 65.2 Å |
| rg_real | 19.62 Å |
| rg_real_error | 0.47 Å |
| i0_real | 1.2290e+07 |
| i0_real_error | 1.7020e+05 |
| rg_reciprocal | 19.63 Å |
| i0_reciprocal | 12290000.0000 |
| total_estimate | 0.7989 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 23.9 Å |
| skewness | 0.294 |
| kurtosis | -0.296 |
| angular_range | — – 0.4050 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3364000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.797; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.000 |
