1eug
;CRYSTAL STRUCTURE OF ESCHERICHIA COLI URACIL DNA GLYCOSYLASE AND ITS COMPLEXES WITH URACIL AND GLYCEROL: STRUCTURE AND GLYCOSYLASE MECHANISM REVISITED ;

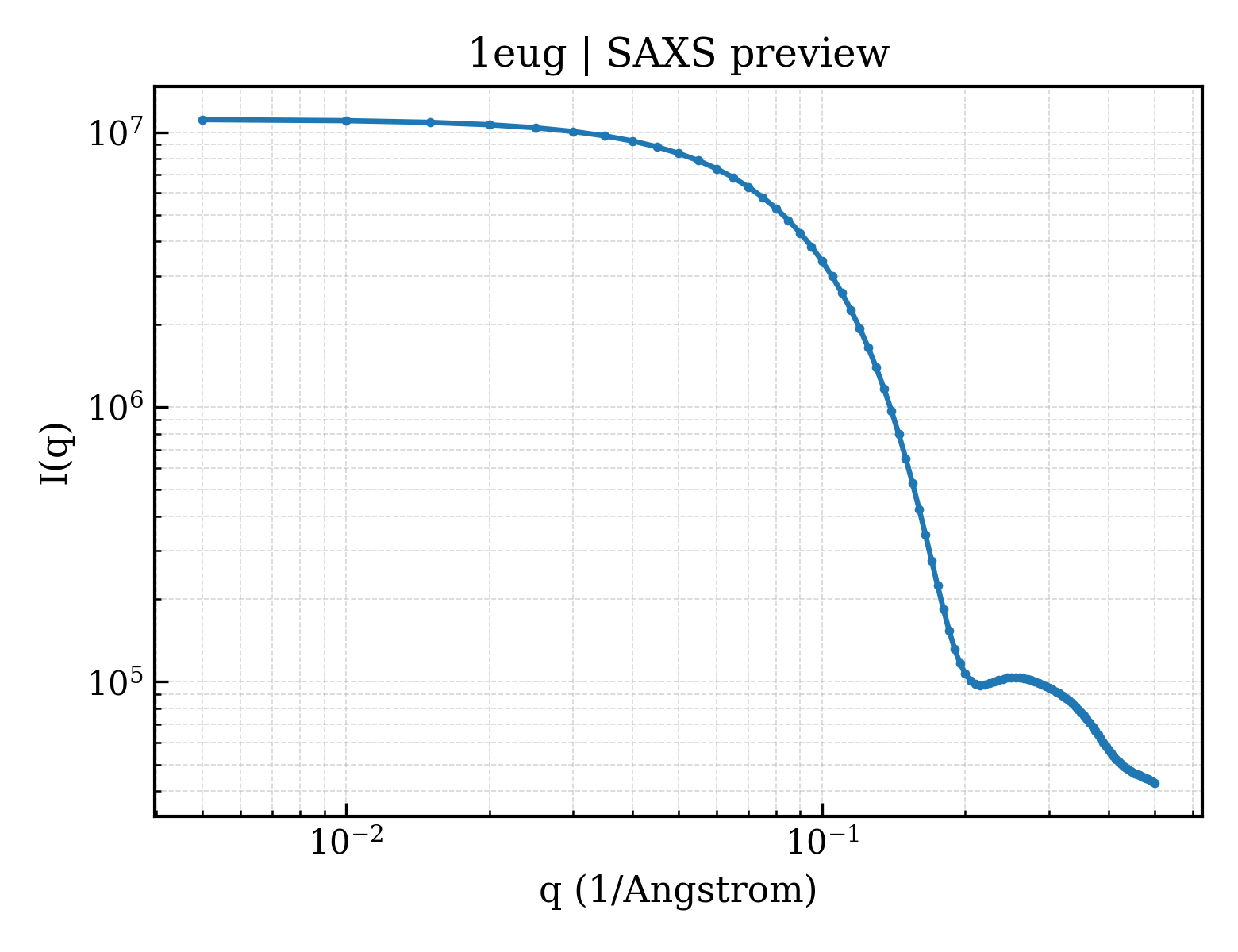

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1eug |
| deposition_date | 1998-10-12 |
| title | ;CRYSTAL STRUCTURE OF ESCHERICHIA COLI URACIL DNA GLYCOSYLASE AND ITS COMPLEXES WITH URACIL AND GLYCEROL: STRUCTURE AND GLYCOSYLASE MECHANISM REVISITED ; |
| keywords | GLYCOSYLASE, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.51 Å |
| rg_electron | 17.03 Å |
| i0 | 11142700.00 |
| molecular_weight | 25227.0 kDa |
| excluded_volume | 31718 ų |
| envelope_volume | 35701 ų |
| shell_volume | 17431 ų |
| envelope_diameter | 59.0 Å |
| shell_rg | 23.38 Å |
| envelope_rg | 17.40 Å |
| shape_rg | 17.01 Å |
| total_rg | 18.11 Å |
| total_atoms | 1790 |
| n_residues | 225 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.5 Å |
| rg_real | 18.40 Å |
| rg_real_error | 0.29 Å |
| i0_real | 1.1140e+07 |
| i0_real_error | 1.2790e+05 |
| rg_reciprocal | 18.42 Å |
| i0_reciprocal | 11140000.0000 |
| total_estimate | 0.8987 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.6 Å |
| skewness | 0.141 |
| kurtosis | -0.402 |
| angular_range | — – 0.4300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1597000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.906; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.974 |
