1evr
The structure of the resorcinol/insulin R6 hexamer
SAXS Profile

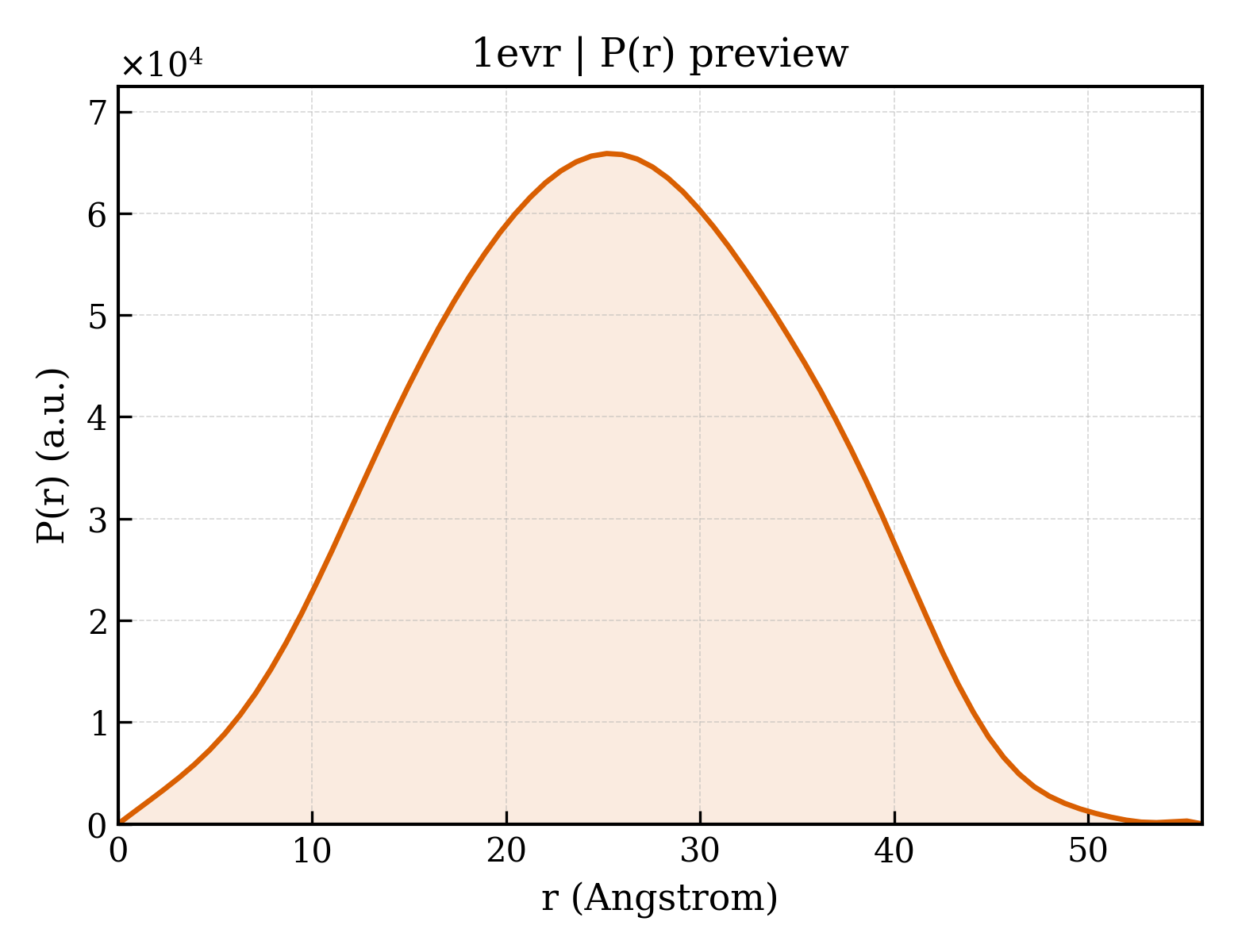

P(r) Distribution
1. Structure Basics
| entry_id | 1evr |
| deposition_date | 2000-04-20 |
| title | The structure of the resorcinol/insulin R6 hexamer |
| keywords | R6 Insulin Hexamer, HORMONE-GROWTH FACTOR COMPLEX; HORMONE/GROWTH FACTOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.37 Å |
| rg_electron | 18.13 Å |
| i0 | 21543100.00 |
| molecular_weight | 34519.0 kDa |
| excluded_volume | 42640 ų |
| envelope_volume | 49452 ų |
| shell_volume | 21888 ų |
| envelope_diameter | 57.2 Å |
| shell_rg | 25.17 Å |
| envelope_rg | 18.23 Å |
| shape_rg | 18.15 Å |
| total_rg | 19.00 Å |
| total_atoms | 2397 |
| n_residues | 299 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 55.9 Å |
| rg_real | 19.17 Å |
| rg_real_error | 0.17 Å |
| i0_real | 2.1540e+07 |
| i0_real_error | 2.0720e+05 |
| rg_reciprocal | 19.20 Å |
| i0_reciprocal | 21540000.0000 |
| total_estimate | 0.9062 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 25.2 Å |
| skewness | -0.009 |
| kurtosis | -0.541 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9239000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.981 |
