1ezc
AMINO TERMINAL DOMAIN OF ENZYME I FROM ESCHERICHIA COLI, NMR, 17 STRUCTURES
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ezc |
| deposition_date | 1997-01-01 |
| title | AMINO TERMINAL DOMAIN OF ENZYME I FROM ESCHERICHIA COLI, NMR, 17 STRUCTURES |
| keywords | PHOSPHOTRANSFERASE, KINASE, SUGAR TRANSPORT; PHOSPHOTRANSFERASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.99 Å |
| rg_electron | 22.93 Å |
| i0 | 3172050000.00 |
| molecular_weight | 481600.0 kDa |
| excluded_volume | 605100 ų |
| envelope_volume | 75948 ų |
| shell_volume | 25424 ų |
| envelope_diameter | 100.7 Å |
| shell_rg | 31.68 Å |
| envelope_rg | 28.29 Å |
| shape_rg | 22.91 Å |
| total_rg | 23.11 Å |
| total_atoms | 68459 |
| n_residues | 4403 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

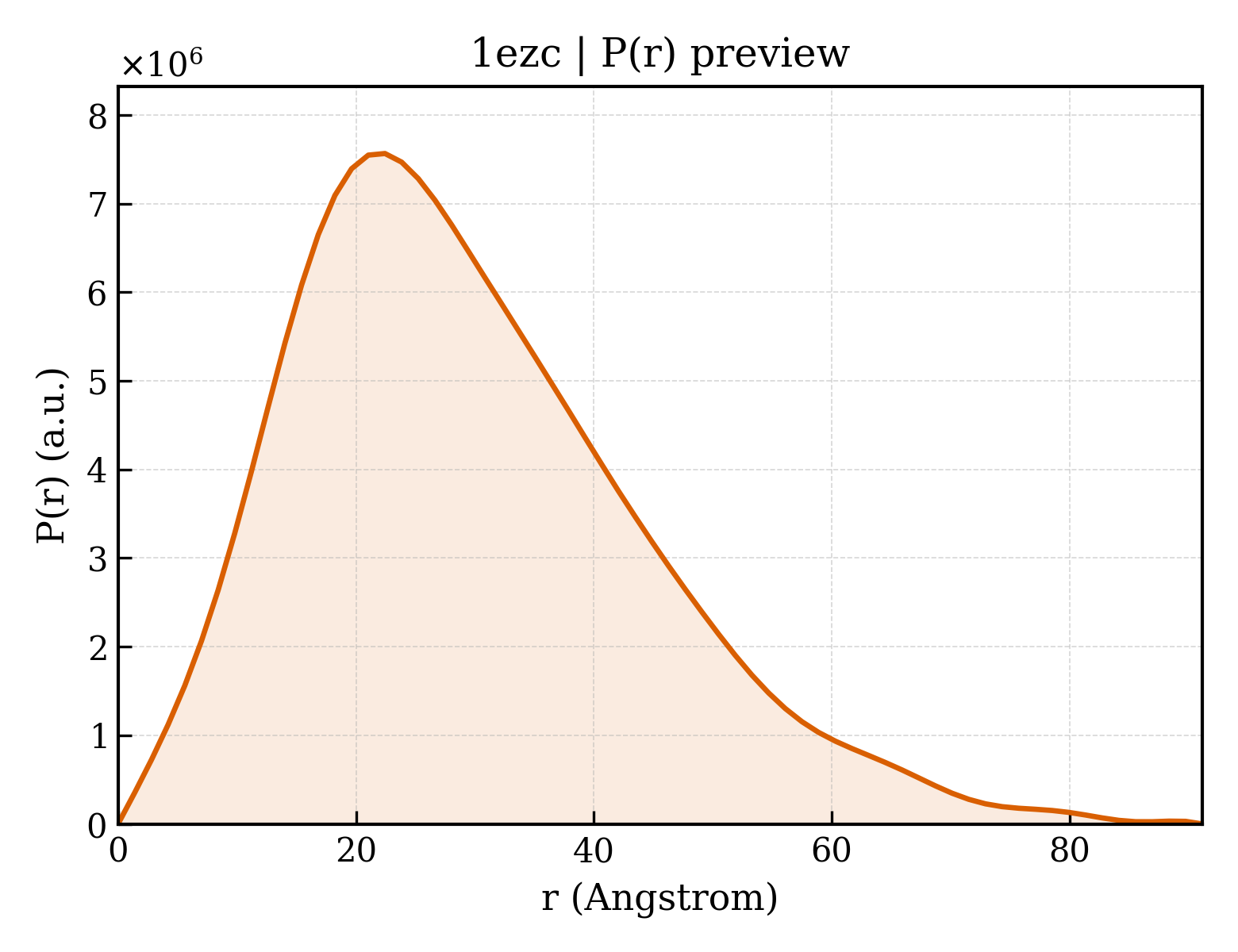

3. P(r) Analysis (GNOM)
| dmax | 91.2 Å |
| rg_real | 23.27 Å |
| rg_real_error | 0.95 Å |
| i0_real | 3.1720e+09 |
| i0_real_error | 4.9050e+07 |
| rg_reciprocal | 23.20 Å |
| i0_reciprocal | 3172000000.0000 |
| total_estimate | 0.7427 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 22.4 Å |
| skewness | 0.714 |
| kurtosis | 0.364 |
| angular_range | — – 0.3450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2652000.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.416; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.404; Smooth: 0.999 |
