1ezj
CRYSTAL STRUCTURE OF THE MULTIMERIZATION DOMAIN OF THE PHOSPHOPROTEIN FROM SENDAI VIRUS

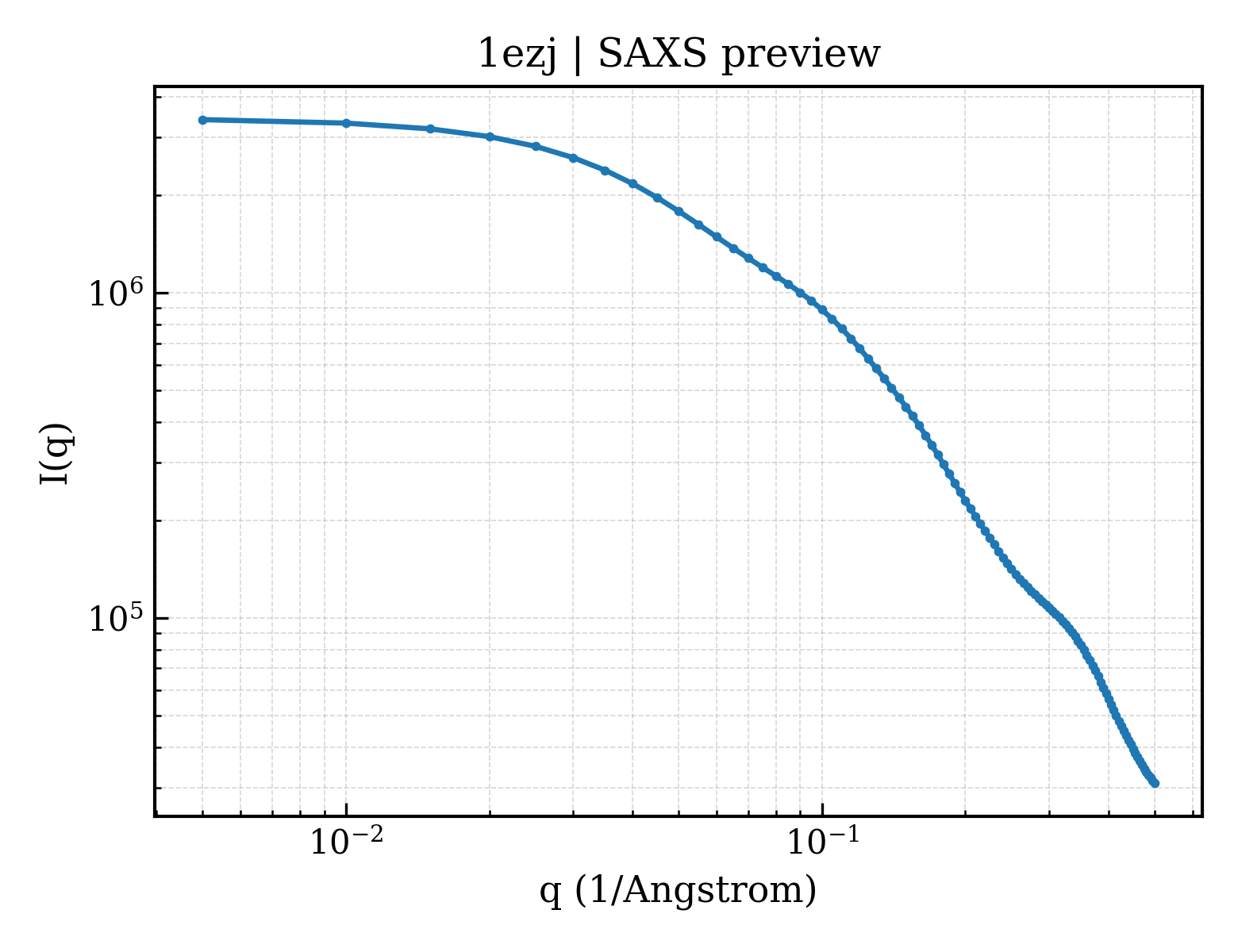

SAXS Profile

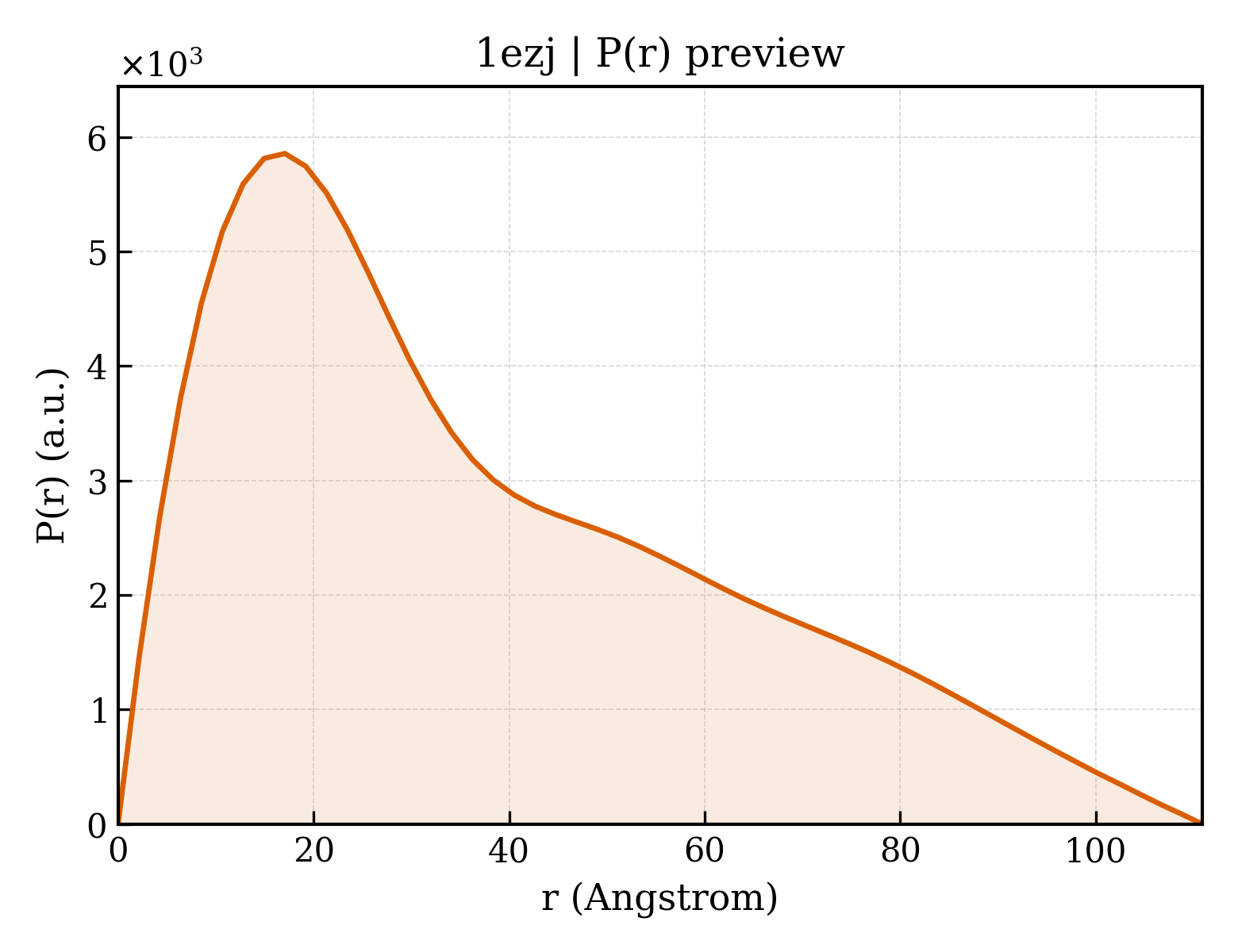

P(r) Distribution
1. Structure Basics
| entry_id | 1ezj |
| deposition_date | 2000-05-11 |
| title | CRYSTAL STRUCTURE OF THE MULTIMERIZATION DOMAIN OF THE PHOSPHOPROTEIN FROM SENDAI VIRUS |
| keywords | Four stranded coiled coil, viral polymerase, Sendai virus, tetramer, Viral protein, transferase; Viral protein, transferase |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 30.39 Å |
| rg_electron | 32.09 Å |
| i0 | 3436230.00 |
| molecular_weight | 13238.0 kDa |
| excluded_volume | 16271 ų |
| envelope_volume | 25089 ų |
| shell_volume | 8711 ų |
| envelope_diameter | 110.9 Å |
| shell_rg | 29.07 Å |
| envelope_rg | 32.93 Å |
| shape_rg | 32.12 Å |
| total_rg | 31.60 Å |
| total_atoms | 912 |
| n_residues | 114 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 110.9 Å |
| rg_real | 31.67 Å |
| rg_real_error | 0.56 Å |
| i0_real | 3.4410e+06 |
| i0_real_error | 4.2440e+04 |
| rg_reciprocal | 31.04 Å |
| i0_reciprocal | 3435000.0000 |
| total_estimate | 0.4008 |
| solution_quality | SUSPICIOUS a SUSPICIOUS solution |
| n_peaks | 1 |
| r_peak_primary | 17.1 Å |
| skewness | 0.722 |
| kurtosis | -0.414 |
| angular_range | — – 0.2600 Å−1 |
| current_alpha | 2.4800 |
| highest_alpha | 119800.0000 |
| n_real_points | 53 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.079; Stabil: 0.933; Sysdev: 0.000; Positv: 1.000; Valcen: 0.002; Smooth: 0.173 |
