STRUCTURAL STUDIES OF ADENYLOSUCCINATE LYASES

Method: X-RAY DIFFRACTION D_max: 90.9 Å Quality: GOOD

SAXS Profile

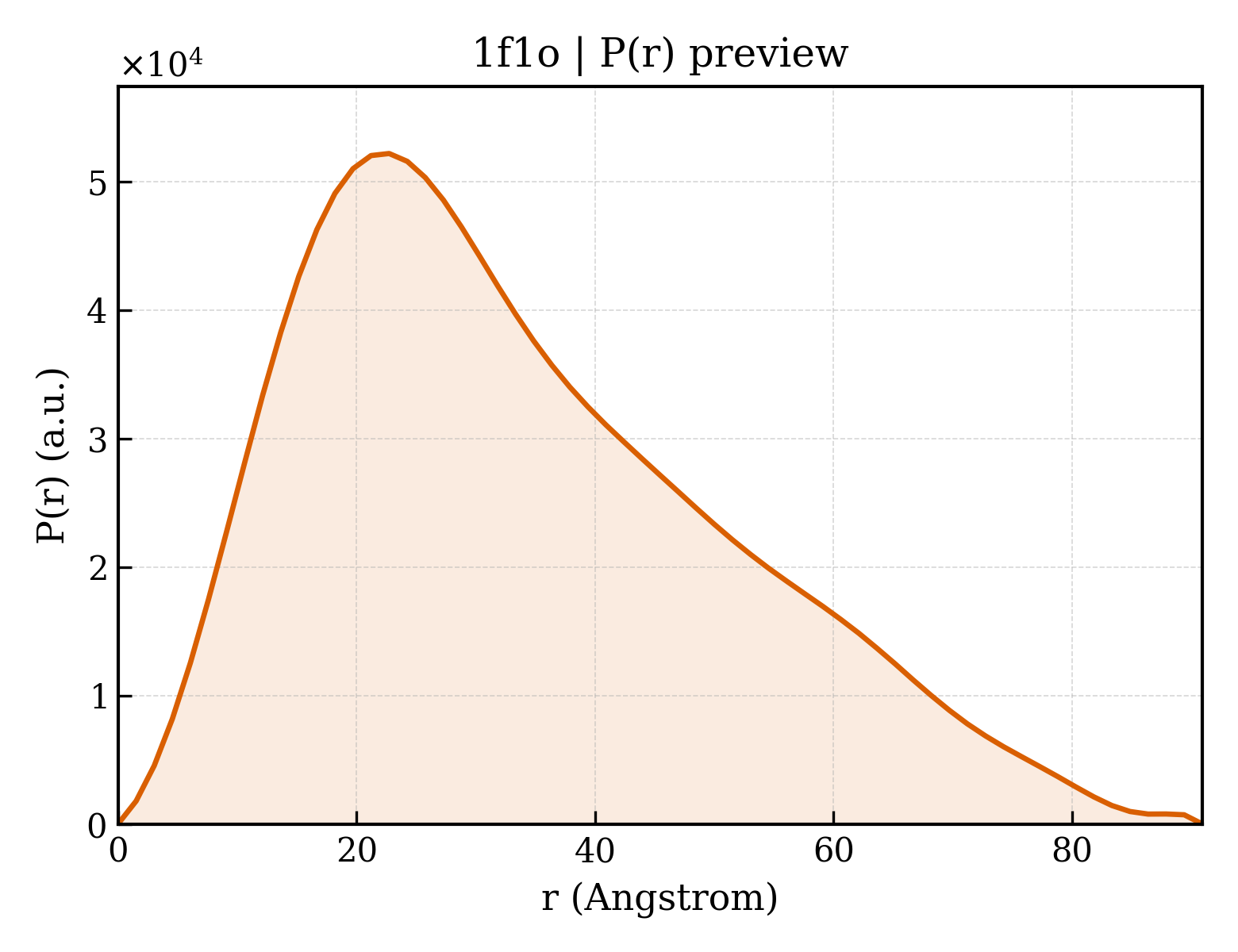

P(r) Distribution

▼

1. Structure Basics

entry_id	1f1o
deposition_date	2000-05-19
title	STRUCTURAL STUDIES OF ADENYLOSUCCINATE LYASES
keywords	purine biosynthesis, LYASE; LYASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	26.38 Å
rg_electron	26.63 Å
i0	25892200.00
molecular_weight	40432.0 kDa
excluded_volume	49582 Å³
envelope_volume	36795 Å³
shell_volume	14112 Å³
envelope_diameter	97.0 Å
shell_rg	28.21 Å
envelope_rg	25.84 Å
shape_rg	26.63 Å
total_rg	26.76 Å
total_atoms	—
n_residues	—
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	90.9 Å
rg_real	26.77 Å
rg_real_error	0.80 Å
i0_real	2.5890e+07
i0_real_error	3.9900e+05
rg_reciprocal	26.65 Å
i0_reciprocal	25890000.0000
total_estimate	0.7908
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	22.7 Å
skewness	0.614
kurtosis	-0.294
angular_range	— – 0.3000 Å⁻¹
current_alpha	0.0000
highest_alpha	3750000.0000
n_real_points	61
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.640; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.448; Smooth: 0.907

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

length_a	129.530 Å
length_b	129.530 Å
length_c	282.080 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 65 2 2
int_tables_number	179
crystal_system	—

resolution	3.250 Å
resolution_low	50.000 Å
r_factor	—
r_work	0.3360
r_free	0.3550

description	ADENYLOSUCCINATE LYASE
formula_weight	49553.7 kDa
ec_number	4.3.2.2
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	351

STRUCTURAL STUDIES OF ADENYLOSUCCINATE LYASES

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (1)

Entity 1 polymer

Polymer

Source

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Bacillus subtilis
ncbi_taxonomy_id	1423
host_organism	Escherichia coli

fit	/app/data/saxs_computation/f1/1f1o/1f1o.fit
pddf	/app/data/pr_computation/f1/1f1o/1f1o.pr.out
profile	/app/data/saxs_computation/f1/1f1o/1f1o.dat
