SAXSdb — 1f1r

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1f1r
沉积日期 deposition_date	2000-05-19
结构标题 title	CRYSTAL STRUCTURE OF HOMOPROTOCATECHUATE 2,3-DIOXYGENASE FROM ARTHROBACTER GLOBIFORMIS (NATIVE, NON-CRYO)
关键词 keywords	Dioxygenase, Extradiol, Manganese, Biodegradation, Aromatic, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	25.87 Å
回转半径 Rg (电子) rg_electron	24.92 Å
零角强度 I(0) i0	91169500.00
分子量 molecular_weight	73500.0 kDa
排除体积 excluded_volume	91219 Å³
包络体积 envelope_volume	104290 Å³
水化壳体积 shell_volume	33681 Å³
包络直径 envelope_diameter	82.8 Å
壳层 Rg shell_rg	33.23 Å
包络 Rg envelope_rg	25.10 Å
形状 Rg shape_rg	24.90 Å
总 Rg total_rg	25.85 Å
总原子数 total_atoms	5196
残基数 n_residues	642
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	79.1 Å
Rg (实空间) rg_real	25.76 Å
Rg 误差 (实空间) rg_real_error	0.46 Å
I(0) (实空间) i0_real	9.1170e+07
I(0) 误差 (实空间) i0_real_error	1.2470e+06
Rg (倒空间) rg_reciprocal	25.79 Å
I(0) (倒空间) i0_reciprocal	91170000.0000
解质量估计 total_estimate	0.9055
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	76.5 Å
偏度 Skewness skewness	0.226
峰度 Kurtosis kurtosis	-0.461
角度范围 angular_range	— – 0.3050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	30070000.0000
实空间数据点数 n_real_points	62
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.991

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	HOMOPROTOCATECHUATE 2,3-DIOXYGENASE
分子量 formula_weight	36992.2 kDa
EC 编号 ec_number	1.13.11.15
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	5547

MTNFVPTPSVPAPDIVRCAYMEIVVTDLAKSREFYVDVLGLHVTEEDENTIYLRSLEEFIHHNLVLRQGPIAAVAAFAYRVKSPAEVDAAEAYYKELGCRTERRKEGFTKGIGDSVRVEDPLGFPYEFFYETEHVERLTQRYDLYSAGELVRLDHFNQVTPDVPRGRAYLEDLGFRVSEDIKDSDGVTYAAWMHRKQTVHDTALTGGNGPRMHHVAFATHEKHNIIQICDKMGALRISDRIERGPGRHGVSNAFYLYILDPDGHRIEIYTQDYYTGDPDNPTITWDVHDNQRRDWWGNPVVPSWYTEASLVLDLDGNPQPVIV

来源 Source

来源生物 organism	Arthrobacter globiformis
NCBI 分类编号 ncbi_taxonomy_id	1665
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	MANGANESE (II) ION
分子量 formula_weight	54.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	351

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1f1ra1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
超家族 Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
家族 Family family	d.32.1.3 — Extradiol dioxygenases

结构域编号 domain_id	d1f1ra2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
超家族 Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
家族 Family family	d.32.1.3 — Extradiol dioxygenases

结构域编号 domain_id	d1f1rb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
超家族 Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
家族 Family family	d.32.1.3 — Extradiol dioxygenases

结构域编号 domain_id	d1f1rb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
超家族 Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
家族 Family family	d.32.1.3 — Extradiol dioxygenases

CATH v4.4 (4 domains)

结构域编号 domain_id	1f1rA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

结构域编号 domain_id	1f1rA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

结构域编号 domain_id	1f1rB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

结构域编号 domain_id	1f1rB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

▶

7. 引用文献 (5)

▶

晶胞边长 a length_a	138.440 Å
晶胞边长 b length_b	59.150 Å
晶胞边长 c length_c	102.800 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	118.26 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1560
R_work r_work	0.1560
R_free r_free	0.1870

fit	/app/data/saxs_computation/f1/1f1r/1f1r.fit
pddf	/app/data/pr_computation/f1/1f1r/1f1r.pr.out
profile	/app/data/saxs_computation/f1/1f1r/1f1r.dat

CRYSTAL STRUCTURE OF HOMOPROTOCATECHUATE 2,3-DIOXYGENASE FROM ARTHROBACTER GLOBIFORMIS (NATIVE, NON-CRYO)

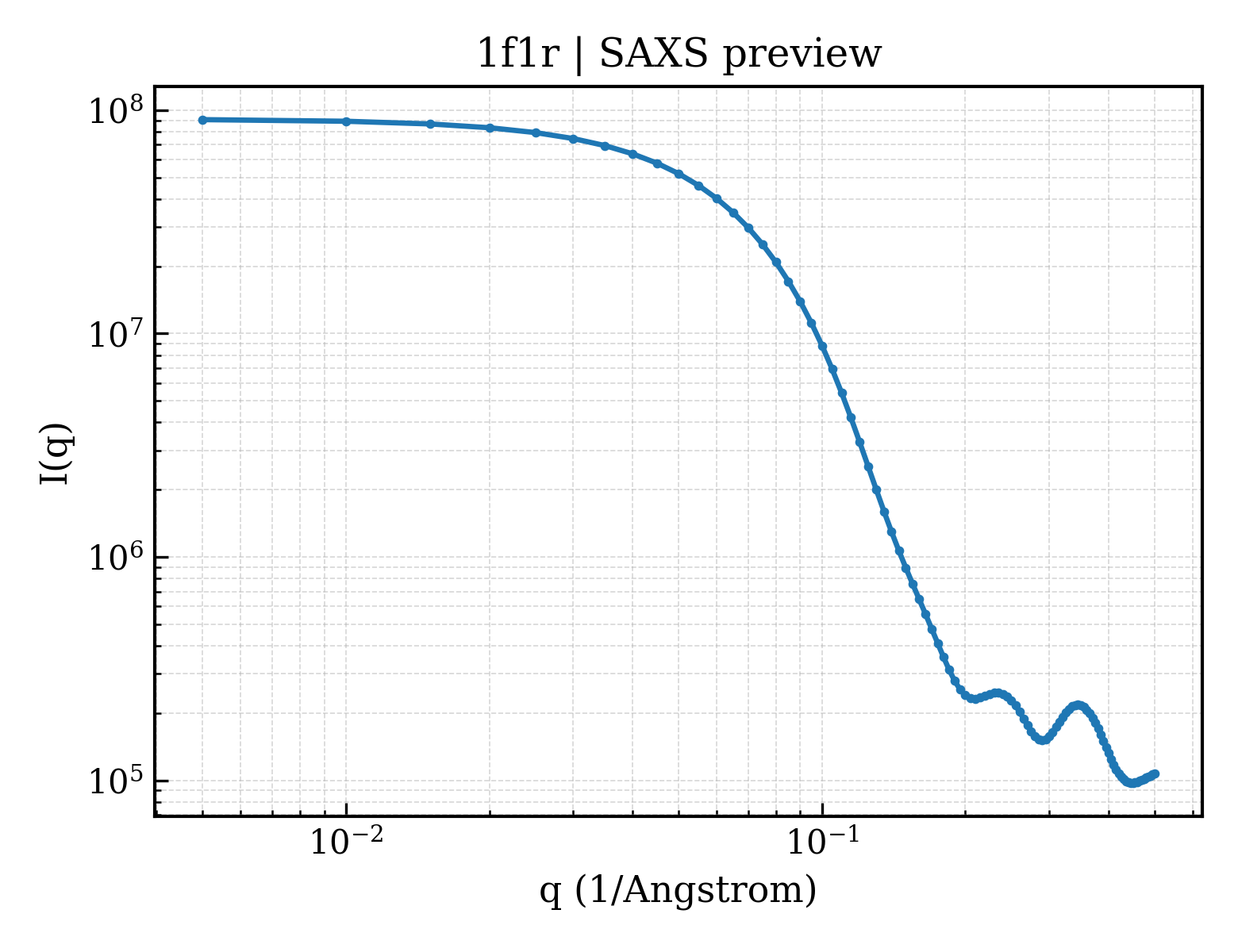

SAXS 散射曲线 SAXS Profile

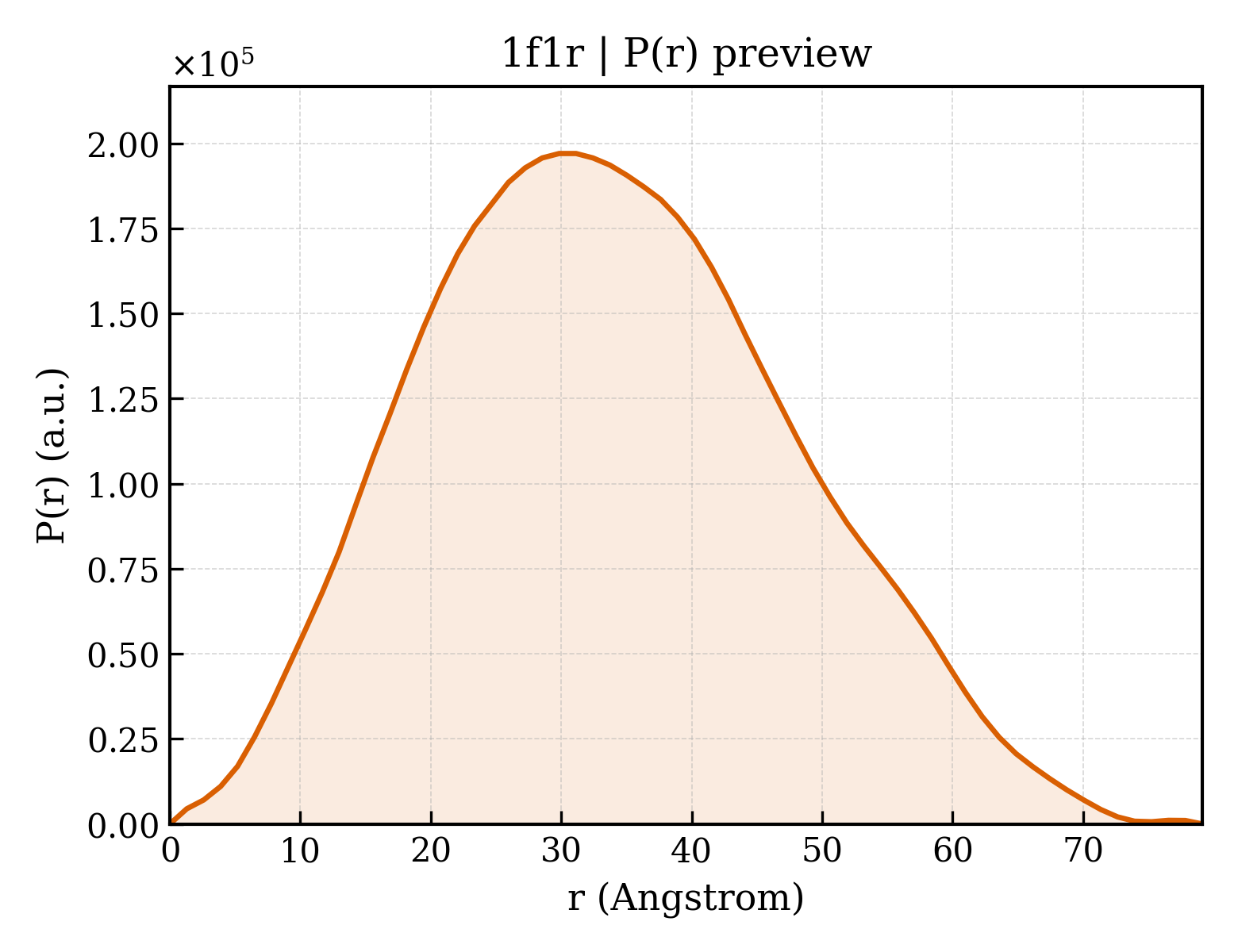

P(r) 距离分布 P(r) Distribution
