CRYSTAL STRUCTURE ANALYSIS OF CRUZAIN BOUND TO VINYL SULFONE DERIVED INHIBITOR (III)

Method: X-RAY DIFFRACTION D_max: 54.7 Å Quality: GOOD

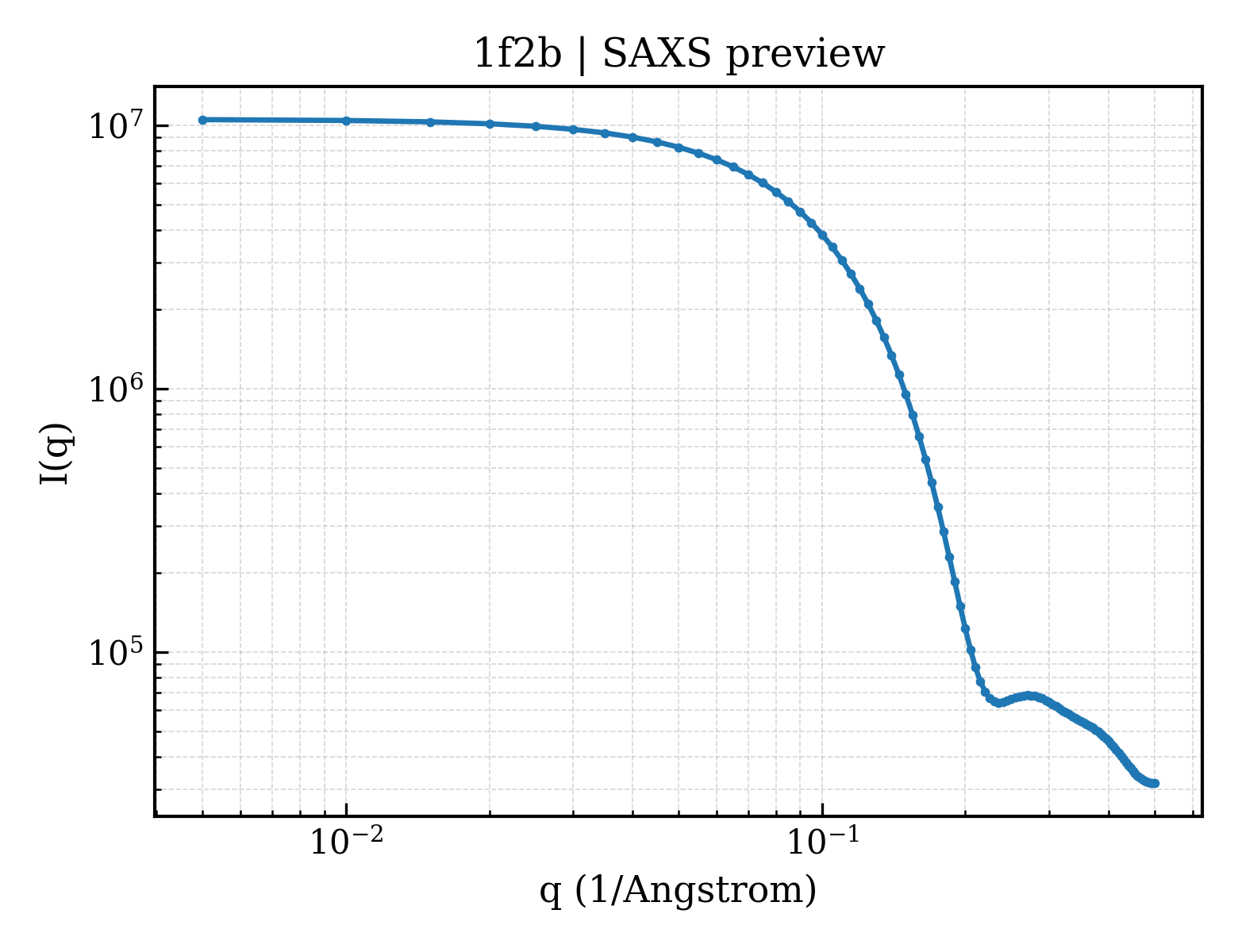

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1f2b
deposition_date	2000-05-23
title	CRYSTAL STRUCTURE ANALYSIS OF CRUZAIN BOUND TO VINYL SULFONE DERIVED INHIBITOR (III)
keywords	;cysteine protease, covalent inhibitor, vinyl sulfone-derived, P1' pocket, HYDROLASE ;; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	17.11 Å
rg_electron	15.98 Å
i0	10514600.00
molecular_weight	23335.0 kDa
excluded_volume	28758 Å³
envelope_volume	31367 Å³
shell_volume	16244 Å³
envelope_diameter	56.0 Å
shell_rg	22.30 Å
envelope_rg	16.28 Å
shape_rg	15.97 Å
total_rg	17.00 Å
total_atoms	1639
n_residues	215
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	54.7 Å
rg_real	17.00 Å
rg_real_error	0.35 Å
i0_real	1.0510e+07
i0_real_error	1.2010e+05
rg_reciprocal	17.01 Å
i0_reciprocal	10510000.0000
total_estimate	0.8035
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	22.3 Å
skewness	0.170
kurtosis	-0.375
angular_range	— – 0.4650 Å⁻¹
current_alpha	0.0000
highest_alpha	2603000.0000
n_real_points	77
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.827; Stabil: 0.989; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	CRUZAIN
formula_weight	22715.1 kDa
ec_number	3.4.22.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1705

APAAVDWRARGAVTAVKDQGQCGSCWAFSAIGNVECQWFLAGHPLTNLSEQMLVSCDKTDSGCSGGLMNNAFEWIVQENNGAVYTEDSYPYASGEGISPPCTTSGHTVGATITGHVELPQDEAQIAAWLAVNGPVAVAVDASSWMTYTGGVMTSCVSEQLDHGVLLVGYNDSAAVPYWIIKNSWTTQWGEEGYIRIAKGSNQCLVKEEASSAVVG

Source

organism	Trypanosoma cruzi
ncbi_taxonomy_id	5693
host_organism	Escherichia coli

Entity 2 non-polymer

description	3-[N-[BENZYLOXYCARBONYL]-PHENYLALANINYL-AMINO]-5-PHENYL-PENTANE-1-SULFONIC ACID 4-NITRO-PHENYL ESTER
formula_weight	645.7 kDa
src_method	syn
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	66

▶

6. Citations (2)

▶

length_a	45.180 Å
length_b	51.360 Å
length_c	45.560 Å
angle_alpha	90.00 °
angle_beta	116.17 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.800 Å
resolution_low	30.000 Å
r_factor	—
r_work	0.1730
r_free	0.2030
