1f2c

CRYSTAL STRUCTURE ANALYSIS OF CRYZAIN BOUND TO VINYL SULFONE DERIVED INHIBITOR (IV)

Method: X-RAY DIFFRACTION D_max: 50.9 Å Quality: REASONABLE

SAXS Profile

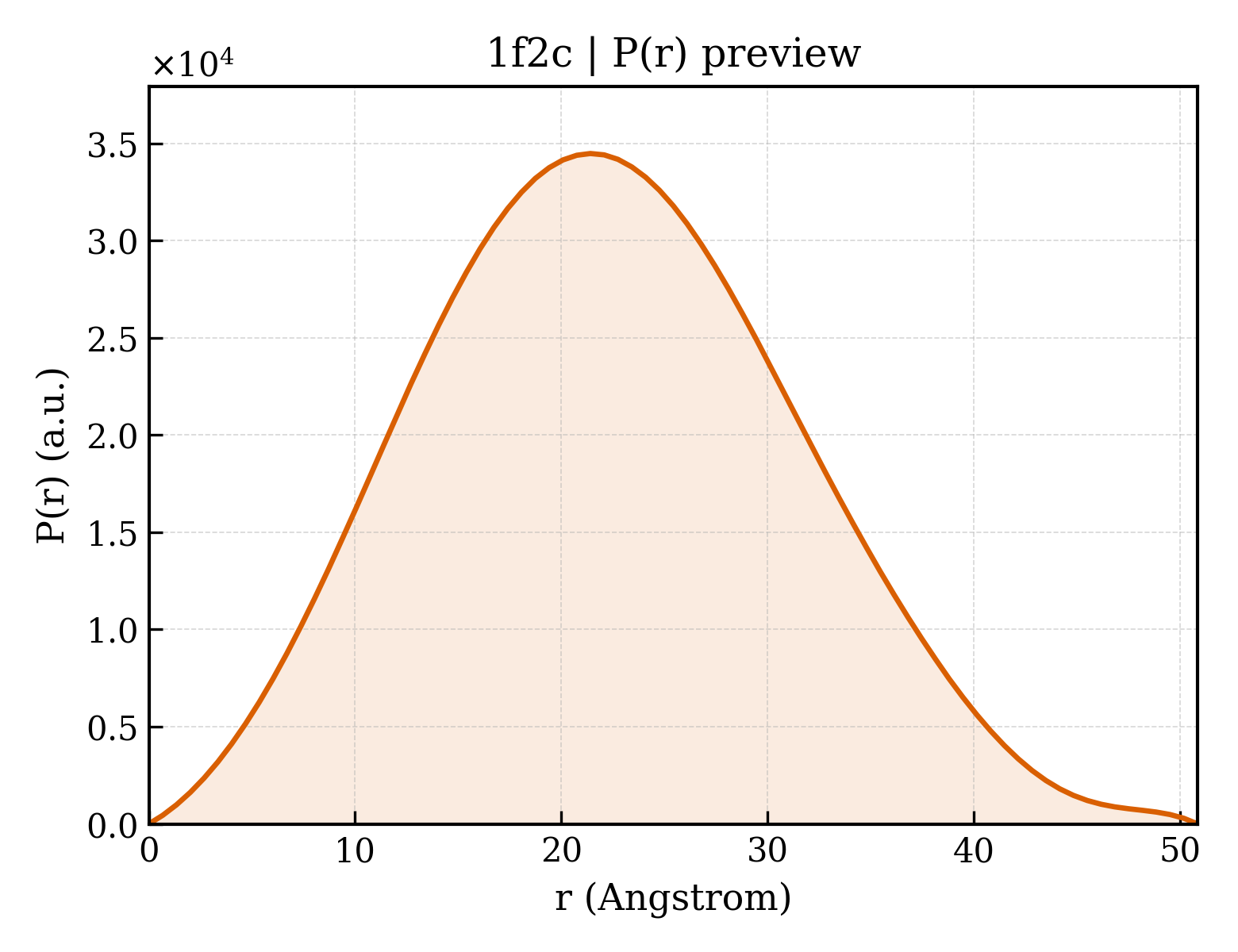

P(r) Distribution

▼

1. Structure Basics

entry_id	1f2c
deposition_date	2000-05-23
title	CRYSTAL STRUCTURE ANALYSIS OF CRYZAIN BOUND TO VINYL SULFONE DERIVED INHIBITOR (IV)
keywords	;cysteine protease, covalent inhibitor, vinyl sulfonamide derived, P1' pocket, HYDROLASE ;; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	17.09 Å
rg_electron	15.97 Å
i0	10479600.00
molecular_weight	23311.0 kDa
excluded_volume	28759 Å³
envelope_volume	31491 Å³
shell_volume	16293 Å³
envelope_diameter	56.1 Å
shell_rg	22.30 Å
envelope_rg	16.27 Å
shape_rg	15.96 Å
total_rg	16.99 Å
total_atoms	1637
n_residues	215
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	50.9 Å
rg_real	16.99 Å
rg_real_error	0.06 Å
i0_real	1.0130e+07
i0_real_error	8.1650e+04
rg_reciprocal	16.99 Å
i0_reciprocal	10480000.0000
total_estimate	0.7053
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	21.4 Å
skewness	0.176
kurtosis	-0.376
angular_range	— – 0.4650 Å⁻¹
current_alpha	11.1200
highest_alpha	2530000.0000
n_real_points	77
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.947; Stabil: 0.920; Sysdev: 0.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.602

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	CRUZAIN
formula_weight	22715.1 kDa
ec_number	3.4.22.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1724

APAAVDWRARGAVTAVKDQGQCGSCWAFSAIGNVECQWFLAGHPLTNLSEQMLVSCDKTDSGCSGGLMNNAFEWIVQENNGAVYTEDSYPYASGEGISPPCTTSGHTVGATITGHVELPQDEAQIAAWLAVNGPVAVAVDASSWMTYTGGVMTSCVSEQLDHGVLLVGYNDSAAVPYWIIKNSWTTQWGEEGYIRIAKGSNQCLVKEEASSAVVG

Source

organism	Trypanosoma cruzi
ncbi_taxonomy_id	5693
host_organism	Escherichia coli

Entity 2 non-polymer

description	3-[[N-[4-METHYL-PIPERAZINYL]CARBONYL]-PHENYLALANINYL-AMINO]-5-PHENYL-PENTANE-1-SULFONIC ACID BENZYLOXY-AMIDE
formula_weight	621.8 kDa
src_method	syn
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	87

▶

6. Citations (2)

▶

length_a	36.020 Å
length_b	51.590 Å
length_c	54.160 Å
angle_alpha	90.00 °
angle_beta	99.74 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.000 Å
resolution_low	30.000 Å
r_factor	—
r_work	0.1760
r_free	0.2260
