1f2n
RICE YELLOW MOTTLE VIRUS
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1f2n |
| deposition_date | 2000-05-26 |
| title | RICE YELLOW MOTTLE VIRUS |
| keywords | PLANT VIRUS, CAPSID PROTEIN, COAT PROTEIN, BETA-ANNULUS, DOMAIN SWAPPING, Icosahedral virus, Virus; VIRUS |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.62 Å |
| rg_electron | 28.10 Å |
| i0 | 67510000.00 |
| molecular_weight | 64587.0 kDa |
| excluded_volume | 80836 ų |
| envelope_volume | 97973 ų |
| shell_volume | 29991 ų |
| envelope_diameter | 111.8 Å |
| shell_rg | 34.19 Å |
| envelope_rg | 29.19 Å |
| shape_rg | 28.12 Å |
| total_rg | 28.66 Å |
| total_atoms | 4531 |
| n_residues | 590 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

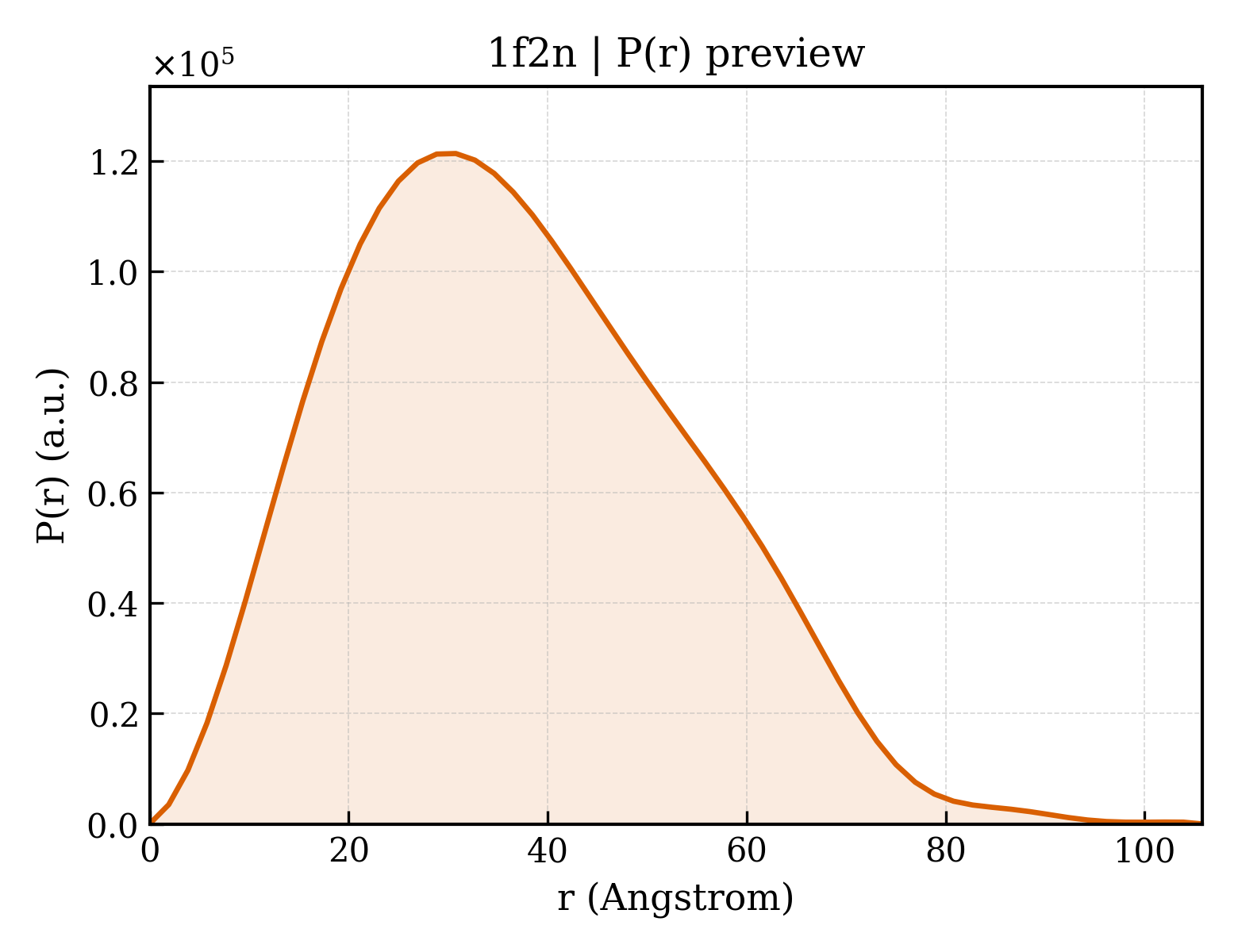

3. P(r) Analysis (GNOM)
| dmax | 105.8 Å |
| rg_real | 28.69 Å |
| rg_real_error | 1.11 Å |
| i0_real | 6.7510e+07 |
| i0_real_error | 1.1170e+06 |
| rg_reciprocal | 28.66 Å |
| i0_reciprocal | 67510000.0000 |
| total_estimate | 0.8310 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 30.8 Å |
| skewness | 0.392 |
| kurtosis | -0.326 |
| angular_range | — – 0.2750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10530000.0000 |
| n_real_points | 56 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.695; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.712; Smooth: 1.000 |
