1f5s
CRYSTAL STRUCTURE OF PHOSPHOSERINE PHOSPHATASE FROM METHANOCOCCUS JANNASCHII
SAXS Profile

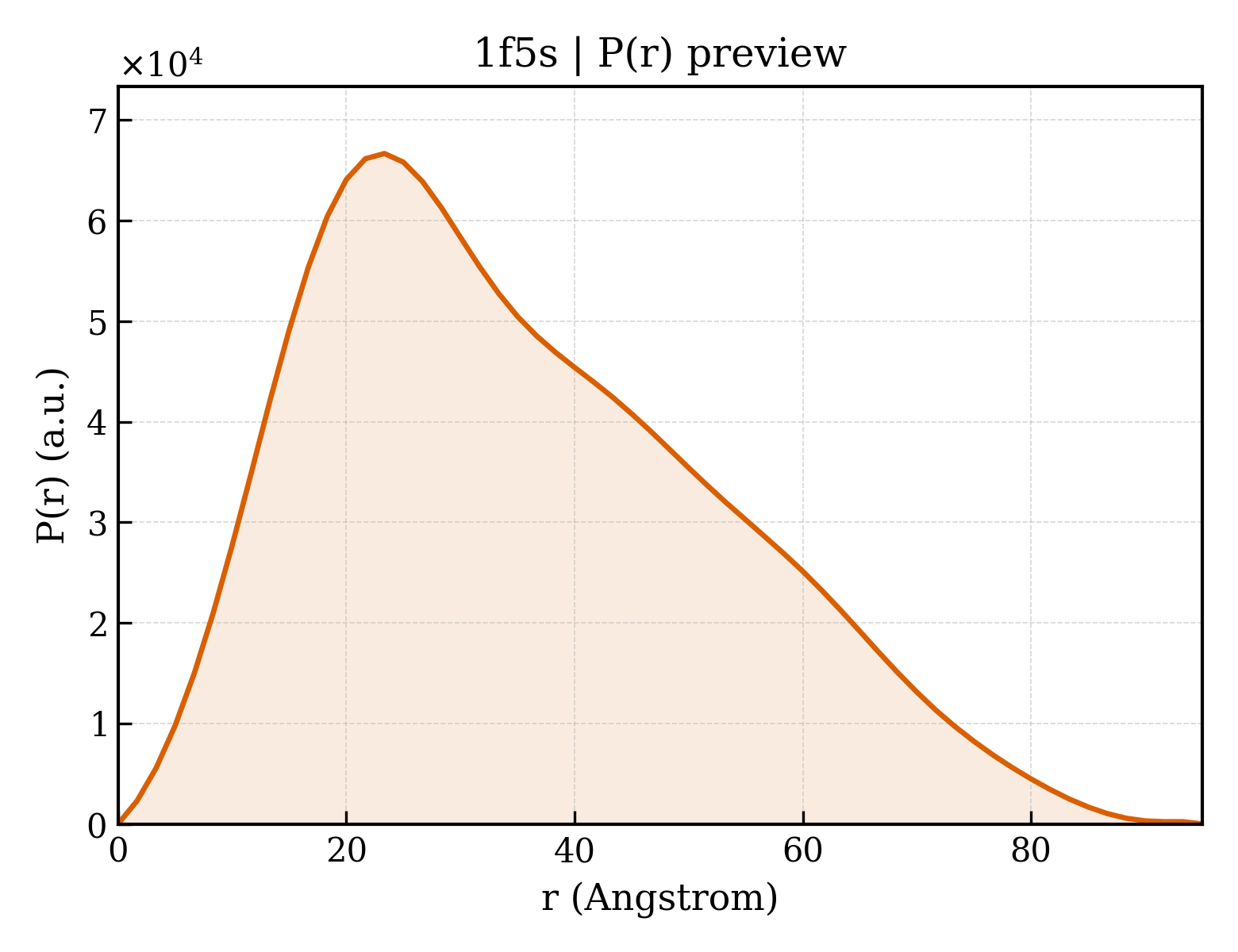

P(r) Distribution
1. Structure Basics
| entry_id | 1f5s |
| deposition_date | 2000-06-15 |
| title | CRYSTAL STRUCTURE OF PHOSPHOSERINE PHOSPHATASE FROM METHANOCOCCUS JANNASCHII |
| keywords | ;NAD(P)-binding Rossmann fold, four helix bundle, beta-hair pin, HAD family hydrolase, Structural Genomics, BSGC structure funded by NIH, Protein Structure Initiative, PSI, Berkeley Structural Genomics Center, HYDROLASE ;; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.61 Å |
| rg_electron | 27.44 Å |
| i0 | 34549200.00 |
| molecular_weight | 47210.0 kDa |
| excluded_volume | 60033 ų |
| envelope_volume | 72915 ų |
| shell_volume | 23649 ų |
| envelope_diameter | 98.1 Å |
| shell_rg | 32.55 Å |
| envelope_rg | 27.61 Å |
| shape_rg | 27.42 Å |
| total_rg | 28.08 Å |
| total_atoms | 3308 |
| n_residues | 419 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 95.0 Å |
| rg_real | 27.91 Å |
| rg_real_error | 0.66 Å |
| i0_real | 3.4550e+07 |
| i0_real_error | 4.9310e+05 |
| rg_reciprocal | 27.82 Å |
| i0_reciprocal | 34550000.0000 |
| total_estimate | 0.8096 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 23.3 Å |
| skewness | 0.510 |
| kurtosis | -0.452 |
| angular_range | — – 0.2850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 24060000.0000 |
| n_real_points | 58 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.657; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.626; Smooth: 0.925 |
