1f5v
;STRUCTURE AND SITE-DIRECTED MUTAGENESIS OF A FLAVOPROTEIN FROM ESCHERICHIA COLI THAT REDUCES NITROCOMPOUNDS. ALTERATION OF PYRIDINE NUCLEOTIDE BINDING BY A SINGLE AMINO ACID SUBSTITUTION ;

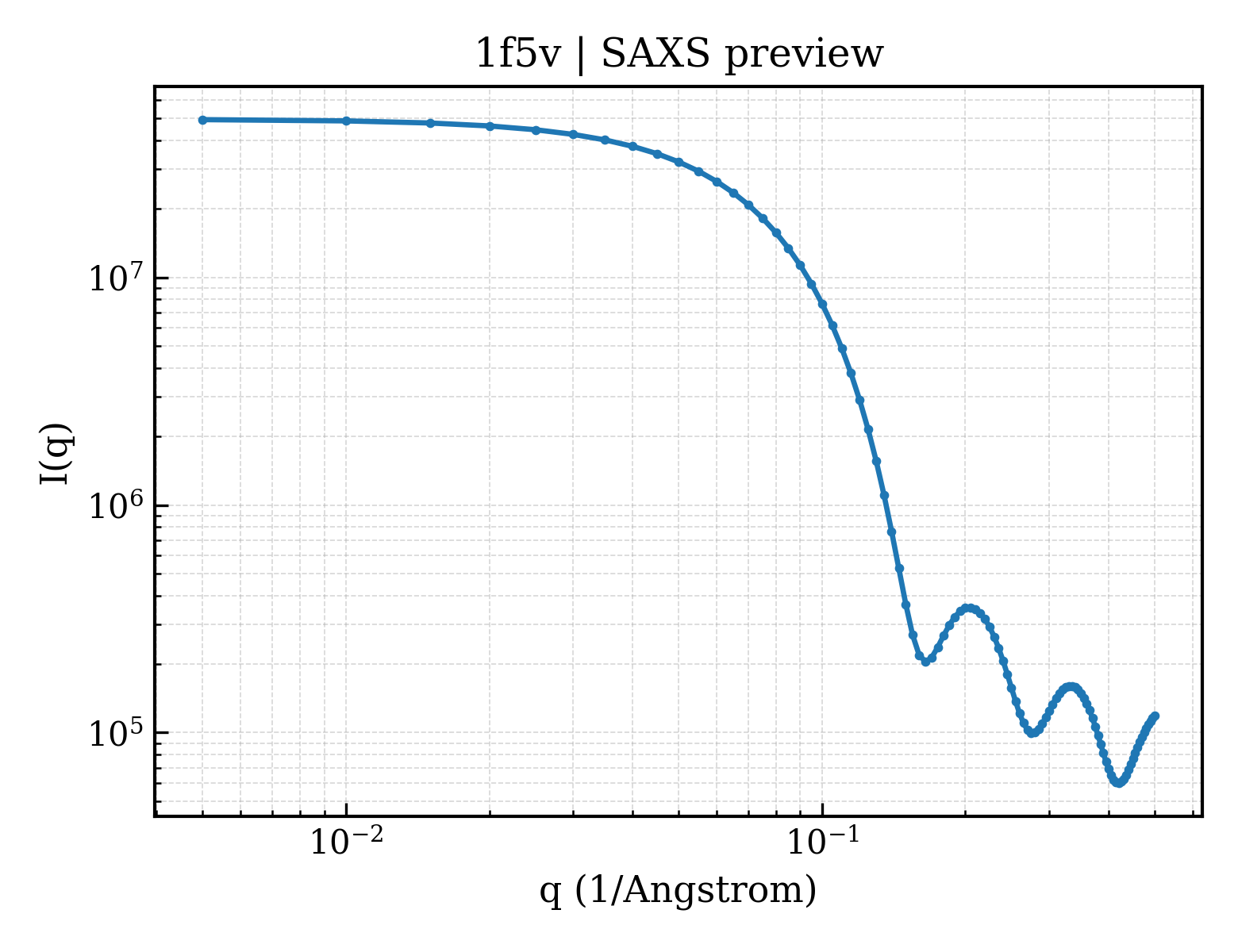

SAXS Profile

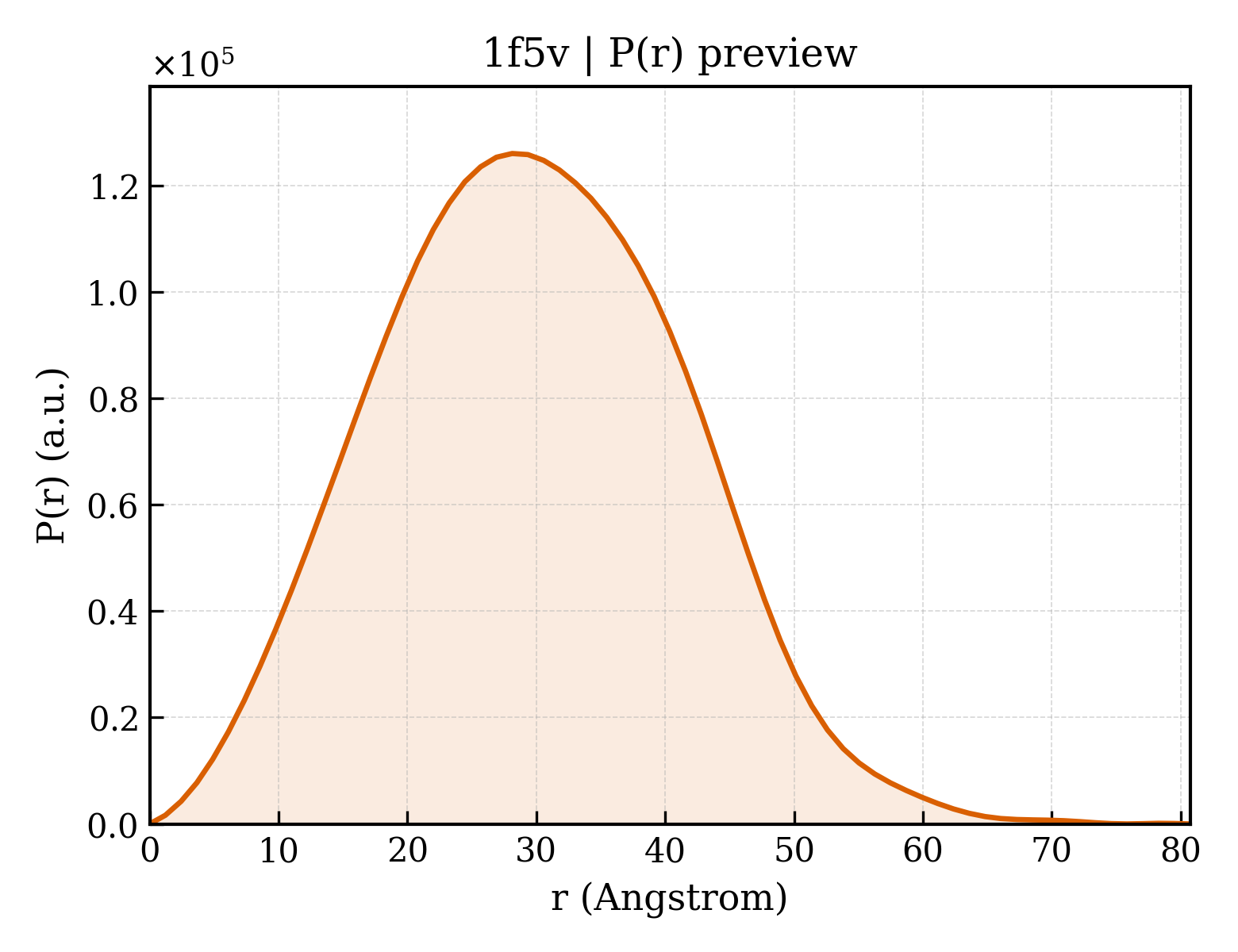

P(r) Distribution
1. Structure Basics
| entry_id | 1f5v |
| deposition_date | 2000-06-17 |
| title | ;STRUCTURE AND SITE-DIRECTED MUTAGENESIS OF A FLAVOPROTEIN FROM ESCHERICHIA COLI THAT REDUCES NITROCOMPOUNDS. ALTERATION OF PYRIDINE NUCLEOTIDE BINDING BY A SINGLE AMINO ACID SUBSTITUTION ; |
| keywords | nitroreductase, flavoprotein, Escherichia coli, oxidoreduction, nitrocompound, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.68 Å |
| rg_electron | 21.38 Å |
| i0 | 49505400.00 |
| molecular_weight | 54510.0 kDa |
| excluded_volume | 68081 ų |
| envelope_volume | 76568 ų |
| shell_volume | 28491 ų |
| envelope_diameter | 80.0 Å |
| shell_rg | 29.52 Å |
| envelope_rg | 21.77 Å |
| shape_rg | 21.39 Å |
| total_rg | 22.23 Å |
| total_atoms | 3836 |
| n_residues | 480 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 80.7 Å |
| rg_real | 22.53 Å |
| rg_real_error | 0.51 Å |
| i0_real | 4.9510e+07 |
| i0_real_error | 6.5530e+05 |
| rg_reciprocal | 22.57 Å |
| i0_reciprocal | 49510000.0000 |
| total_estimate | 0.8361 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 28.1 Å |
| skewness | 0.165 |
| kurtosis | -0.279 |
| angular_range | — – 0.3500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 15220000.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.622; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.999 |
