1f63
CRYSTAL STRUCTURE OF DEOXY SPERM WHALE MYOGLOBIN MUTANT Y(B10)Q(E7)R(E10)
SAXS Profile

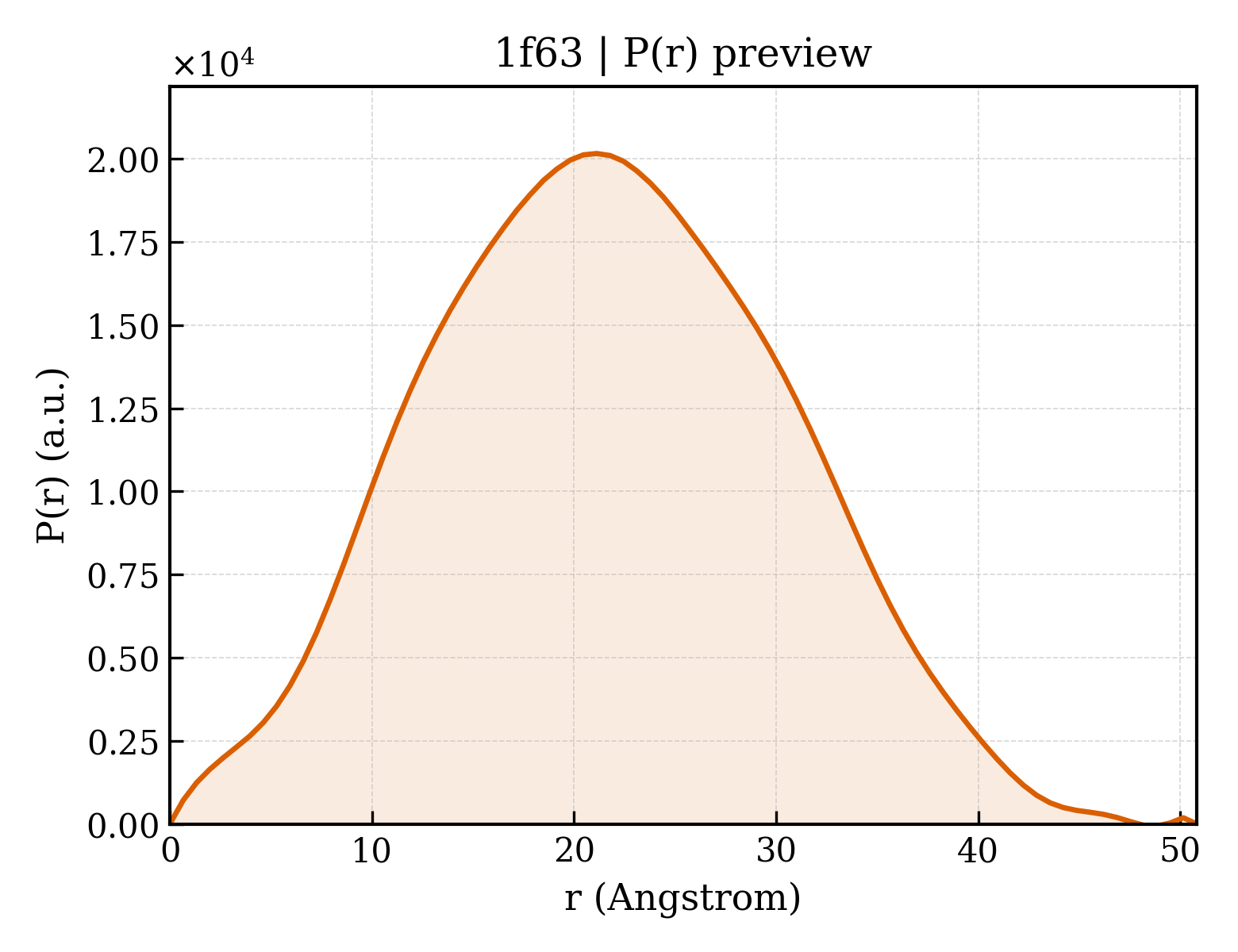

P(r) Distribution
1. Structure Basics
| entry_id | 1f63 |
| deposition_date | 2000-06-20 |
| title | CRYSTAL STRUCTURE OF DEOXY SPERM WHALE MYOGLOBIN MUTANT Y(B10)Q(E7)R(E10) |
| keywords | myoglobin, heme, triple mutant, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.64 Å |
| rg_electron | 15.22 Å |
| i0 | 5856000.00 |
| molecular_weight | 18143.0 kDa |
| excluded_volume | 22962 ų |
| envelope_volume | 25420 ų |
| shell_volume | 14137 ų |
| envelope_diameter | 51.3 Å |
| shell_rg | 21.02 Å |
| envelope_rg | 15.43 Å |
| shape_rg | 15.18 Å |
| total_rg | 16.40 Å |
| total_atoms | 1280 |
| n_residues | 154 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.8 Å |
| rg_real | 16.51 Å |
| rg_real_error | 0.25 Å |
| i0_real | 5.8560e+06 |
| i0_real_error | 6.7060e+04 |
| rg_reciprocal | 16.52 Å |
| i0_reciprocal | 5856000.0000 |
| total_estimate | 0.8262 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.1 Å |
| skewness | 0.090 |
| kurtosis | -0.465 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 927400.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.920; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000 |
