1fnt

;CRYSTAL STRUCTURE OF THE 20S PROTEASOME FROM YEAST IN COMPLEX WITH THE PROTEASOME ACTIVATOR PA26 FROM TRYPANOSOME BRUCEI AT 3.2 ANGSTROMS RESOLUTION ;

Method: X-RAY DIFFRACTION D_max: 225.1 Å Quality: EXCELLENT

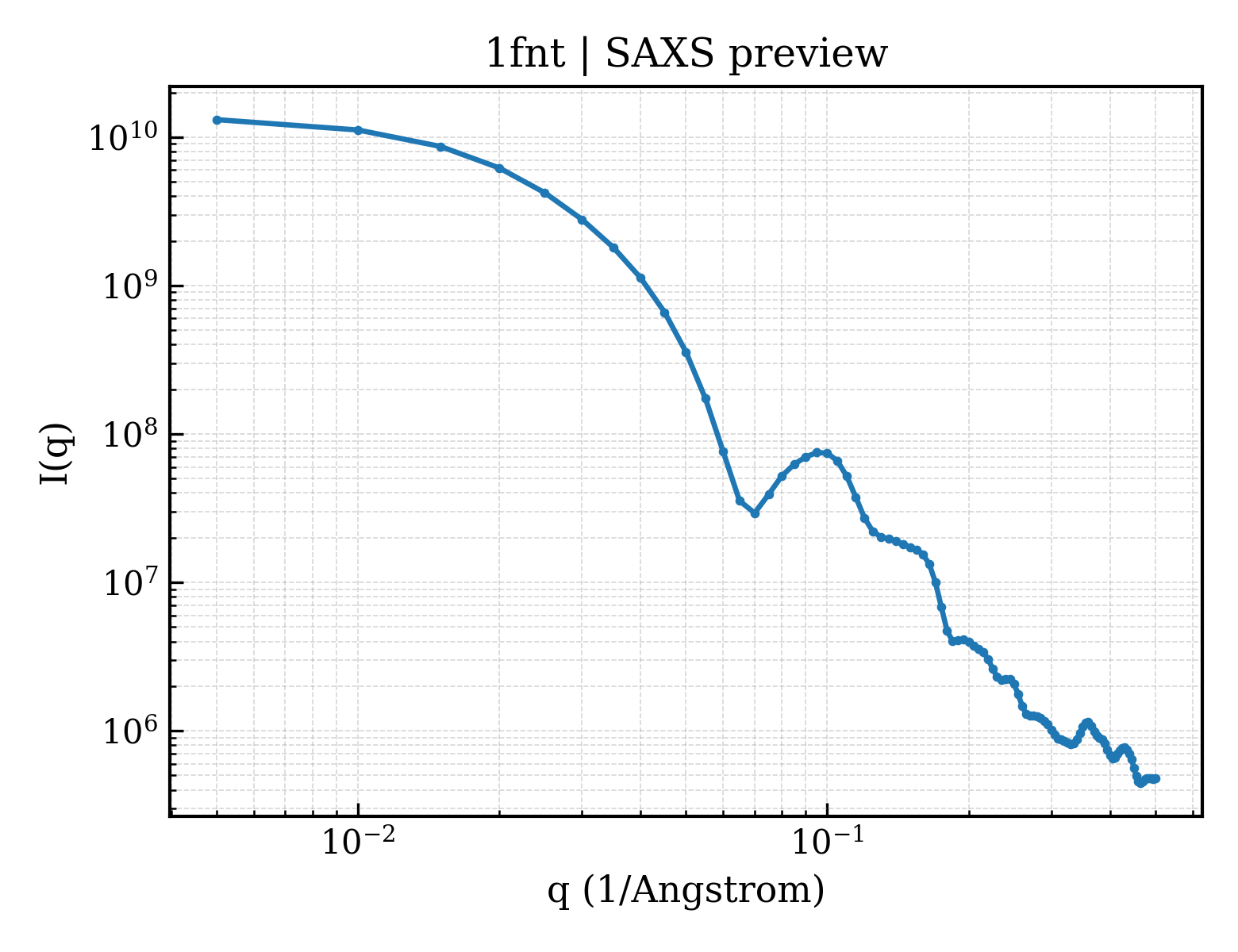

SAXS 散射曲线 SAXS Profile

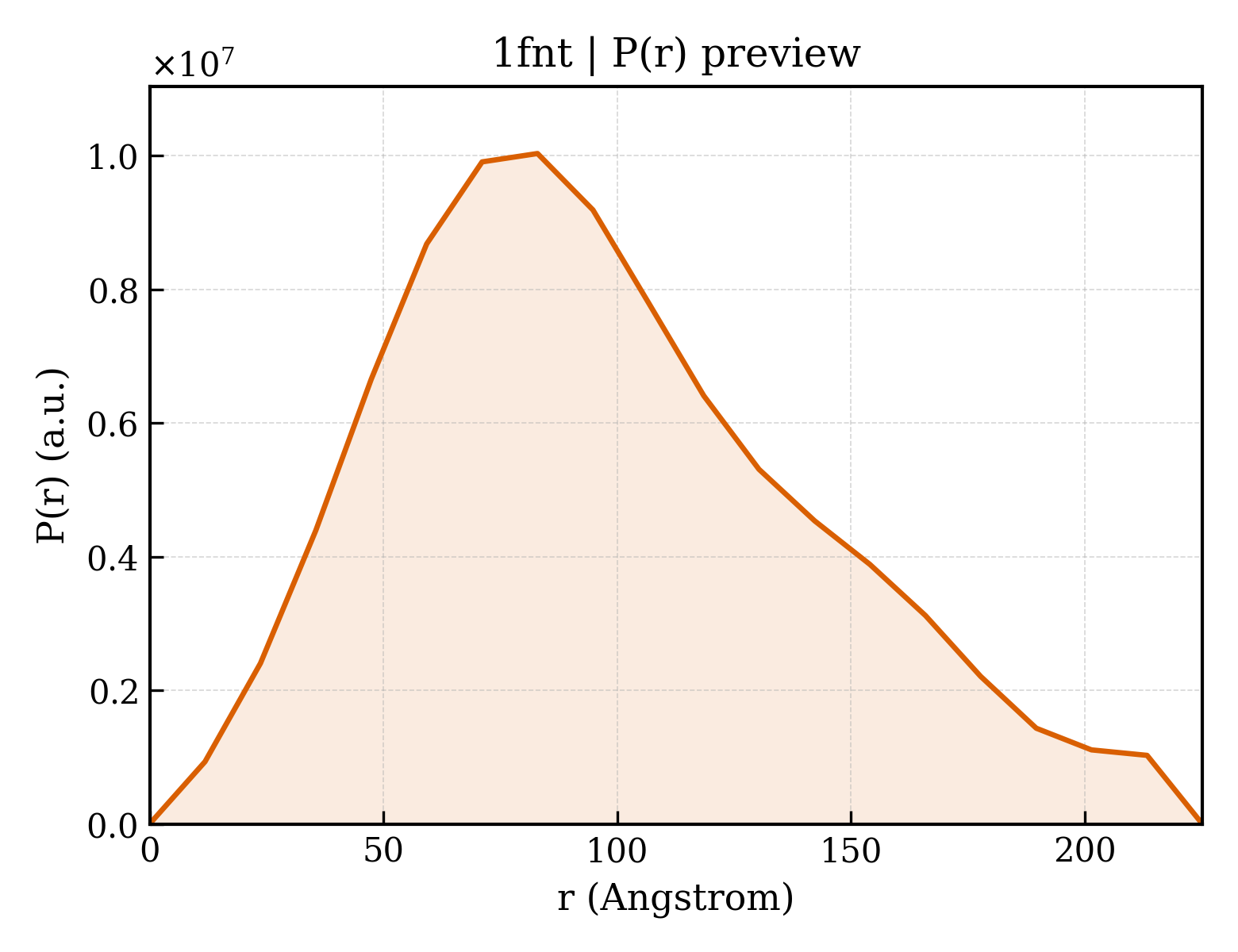

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1fnt
沉积日期 deposition_date	2000-08-23
结构标题 title	;CRYSTAL STRUCTURE OF THE 20S PROTEASOME FROM YEAST IN COMPLEX WITH THE PROTEASOME ACTIVATOR PA26 FROM TRYPANOSOME BRUCEI AT 3.2 ANGSTROMS RESOLUTION ;
关键词 keywords	;MULTICATALYTIC PROTEINASE, 20S PROTEASOME, PROTEIN DEGRADATION, ANTIGEN PROCESSING, PROTEASE, PROTEASOME ACTIVATOR, CELL ADHESION, INTERFERON INDUCTION, HYDROLASE-HYDROLASE ACTIVATOR COMPLEX ;; HYDROLASE/HYDROLASE ACTIVATOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	80.31 Å
回转半径 Rg (电子) rg_electron	81.06 Å
零角强度 I(0) i0	13849700000.00
分子量 molecular_weight	1003300.0 kDa
排除体积 excluded_volume	1257700 Å³
包络体积 envelope_volume	1960200 Å³
水化壳体积 shell_volume	209150 Å³
包络直径 envelope_diameter	303.5 Å
壳层 Rg shell_rg	75.46 Å
包络 Rg envelope_rg	80.87 Å
形状 Rg shape_rg	81.01 Å
总 Rg total_rg	81.19 Å
总原子数 total_atoms	70622
残基数 n_residues	9110
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	225.1 Å
Rg (实空间) rg_real	75.15 Å
Rg 误差 (实空间) rg_real_error	0.87 Å
I(0) (实空间) i0_real	1.3250e+10
I(0) 误差 (实空间) i0_real_error	2.3820e+08
Rg (倒空间) rg_reciprocal	77.68 Å
I(0) (倒空间) i0_reciprocal	13750000000.0000
解质量估计 total_estimate	0.9020
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	83.0 Å
偏度 Skewness skewness	0.490
峰度 Kurtosis kurtosis	-0.297
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	0.4206
最高正则化参数 α highest_alpha	3557000000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 0.993; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.062

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (16)

Entity 1 polymer

描述 description	PROTEASOME COMPONENT C7-ALPHA
分子量 formula_weight	28033.8 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,O
原子数 atom_count	70622

MSGAAAASAAGYDRHITIFSPEGRLYQVEYAFKATNQTNINSLAVRGKDCTVVISQKKVPDKLLDPTTVSYIFCISRTIGMVVNGPIPDARNAALRAKAEAAEFRYKYGYDMPCDVLAKRMANLSQIYTQRAYMRPLGVILTFVSVDEELGPSIYKTDPAGYYVGYKATATGPKQQEITTNLENHFKKSKIDHINEESWEKVVEFAITHMIDALGTEFSKNDLEVGVATKDKFFTLSAENIEERLVAIAEQD

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 polymer

描述 description	PROTEASOME COMPONENT Y7
分子量 formula_weight	27191.8 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,P

MTDRYSFSLTTFSPSGKLGQIDYALTAVKQGVTSLGIKATNGVVIATEKKSSSPLAMSETLSKVSLLTPDIGAVYSGMGPDYRVLVDKSRKVAHTSYKRIYGEYPPTKLLVSEVAKIMQEATQSGGVRPFGVSLLIAGHDEFNGFSLYQVDPSGSYFPWKATAIGKGSVAAKTFLEKRWNDELELEDAIHIALLTLKESVEGEFNGDTIELAIIGDENPDLLGYTGIPTDKGPRFRKLTSQEINDRLEAL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 3 polymer

描述 description	PROTEASOME COMPONENT Y13
分子量 formula_weight	27181.6 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,Q

MGSRRYDSRTTIFSPEGRLYQVEYALESISHAGTAIGIMASDGIVLAAERKVTSTLLEQDTSTEKLYKLNDKIAVAVAGLTADAEILINTARIHAQNYLKTYNEDIPVEILVRRLSDIKQGYTQHGGLRPFGVSFIYAGYDDRYGYQLYTSNPSGNYTGWKAISVGANTSAAQTLLQMDYKDDMKVDDAIELALKTLSKTTDSSALTYDRLEFATIRKGANDGEVYQKIFKPQEIKDILVKTGIT

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 4 polymer

描述 description	PROTEASOME COMPONENT PRE6
分子量 formula_weight	28478.1 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,R

MSGYDRALSIFSPDGHIFQVEYALEAVKRGTCAVGVKGKNCVVLGCERRSTLKLQDTRITPSKVSKIDSHVVLSFSGLNADSRILIEKARVEAQSHRLTLEDPVTVEYLTRYVAGVQQRYTQSGGVRPFGVSTLIAGFDPRDDEPKLYQTEPSGIYSSWSAQTIGRNSKTVREFLEKNYDRKEPPATVEECVKLTVRSLLEVVQTGAKNIEITVVKPDSDIVALSSEEINQYVTQIEQEKQEQQEQDKKKKSNH

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 5 polymer

描述 description	PROTEASOME COMPONENT PUP2
分子量 formula_weight	28649.1 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,S

MFLTRSEYDRGVSTFSPEGRLFQVEYSLEAIKLGSTAIGIATKEGVVLGVEKRATSPLLESDSIEKIVEIDRHIGCAMSGLTADARSMIEHARTAAVTHNLYYDEDINVESLTQSVCDLALRFGEGASGEERLMSRPFGVALLIAGHDADDGYQLFHAEPSGTFYRYNAKAIGSGSEGAQAELLNEWHSSLTLKEAELLVLKILKQVMEEKLDENNAQLSCITKQDGFKIYDNEKTAELIKELKEKEAAESPEEADVEMS

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 6 polymer

描述 description	PROTEASOME COMPONENT PRE5
分子量 formula_weight	25634.0 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,T

MFRNNYDGDTVTFSPTGRLFQVEYALEAIKQGSVTVGLRSNTHAVLVALKRNADELSSYQKKIIKCDEHMGLSLAGLAPDARVLSNYLRQQCNYSSLVFNRKLAVERAGHLLCDKAQKNTQSYGGRPYGVGLLIIGYDKSGAHLLEFQPSGNVTELYGTAIGARSQGAKTYLERTLDTFIKIDGNPDELIKAGVEAISQSLRDESLTVDNLSIAIVGKDTPFTIYDGEAVAKYI

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 7 polymer

描述 description	PROTEASOME COMPONENT C1
分子量 formula_weight	31443.9 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,U

TSIGTGYDLSNSVFSPDGRNFQVEYAVKAVENGTTSIGIKCNDGVVFAVEKLITSKLLVPQKNVKIQVVDRHIGCVYSGLIPDGRHLVNRGREEAASFKKLYKTPIPIPAFADRLGQYVQAHTLYNSVRPFGVSTIFGGVDKNGAHLYMLEPSGSYWGYKGAATGKGRQSAKAELEKLVDHHPEGLSAREAVKQAAKIIYLAHEDNKEKDFELEISWCSLSETNGLHKFVKGDLLQEAIDFAQKEINGDDDEDEDDSDNVMSSDDENAPVATNANATTDQEGDIHLE

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 8 polymer

描述 description	PROTEASOME COMPONENT PRE3
分子量 formula_weight	21517.2 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,V

TSIMAVTFKDGVILGADSRTTTGAYIANRVTDKLTRVHDKIWCCRSGSAADTQAIADIVQYHLELYTSQYGTPSTETAASVFKELCYENKDNLTAGIIVAGYDDKNKGEVYTIPLGGSVHKLPYAIAGSGSTFIYGYCDKNFRENMSKEETVDFIKHSLSQAIKWDGSSGGVIRMVVLTAAGVERLIFYPDEYEQL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 9 polymer

描述 description	PROTEASOME COMPONENT PUP1
分子量 formula_weight	25114.5 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,W

TTIVGVKFNNGVVIAADTRSTQGPIVADKNCAKLHRISPKIWCAGAGTAADTEAVTQLIGSNIELHSLYTSREPRVVSALQMLKQHLFKYQGHIGAYLIVAGVDPTGSHLFSIHAHGSTDVGYYLSLGSGSLAAMAVLESHWKQDLTKEEAIKLASDAIQAGIWNDLGSGSNVDVCVMEIGKDAEYLRNYLTPNVREEKQKSYKFPRGTTAVLKESIVNICDIQEEQVDITA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 10 polymer

描述 description	PROTEASOME COMPONENT PUP3
分子量 formula_weight	22627.8 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,X

MSDPSSINGGIVVAMTGKDCVAIACDLRLGSQSLGVSNKFEKIFHYGHVFLGITGLATDVTTLNEMFRYKTNLYKLKEERAIEPETFTQLVSSSLYERRFGPYFVGPVVAGINSKSGKPFIAGFDLIGCIDEAKDFIVSGTASDQLFGMCESLYEPNLEPEDLFETISQALLNAADRDALSGWGAVVYIIKKDEVVKRYLKMRQD

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 11 polymer

描述 description	PROTEASOME COMPONENT C11
分子量 formula_weight	22545.7 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,Y

MDIILGIRVQDSVILASSKAVTRGISVLKDSDDKTRQLSPHTLMSFAGEAGDTVQFAEYIQANIQLYSIREDYELSPQAVSSFVRQELAKSIRSRRPYQVNVLIGGYDKKKNKPELYQIDYLGTKVELPYGAHGYSGFYTFSLLDHHYRPDMTTEEGLDLLKLCVQELEKRMPMDFKGVIVKIVDKDGIRQVDDFQAQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 12 polymer

描述 description	PROTEASOME COMPONENT PRE2
分子量 formula_weight	23353.3 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,Z

TTTLAFRFQGGIIVAVDSRATAGNWVASQTVKRVIEINPFLLGTMAGGAADCQFWETWLGSQCRLHELREKERISVAAASKILSNLVYQYKGAGLSMGTMICGYTRKEGPTIYYVDSDGTRLKGDIFCVGSGQTFAYGVLDSNYKWDLSVEDALYLGKRSILAAAHRDAYSGGSVNLYHVTEDGWIYHGNHDVGELFWKVKEEEGSFNNVIG

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 13 polymer

描述 description	PROTEASOME COMPONENT C5
分子量 formula_weight	24883.9 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,a

QFNPYGDNGGTILGIAGEDFAVLAGDTRNITDYSINSRYEPKVFDCGDNIVMSANGFAADGDALVKRFKNSVKWYHFDHNDKKLSINSAARNIQHLLYGKRFFPYYVHTIIAGLDEDGKGAVYSFDPVGSYEREQCRAGGAAASLIMPFLDNQVNFKNQYEPGTNGKVKKPLKYLSVEEVIKLVRDSFTSATERHIQVGDGLEILIVTKDGVRKEFYELKRD

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 14 polymer

描述 description	PROTEASOME COMPONENT PRE4
分子量 formula_weight	25945.5 kDa
EC 编号 ec_number	3.4.99.46
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,b

TQQPIVTGTSVISMKYDNGVIIAADNLGSYGSLLRFNGVERLIPVGDNTVVGISGDISDMQHIERLLKDLVTENAYDNPLADAEEALEPSYIFEYLATVMYQRRSKMNPLWNAIIVAGVQSNGDQFLRYVNLLGVTYSSPTLATGFGAHMANPLLRKVVDRESDIPKTTVQVAEEAIVNAMRVLYYRDARSSRNFSLAIIDKNTGLTFKKNLQVENMKWDFAKDIKGYGTQKI

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 15 polymer

描述 description	PROTEASOME ACTIVATOR PROTEIN PA26
分子量 formula_weight	25272.8 kDa
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c,d,e,f,g,h,i,j,k,l,m,n,o,p

MPPKRAALIQNLRDSYTETSSFAVIEEWAAGTLQEIEGIAKAAAEAHGVIRNSTYGRAQAEKSPEQLLGVLQRYQDLCHNVYCQAETIRTVIAIRIPEHKEEDNLGVAVQHAVLKIIDELEIKTLGSGEKSGSGGAPTPIGMYALREYLSARSTVEDKLLGSVDAESGKTKGGSQSPSLLLELRQIDADFMLKVELATTHLSTMVRAVINAYLLNWKKLIQPRTGTDHMVS

来源 Source

来源生物 organism	Trypanosoma brucei
NCBI 分类编号 ncbi_taxonomy_id	5691
宿主生物 host_organism	Escherichia coli

Entity 16 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	14

▼

6. 折叠分类 (SCOP + CATH) 42 domains

CATH v4.4 (42 domains)

结构域编号 domain_id	1fntA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntH00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntI00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntJ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntK00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntL00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntM00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntN00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntO00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntP00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntQ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntR00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntS00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntT00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntU00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntV00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntW00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntX00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntY00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntZ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fnta00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntb00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1fntc01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fntd01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fnte01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fntf01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fntg01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fnth01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fnti01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fntj01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fntk01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fntl01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fntm01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fntn01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fnto01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

结构域编号 domain_id	1fntp01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
同源超家族 H-superfamily homologous superfamily	180 — Proteasome activator pa28, C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	192.964 Å
晶胞边长 b length_b	232.127 Å
晶胞边长 c length_c	296.772 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	56

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2550
R_work r_work	0.2550
R_free r_free	0.3250

fit	/app/data/saxs_computation/fn/1fnt/1fnt.fit
pddf	/app/data/pr_computation/fn/1fnt/1fnt.pr.out
profile	/app/data/saxs_computation/fn/1fnt/1fnt.dat

;CRYSTAL STRUCTURE OF THE 20S PROTEASOME FROM YEAST IN COMPLEX WITH THE PROTEASOME ACTIVATOR PA26 FROM TRYPANOSOME BRUCEI AT 3.2 ANGSTROMS RESOLUTION ;

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (16)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

Entity 3 polymer

聚合体 Polymer

来源 Source

Entity 4 polymer

聚合体 Polymer

来源 Source

Entity 5 polymer

聚合体 Polymer

来源 Source

Entity 6 polymer

聚合体 Polymer

来源 Source

Entity 7 polymer

聚合体 Polymer

来源 Source

Entity 8 polymer

聚合体 Polymer

来源 Source

Entity 9 polymer

聚合体 Polymer

来源 Source

Entity 10 polymer

聚合体 Polymer

来源 Source

Entity 11 polymer

聚合体 Polymer

来源 Source

Entity 12 polymer

聚合体 Polymer

来源 Source

Entity 13 polymer

聚合体 Polymer

来源 Source

Entity 14 polymer

聚合体 Polymer

来源 Source

Entity 15 polymer

聚合体 Polymer

来源 Source

Entity 16 non-polymer

6. 折叠分类 (SCOP + CATH) 42 domains

CATH v4.4 (42 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
