SAXSdb — 1g71

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA PRIMASE

Pyrococcus furiosus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 CHLORIDE ION × 3 SULFATE ION × 2 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 1 CHLORIDE ION × 3 SULFATE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PRIS_PYRFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–347； UniProt 1–347 Author chain B； PDBConstruct 1–347； UniProt 1–347

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g71
Deposition date deposition_date	2000-11-08
Structure title title	CRYSTAL STRUCTURE OF PYROCOCCUS FURIOSUS DNA PRIMASE
Keywords keywords	zinc-knuckle, REPLICATION; REPLICATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g71__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g71__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

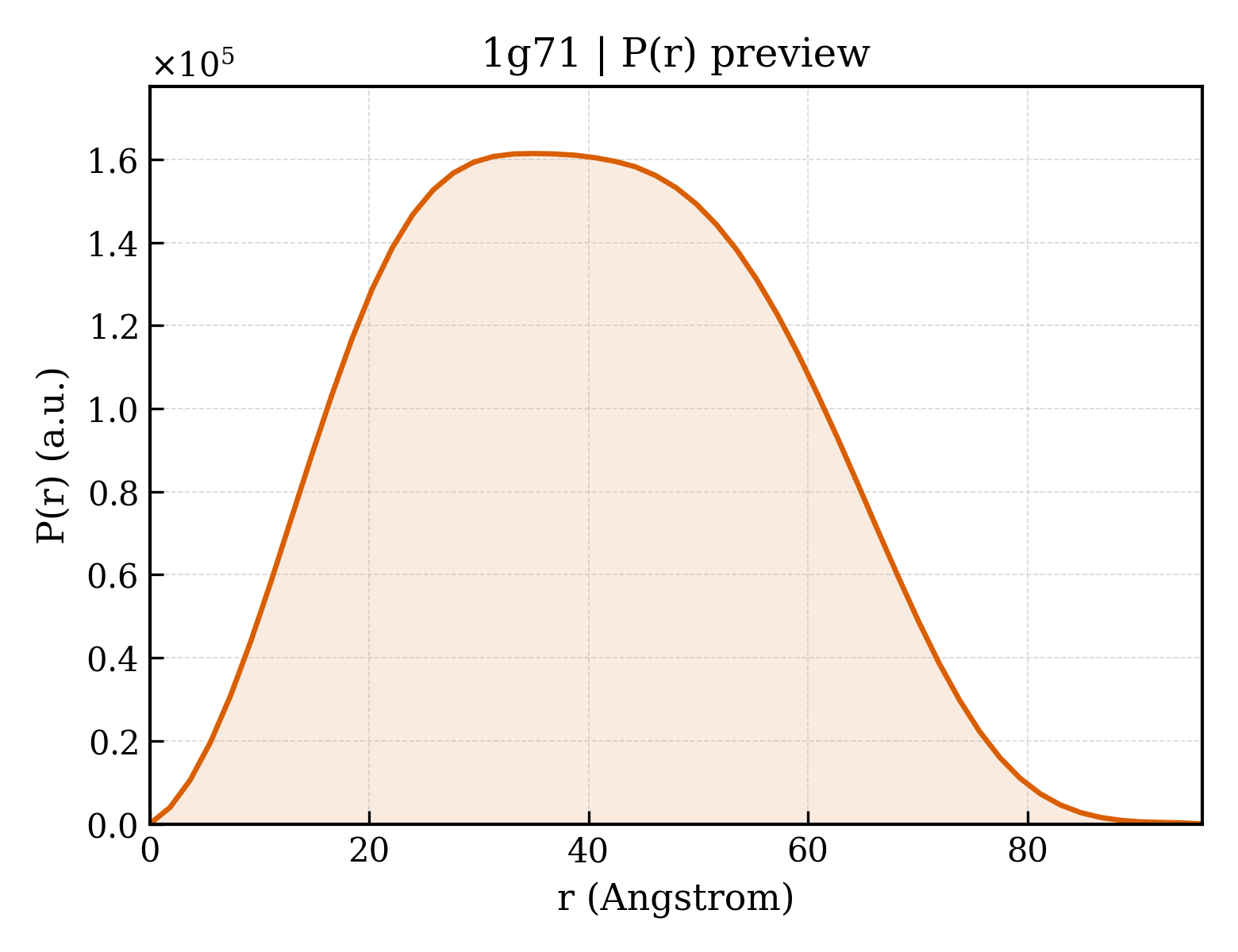

1g71__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.80 Å
Rg (electron density)	21.88 Å
Total Rg	22.79 Å
Atom count	2866
Residues	344
Excluded volume	51281 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g71__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1g71__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DNA PRIMASE
Molecular weight formula_weight	40841.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6070

MLMREVTKEERSEFYSKEWSAKKIPKFIVDTLESREFGFDHNGEGPSDRKNQYSDIRDLEDYIRATSPYAVYSSVAFYENPREMEGWRGAELVFDIDAKDLPLKRCNHEPGTVCPICLEDAKELAKDTLIILREELGFENIHVVYSGRGYHIRILDEWALQLDSKSRERILAFISASEIENVEEFRRFLLEKRGWFVLKHGYPRVFRLRLGYFILRVNVPHLLSIGIRRNIAKKILDHKEEIYEGFVRKAILASFPEGVGIESMAKLFALSTRFSKAYFDGRVTVDIKRILRLPSTLHSKVGLIATYVGTKEREVMKFNPFRHAVPKFRKKEVREAYKLWRESLEYE

Source Source

Source organism organism	Pyrococcus furiosus
NCBI taxonomy ID ncbi_taxonomy_id	2261
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	338

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1g71a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.264 — Prim-pol domain
Superfamily Superfamily superfamily	d.264.1 — Prim-pol domain
Family Family family	d.264.1.1 — PriA-like

Domain ID domain_id	d1g71b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.264 — Prim-pol domain
Superfamily Superfamily superfamily	d.264.1 — Prim-pol domain
Family Family family	d.264.1.1 — PriA-like

CATH v4.4 (4 domains)

Domain ID domain_id	1g71A01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	920 — DNA primase, PRIM domain
Homologous superfamily homologous superfamily	10 — DNA primase, PRIM domain

Domain ID domain_id	1g71A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	160 — DNA primase S; domain 2

Domain ID domain_id	1g71B01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	920 — DNA primase, PRIM domain
Homologous superfamily homologous superfamily	10 — DNA primase, PRIM domain

Domain ID domain_id	1g71B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	160 — DNA primase S; domain 2

▶

Unit-cell length a length_a	129.883 Å
Unit-cell length b length_b	136.326 Å
Unit-cell length c length_c	61.877 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	500.000 Å
R factor r_factor	—
R_work r_work	0.2110
R_free r_free	0.2490
