SAXSdb — 1g73

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1g73
沉积日期 deposition_date	2000-11-08
结构标题 title	CRYSTAL STRUCTURE OF SMAC BOUND TO XIAP-BIR3 DOMAIN
关键词 keywords	helix bundle, zinc-binding domain, APOPTOSIS-APOPTOSIS INHIBITOR COMPLEX; APOPTOSIS/APOPTOSIS INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.03 Å
回转半径 Rg (电子) rg_electron	34.41 Å
零角强度 I(0) i0	53375000.00
分子量 molecular_weight	57085.0 kDa
排除体积 excluded_volume	71054 Å³
包络体积 envelope_volume	96104 Å³
水化壳体积 shell_volume	25919 Å³
包络直径 envelope_diameter	138.3 Å
壳层 Rg shell_rg	37.01 Å
包络 Rg envelope_rg	34.09 Å
形状 Rg shape_rg	34.44 Å
总 Rg total_rg	34.51 Å
总原子数 total_atoms	4010
残基数 n_residues	505
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.8 Å
Rg (实空间) rg_real	34.48 Å
Rg 误差 (实空间) rg_real_error	1.89 Å
I(0) (实空间) i0_real	5.3370e+07
I(0) 误差 (实空间) i0_real_error	1.0040e+06
Rg (倒空间) rg_reciprocal	34.20 Å
I(0) (倒空间) i0_reciprocal	53360000.0000
解质量估计 total_estimate	0.7281
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	28.7 Å
偏度 Skewness skewness	0.617
峰度 Kurtosis kurtosis	-0.105
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	3803000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.443; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.155; Smooth: 0.976

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	SECOND MITOCHONDRIA-DERIVED ACTIVATOR OF CASPASES
分子量 formula_weight	18115.3 kDa
突变 mutation	F33D
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4010

AVPIAQKSEPHSLSSEALMRRAVSLVTDSTSTDLSQTTYALIEAITEYTKAVYTLTSLYRQYTSLLGKMNSEEEDEVWQVIIGARAEMTSKHQEYLKLETTWMTAVGLSEMAAEAAYQTGADQASITARNHIQLVKLQVEEVHQLSRKAETKLAEAQIEELR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	INHIBITORS OF APOPTOSIS-LIKE PROTEIN ILP
分子量 formula_weight	13925.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

RSESDAVSSDRNFPNSTNLPRNPSMADYEARIFTFGTWIYSVNKEQLARAGFYALGEGDKVKCFHCGGGLTDWKPSEDPWEQHAKWYPGCKYLLEQKGQEYINNIHLTHSLEECLVRTTEK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1g73a_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.7 — Spectrin repeat-like
超家族 Superfamily superfamily	a.7.4 — Smac/diablo
家族 Family family	a.7.4.1 — Smac/diablo

结构域编号 domain_id	d1g73b_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.7 — Spectrin repeat-like
超家族 Superfamily superfamily	a.7.4 — Smac/diablo
家族 Family family	a.7.4.1 — Smac/diablo

结构域编号 domain_id	d1g73c_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.52 — Inhibitor of apoptosis (IAP) repeat
超家族 Superfamily superfamily	g.52.1 — Inhibitor of apoptosis (IAP) repeat
家族 Family family	g.52.1.1 — Inhibitor of apoptosis (IAP) repeat

结构域编号 domain_id	d1g73d_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.52 — Inhibitor of apoptosis (IAP) repeat
超家族 Superfamily superfamily	g.52.1 — Inhibitor of apoptosis (IAP) repeat
家族 Family family	g.52.1.1 — Inhibitor of apoptosis (IAP) repeat

CATH v4.4 (4 domains)

结构域编号 domain_id	1g73A00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	70 —

结构域编号 domain_id	1g73B00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	70 —

结构域编号 domain_id	1g73C00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
同源超家族 H-superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

结构域编号 domain_id	1g73D00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
同源超家族 H-superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	48.100 Å
晶胞边长 b length_b	52.900 Å
晶胞边长 c length_c	67.100 Å
晶胞夹角 α angle_alpha	100.00 °
晶胞夹角 β angle_beta	104.10 °
晶胞夹角 γ angle_gamma	94.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2270
R_work r_work	0.2270
R_free r_free	0.2680

fit	/app/data/saxs_computation/g7/1g73/1g73.fit
pddf	/app/data/pr_computation/g7/1g73/1g73.pr.out
profile	/app/data/saxs_computation/g7/1g73/1g73.dat

CRYSTAL STRUCTURE OF SMAC BOUND TO XIAP-BIR3 DOMAIN

SAXS 散射曲线 SAXS Profile

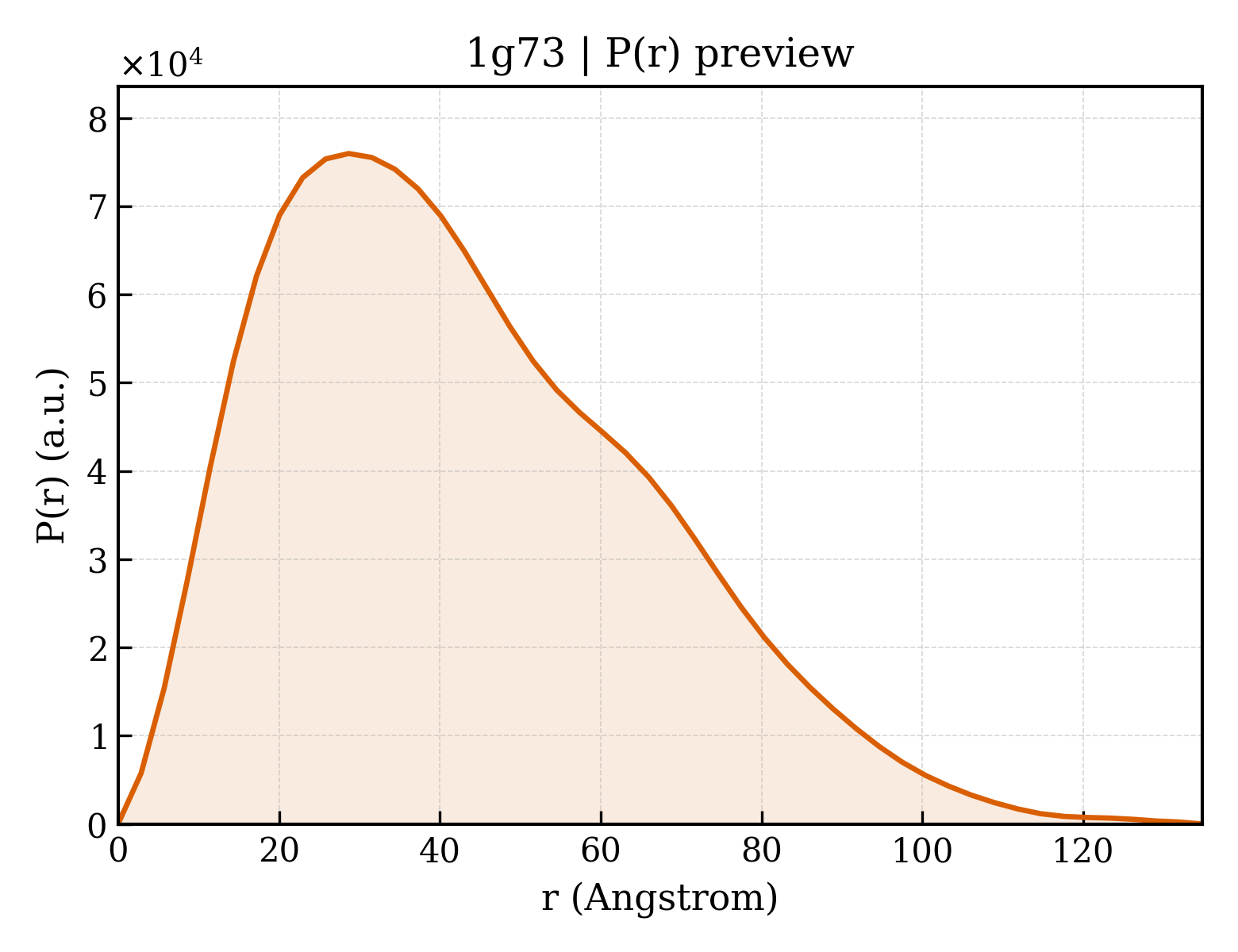

P(r) 距离分布 P(r) Distribution
