1g9n

HIV-1 YU2 GP120 ENVELOPE GLYCOPROTEIN COMPLEXED WITH CD4 AND INDUCED NEUTRALIZING ANTIBODY 17B

Method: X-RAY DIFFRACTION D_max: 131.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

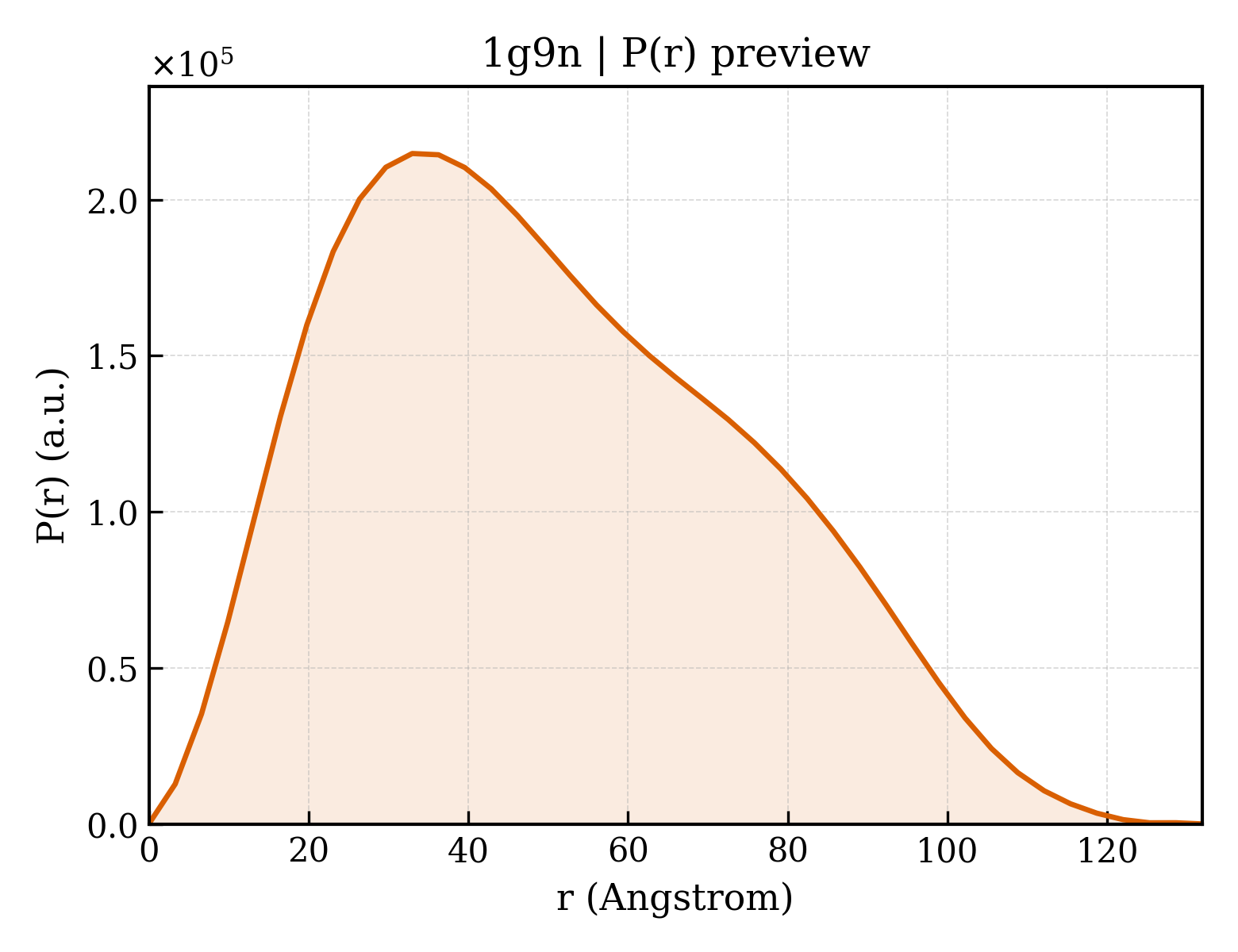

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1g9n
沉积日期 deposition_date	2000-11-25
结构标题 title	HIV-1 YU2 GP120 ENVELOPE GLYCOPROTEIN COMPLEXED WITH CD4 AND INDUCED NEUTRALIZING ANTIBODY 17B
关键词 keywords	;COMPLEX (HIV ENVELOPE PROTEIN-CD4-FAB), HIV-1 EXTERIOR ENVELOPE GP120 FROM CLINICAL PRIMARY ISOLATE, YU2, T-CELL SURFACE GLYCOPROTEIN CD4, ANTIGEN-BINDING FRAGMENT OF HUMAN IMMUNOGLOBULIN 17B, Viral protein-Immune system COMPLEX ;; Viral protein/Immune system
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.06 Å
回转半径 Rg (电子) rg_electron	39.21 Å
零角强度 I(0) i0	172513000.00
分子量 molecular_weight	104920.0 kDa
排除体积 excluded_volume	130830 Å³
包络体积 envelope_volume	180020 Å³
水化壳体积 shell_volume	40567 Å³
包络直径 envelope_diameter	136.1 Å
壳层 Rg shell_rg	41.91 Å
包络 Rg envelope_rg	39.15 Å
形状 Rg shape_rg	39.18 Å
总 Rg total_rg	39.47 Å
总原子数 total_atoms	7369
残基数 n_residues	930
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	131.9 Å
Rg (实空间) rg_real	39.35 Å
Rg 误差 (实空间) rg_real_error	1.34 Å
I(0) (实空间) i0_real	1.7250e+08
I(0) 误差 (实空间) i0_real_error	3.2470e+06
Rg (倒空间) rg_reciprocal	39.18 Å
I(0) (倒空间) i0_reciprocal	172500000.0000
解质量估计 total_estimate	0.8516
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.0 Å
偏度 Skewness skewness	0.385
峰度 Kurtosis kurtosis	-0.635
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	15750000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.829; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.781; Smooth: 0.800

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	ENVELOPE GLYCOPROTEIN GP120
分子量 formula_weight	34838.7 kDa
突变 mutation	VARIABLE LOOPS SUBSTITUTED
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G
原子数 atom_count	7714

GARSEVKLENVTENFNMWKNNMVEQMHEDIISLWDQSLKPCVKLTPLCVGAGSCNTSVITQACPKVSFEPIPIHYCAPAGFAILKCNDKKFNGTGPCTNVSTVQCTHGIRPVVSTQLLLNGSLAEEEIVIRSENFTNNAKTIIVQLNESVVINCTGAGHCNLSKTQWENTLEQIAIKLKEQFGNNKTIIFNPSSGGDPEIVTHSFNCGGEFFYCNSTQLFTWNDTRKLNNTGRNITLPCRIKQIINMWQEVGKAMYAPPIRGQIRCSSNITGLLLTRDGGKDTNGTEIFRPGGGDMRDNWRSELYKYKVVKIE

来源 Source

来源生物 organism	Human immunodeficiency virus 1
NCBI 分类编号 ncbi_taxonomy_id	11676
宿主生物 host_organism	Drosophila melanogaster

Entity 2 polymer

描述 description	T-CELL SURFACE GLYCOPROTEIN CD4
分子量 formula_weight	20503.3 kDa
突变 mutation	S184N, I185T
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

KKVVLGKKGDTVELTCTASQKKSIQFHWKNSNQIKILGNQGSFLTKGPSKLNDRADSRRSLWDQGNFPLIIKNLKIEDSDTYICEVEDQKEEVQLLVFGLTANSDTHLLQGQSLTLTLESPPGSSPSVQCRSPRGKNIQGGKTLSVSQLELQDSGTWTCTVLQNQKKVEFKIDIVVLAFQKASNT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 3 polymer

描述 description	ANTIBODY 17B, LIGHT CHAIN
分子量 formula_weight	23440.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

ELELTQSPATLSVSPGERATLSCRASESVSSDLAWYQQKPGQAPRLLIYGASTRATGVPARFSGSGSGAEFTLTISSLQSEDFAVYYCQQYNNWPPRYTFGQGTRLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQKSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mus musculus

Entity 4 polymer

描述 description	ANTIBODY 17B, HEAVY CHAIN
分子量 formula_weight	24525.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

QVQLLESGAEVKKPGSSVKVSCKASGDTFIRYSFTWVRQAPGQGLEWMGRIITILDVAHYAPHLQGRVTITADKSTSTVYLELRNLRSDDTAVYFCAGVYEGEADEGEYRNNGFLKHWGQGTLVTVTSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPQPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mus musculus

Entity 5 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	14

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	345

▼

6. 折叠分类 (SCOP + CATH) 14 domains

SCOP 2.08 (7 domains)

结构域编号 domain_id	d1g9nc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1g9nc2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.3 — C2 set domains

结构域编号 domain_id	d1g9ng_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.172 — gp120 core
超家族 Superfamily superfamily	d.172.1 — gp120 core
家族 Family family	d.172.1.1 — gp120 core

结构域编号 domain_id	d1g9nh1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1g9nh2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1g9nl1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1g9nl2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (7 domains)

结构域编号 domain_id	1g9nC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1g9nC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1g9nG00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	40 — HIV Envelope Protein Gp120; Chain G
同源超家族 H-superfamily homologous superfamily	20 — Human immunodeficiency virus 1, Gp160, envelope glycoprotein

结构域编号 domain_id	1g9nH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1g9nH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1g9nL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1g9nL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	174.980 Å
晶胞边长 b length_b	81.710 Å
晶胞边长 c length_c	74.480 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.37 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.2068
R_free r_free	0.2950

fit	/app/data/saxs_computation/g9/1g9n/1g9n.fit
pddf	/app/data/pr_computation/g9/1g9n/1g9n.pr.out
profile	/app/data/saxs_computation/g9/1g9n/1g9n.dat
