SAXSdb — 1giq

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1giq
沉积日期 deposition_date	2001-03-12
结构标题 title	Crystal Structure of the Enzymatic Componet of Iota-Toxin from Clostridium Perfringens with NADH
关键词 keywords	enzymatic component, TOXIN; TOXIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.31 Å
回转半径 Rg (电子) rg_electron	40.28 Å
零角强度 I(0) i0	136193000.00
分子量 molecular_weight	96024.0 kDa
排除体积 excluded_volume	120720 Å³
包络体积 envelope_volume	166080 Å³
水化壳体积 shell_volume	36131 Å³
包络直径 envelope_diameter	140.5 Å
壳层 Rg shell_rg	43.21 Å
包络 Rg envelope_rg	39.50 Å
形状 Rg shape_rg	40.27 Å
总 Rg total_rg	40.49 Å
总原子数 total_atoms	6782
残基数 n_residues	822
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.3 Å
Rg (实空间) rg_real	40.60 Å
Rg 误差 (实空间) rg_real_error	1.28 Å
I(0) (实空间) i0_real	1.3620e+08
I(0) 误差 (实空间) i0_real_error	2.3470e+06
Rg (倒空间) rg_reciprocal	40.31 Å
I(0) (倒空间) i0_reciprocal	136200000.0000
解质量估计 total_estimate	0.7941
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	31.0 Å
偏度 Skewness skewness	0.435
峰度 Kurtosis kurtosis	-0.579
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14570000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.777; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.570; Smooth: 0.420

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	IOTA TOXIN COMPONENT IA
分子量 formula_weight	47648.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7068

AFIERPEDFLKDKENAIQWEKKEAERVEKNLDTLEKEALELYKKDSEQISNYSQTRQYFYDYQIESNPREKEYKNLRNAISKNKIDKPINVYYFESPEKFAFNKEIRTENQNEISLEKFNELKETIQDKLFKQDGFKDVSLYEPGNGDEKPTPLLIHLKLPKNTGMLPYINSNDVKTLIEQDYSIKIDKIVRIVIEGKQYIKAEASIVNSLDFKDDVSKGDLWGKENYSDWSNKLTPNELADVNDYMRGGYTAINNYLISNGPLNNPNPELDSKVNNIENALKLTPIPSNLIVYRRSGPQEFGLTLTSPEYDFNKIENIDAFKEKWEGKVITYPNFISTSIGSVNMSAFAKRKIILRINIPKDSPGAYLSAIPGYAGEYEVLLNHGSKFKINKVDSYKDGTVTKLILDATLIN

Entity 2 non-polymer

描述 description	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE
分子量 formula_weight	665.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	286

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1giqa1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.166 — ADP-ribosylation
超家族 Superfamily superfamily	d.166.1 — ADP-ribosylation
家族 Family family	d.166.1.1 — ADP-ribosylating toxins

结构域编号 domain_id	d1giqa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.166 — ADP-ribosylation
超家族 Superfamily superfamily	d.166.1 — ADP-ribosylation
家族 Family family	d.166.1.1 — ADP-ribosylating toxins

结构域编号 domain_id	d1giqb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.166 — ADP-ribosylation
超家族 Superfamily superfamily	d.166.1 — ADP-ribosylation
家族 Family family	d.166.1.1 — ADP-ribosylating toxins

结构域编号 domain_id	d1giqb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.166 — ADP-ribosylation
超家族 Superfamily superfamily	d.166.1 — ADP-ribosylation
家族 Family family	d.166.1.1 — ADP-ribosylating toxins

CATH v4.4 (4 domains)

结构域编号 domain_id	1giqA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	176 — Toxin ADP-ribosyltransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Toxin ADP-ribosyltransferase; Chain A, domain 1

结构域编号 domain_id	1giqA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	176 — Toxin ADP-ribosyltransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Toxin ADP-ribosyltransferase; Chain A, domain 1

结构域编号 domain_id	1giqB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	176 — Toxin ADP-ribosyltransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Toxin ADP-ribosyltransferase; Chain A, domain 1

结构域编号 domain_id	1giqB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	176 — Toxin ADP-ribosyltransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Toxin ADP-ribosyltransferase; Chain A, domain 1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	48.200 Å
晶胞边长 b length_b	54.440 Å
晶胞边长 c length_c	103.380 Å
晶胞夹角 α angle_alpha	99.20 °
晶胞夹角 β angle_beta	93.10 °
晶胞夹角 γ angle_gamma	106.90 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	14.970 Å
R 因子 r_factor	—
R_work r_work	0.2240
R_free r_free	0.2500

fit	/app/data/saxs_computation/gi/1giq/1giq.fit
pddf	/app/data/pr_computation/gi/1giq/1giq.pr.out
profile	/app/data/saxs_computation/gi/1giq/1giq.dat

Crystal Structure of the Enzymatic Componet of Iota-Toxin from Clostridium Perfringens with NADH

SAXS 散射曲线 SAXS Profile

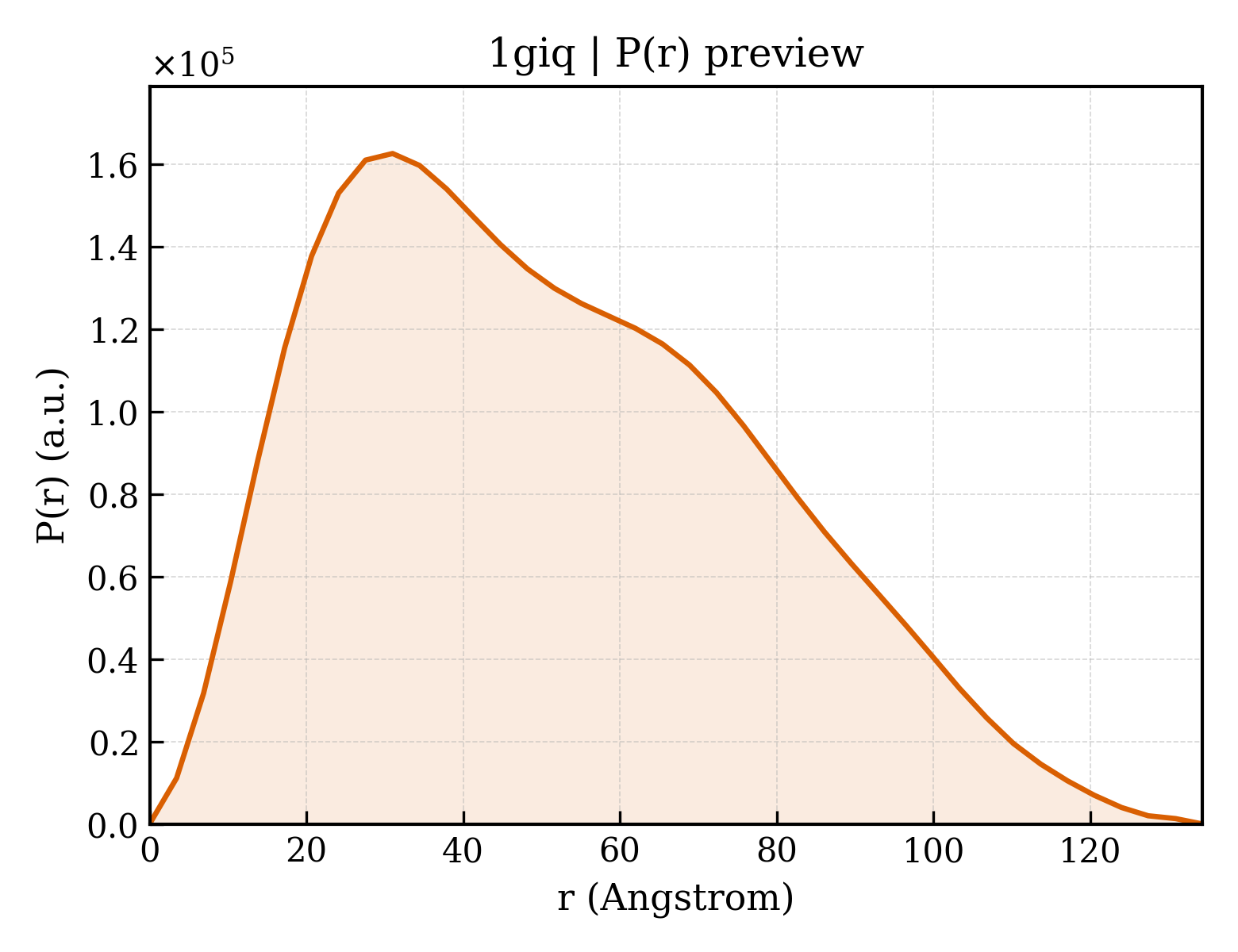

P(r) 距离分布 P(r) Distribution
