1gl1
structure of the complex between bovine alpha-chymotrypsin and PMP-C, an inhibitor from the insect Locusta migratoria
SAXS 散射曲线 SAXS Profile

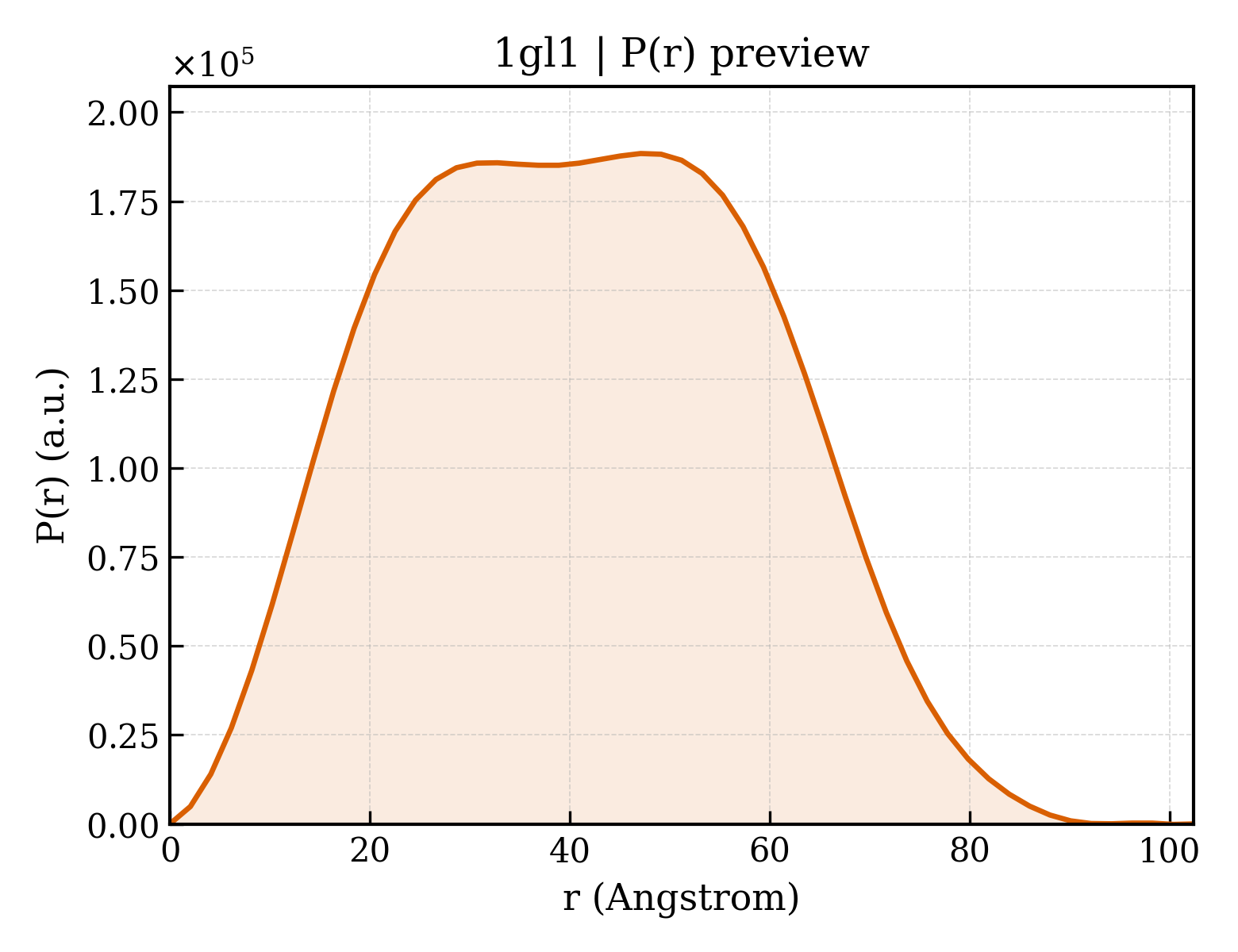

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1gl1 |
| 沉积日期 deposition_date | 2001-08-22 |
| 结构标题 title | structure of the complex between bovine alpha-chymotrypsin and PMP-C, an inhibitor from the insect Locusta migratoria |
| 关键词 keywords | ;HYDROLASE/INHIBITOR, COMPLEX (PROTEASE-INHIBITOR), HYDROLASE, SERINE PROTEASE, SERINE PROTEASE INHIBITOR, HYDROLASE-INHIBITOR complex ;; HYDROLASE/INHIBITOR |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 31.74 Å |
| 回转半径 Rg (电子) rg_electron | 30.91 Å |
| 零角强度 I(0) i0 | 127392000.00 |
| 分子量 molecular_weight | 86103.0 kDa |
| 排除体积 excluded_volume | 106270 ų |
| 包络体积 envelope_volume | 135610 ų |
| 水化壳体积 shell_volume | 36643 ų |
| 包络直径 envelope_diameter | 99.2 Å |
| 壳层 Rg shell_rg | 37.64 Å |
| 包络 Rg envelope_rg | 30.60 Å |
| 形状 Rg shape_rg | 30.85 Å |
| 总 Rg total_rg | 31.68 Å |
| 总原子数 total_atoms | 5972 |
| 残基数 n_residues | 817 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 102.4 Å |
| Rg (实空间) rg_real | 31.61 Å |
| Rg 误差 (实空间) rg_real_error | 0.73 Å |
| I(0) (实空间) i0_real | 1.2740e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.9670e+06 |
| Rg (倒空间) rg_reciprocal | 31.67 Å |
| I(0) (倒空间) i0_reciprocal | 127400000.0000 |
| 解质量估计 total_estimate | 0.8200 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 47.1 Å |
| 偏度 Skewness skewness | 0.092 |
| 峰度 Kurtosis kurtosis | -0.764 |
| 角度范围 angular_range | — – 0.2500 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 77700000.0000 |
| 实空间数据点数 n_real_points | 51 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.886; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d1gl1a_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.47 — Trypsin-like serine proteases |
| 超家族 Superfamily superfamily | b.47.1 — Trypsin-like serine proteases |
| 家族 Family family | b.47.1.2 — Eukaryotic proteases |
| 结构域编号 domain_id | d1gl1b_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.47 — Trypsin-like serine proteases |
| 超家族 Superfamily superfamily | b.47.1 — Trypsin-like serine proteases |
| 家族 Family family | b.47.1.2 — Eukaryotic proteases |
| 结构域编号 domain_id | d1gl1c_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.47 — Trypsin-like serine proteases |
| 超家族 Superfamily superfamily | b.47.1 — Trypsin-like serine proteases |
| 家族 Family family | b.47.1.2 — Eukaryotic proteases |
| 结构域编号 domain_id | d1gl1i_ |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.4 — PMP inhibitors |
| 超家族 Superfamily superfamily | g.4.1 — PMP inhibitors |
| 家族 Family family | g.4.1.1 — PMP inhibitors |
| 结构域编号 domain_id | d1gl1j_ |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.4 — PMP inhibitors |
| 超家族 Superfamily superfamily | g.4.1 — PMP inhibitors |
| 家族 Family family | g.4.1.1 — PMP inhibitors |
| 结构域编号 domain_id | d1gl1k_ |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.4 — PMP inhibitors |
| 超家族 Superfamily superfamily | g.4.1 — PMP inhibitors |
| 家族 Family family | g.4.1.1 — PMP inhibitors |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1gl1A01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 10 — Thrombin, subunit H |
| 同源超家族 H-superfamily homologous superfamily | 10 — Trypsin-like serine proteases |
| 结构域编号 domain_id | 1gl1A02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 10 — Thrombin, subunit H |
| 同源超家族 H-superfamily homologous superfamily | 10 — Trypsin-like serine proteases |
| 结构域编号 domain_id | 1gl1B01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 10 — Thrombin, subunit H |
| 同源超家族 H-superfamily homologous superfamily | 10 — Trypsin-like serine proteases |
| 结构域编号 domain_id | 1gl1B02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 10 — Thrombin, subunit H |
| 同源超家族 H-superfamily homologous superfamily | 10 — Trypsin-like serine proteases |
| 结构域编号 domain_id | 1gl1C01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 10 — Thrombin, subunit H |
| 同源超家族 H-superfamily homologous superfamily | 10 — Trypsin-like serine proteases |
| 结构域编号 domain_id | 1gl1C02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 10 — Thrombin, subunit H |
| 同源超家族 H-superfamily homologous superfamily | 10 — Trypsin-like serine proteases |
