SAXSdb — 1gml

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1gml
沉积日期 deposition_date	2001-09-17
结构标题 title	crystal structure of the mouse CCT gamma apical domain (triclinic)
关键词 keywords	CHAPERONE, CHAPERONIN, ACTIN, TUBULIN; CHAPERONE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.61 Å
回转半径 Rg (电子) rg_electron	35.40 Å
零角强度 I(0) i0	77683300.00
分子量 molecular_weight	69184.0 kDa
排除体积 excluded_volume	86492 Å³
包络体积 envelope_volume	124810 Å³
水化壳体积 shell_volume	31776 Å³
包络直径 envelope_diameter	116.3 Å
壳层 Rg shell_rg	38.65 Å
包络 Rg envelope_rg	34.64 Å
形状 Rg shape_rg	35.40 Å
总 Rg total_rg	35.68 Å
总原子数 total_atoms	4839
残基数 n_residues	612
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	118.3 Å
Rg (实空间) rg_real	35.83 Å
Rg 误差 (实空间) rg_real_error	1.12 Å
I(0) (实空间) i0_real	7.7680e+07
I(0) 误差 (实空间) i0_real_error	1.4200e+06
Rg (倒空间) rg_reciprocal	35.70 Å
I(0) (倒空间) i0_reciprocal	77670000.0000
解质量估计 total_estimate	0.8492
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	43.0 Å
偏度 Skewness skewness	0.396
峰度 Kurtosis kurtosis	-0.568
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11390000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.842; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.748; Smooth: 0.760

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	T-COMPLEX PROTEIN 1 SUBUNIT GAMMA
分子量 formula_weight	20644.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	5484

MEDSCVLRGVMINKDVTHPRMRRYIKNPRIVLLDSSLEYKKGESQTDIEITREEDFTRILQMEEEYIHQLCEDIIQLKPDVVITEKGISDLAQHYLMRANVTAIRRVRKTDNNRIARACGARIVSRPEELREDDVGTGAGLLEIKKIGDEYFTFITDCKDPKACTILLRGASHHHHHH

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	MOUSE
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	645

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1gmla_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.5 — GroEL apical domain-like
家族 Family family	c.8.5.2 — Group II chaperonin (CCT, TRIC), apical domain

结构域编号 domain_id	d1gmlb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.5 — GroEL apical domain-like
家族 Family family	c.8.5.2 — Group II chaperonin (CCT, TRIC), apical domain

结构域编号 domain_id	d1gmlc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.5 — GroEL apical domain-like
家族 Family family	c.8.5.2 — Group II chaperonin (CCT, TRIC), apical domain

结构域编号 domain_id	d1gmld_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.5 — GroEL apical domain-like
家族 Family family	c.8.5.2 — Group II chaperonin (CCT, TRIC), apical domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1gmlA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	7 — GroEL
同源超家族 H-superfamily homologous superfamily	10 — GroEL

结构域编号 domain_id	1gmlB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	7 — GroEL
同源超家族 H-superfamily homologous superfamily	10 — GroEL

结构域编号 domain_id	1gmlC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	7 — GroEL
同源超家族 H-superfamily homologous superfamily	10 — GroEL

结构域编号 domain_id	1gmlD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	7 — GroEL
同源超家族 H-superfamily homologous superfamily	10 — GroEL

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	51.740 Å
晶胞边长 b length_b	65.020 Å
晶胞边长 c length_c	65.470 Å
晶胞夹角 α angle_alpha	89.97 °
晶胞夹角 β angle_beta	103.95 °
晶胞夹角 γ angle_gamma	90.35 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	28.950 Å
R 因子 r_factor	0.2030
R_work r_work	0.2030
R_free r_free	0.2340

fit	/app/data/saxs_computation/gm/1gml/1gml.fit
pddf	/app/data/pr_computation/gm/1gml/1gml.pr.out
profile	/app/data/saxs_computation/gm/1gml/1gml.dat

crystal structure of the mouse CCT gamma apical domain (triclinic)

SAXS 散射曲线 SAXS Profile

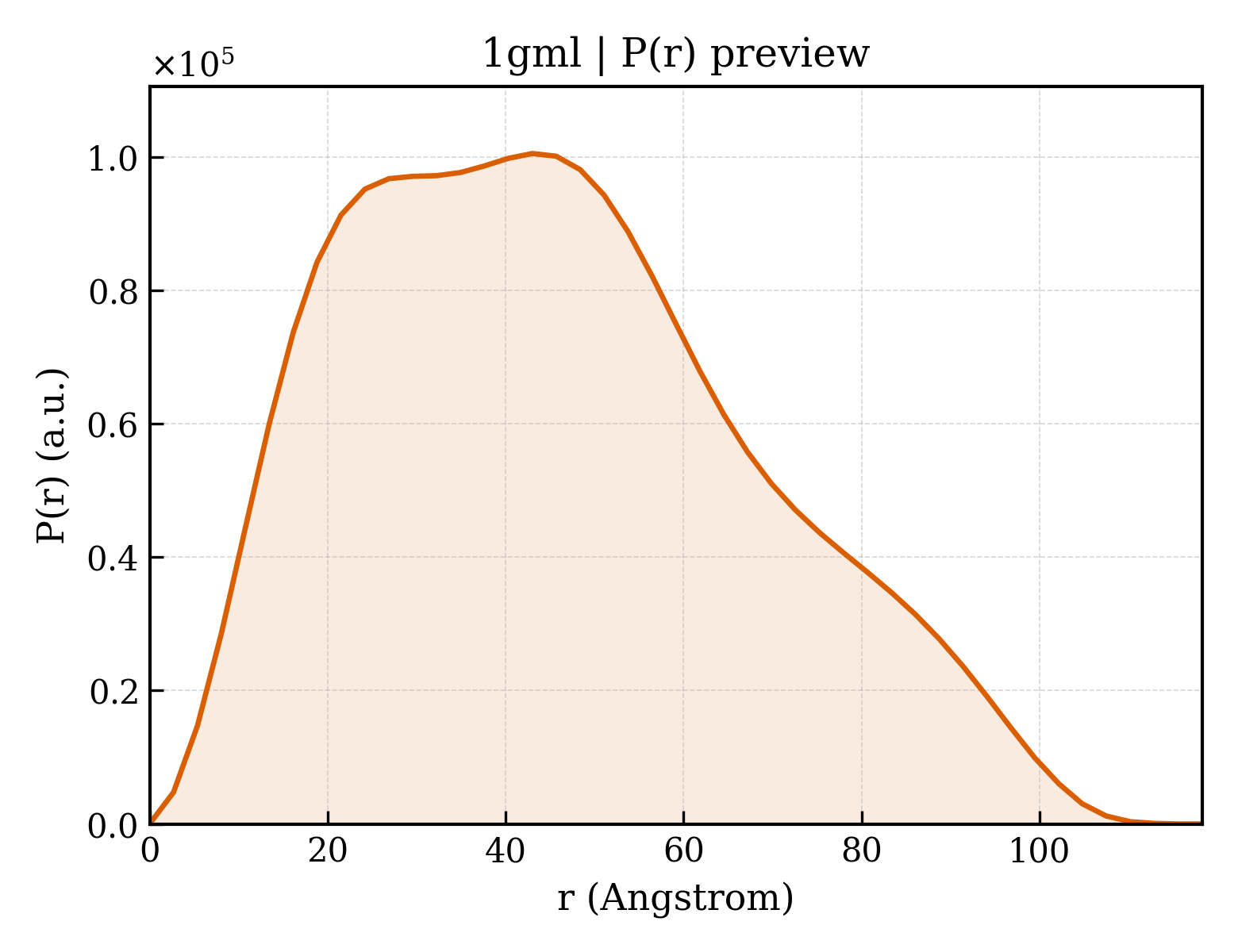

P(r) 距离分布 P(r) Distribution
