SAXSdb — 1h3h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GRB2-RELATED ADAPTOR PROTEIN 2

MUS MUSCULUS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 263–322	Fragment：C-TERMINAL SH3 DOMAIN, RESIDUES 263-322	LYMPHOCYTE CYTOSOLIC PROTEIN 2 × 1 （Q13094）	SOLUTION NMR NMR measurement conditions：pH 6；285 K；Ionic strength (raw mmCIF value) 100MM NACL, 50MM SODIUM PHOSPHATE；Pressure 1	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1H3H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1OEB Mona/Gads SH3C domain Deposited 2003-03-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 265–322（58 aa） Fragment：SH3C DOMAIN, RESIDUES 265-322	Not recorded	CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；PROTEIN WAS CRYSTALLISED FROM: 20% PEG4000, 5 MM CDCL2,50 MM NA CACODYLATE PH 6.5	Resolution 1.76 Å R-free 0.235
1OEB Mona/Gads SH3C domain Deposited 2003-03-24	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 265–322（58 aa） Fragment：SH3C DOMAIN, RESIDUES 265-322	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；PROTEIN WAS CRYSTALLISED FROM: 20% PEG4000, 5 MM CDCL2,50 MM NA CACODYLATE PH 6.5	Resolution 1.76 Å R-free 0.235
1R1P Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.80 Å R-free 0.241
1R1P Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.80 Å R-free 0.241
1R1P Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.80 Å R-free 0.241
1R1P Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.80 Å R-free 0.241
1R1Q Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.7；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.7, VAPOR DIFFUSION, temperature 298K	Resolution 1.80 Å R-free 0.225
1R1Q Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.7；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.7, VAPOR DIFFUSION, temperature 298K	Resolution 1.80 Å R-free 0.225
1R1Q Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 50–147（98 aa） Fragment：Gads-SH2 domain Chain B 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.7；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.7, VAPOR DIFFUSION, temperature 298K	Resolution 1.80 Å R-free 0.225
1R1S Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.90 Å R-free 0.259
1R1S Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.90 Å R-free 0.259
1R1S Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.90 Å R-free 0.259
1R1S Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.90 Å R-free 0.259
1R1S Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 50–147（98 aa） Fragment：Gads-SH2 domain Chain E 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.90 Å R-free 0.259
1R1S Structural Basis for Differential Recognition of Tyrosine Phosphorylated Sites in the Linker for Activation of T cells (LAT) by the Adaptor Protein Gads Deposited 2003-09-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 50–147（98 aa） Fragment：Gads-SH2 domain Chain G 50–147（98 aa） Fragment：Gads-SH2 domain	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；0.1mM Tris-HCl, 2.5M ammonium sulfate, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.90 Å R-free 0.259
1UTI Mona/Gads SH3C in complex with HPK derived peptide Deposited 2003-12-09	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 265–322（58 aa） Fragment：SH3C DOMAIN, RESIDUES 265-322	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；2M AMMONIUM SULFATE, 0.05M HEPES PH7.5, pH 7.50	Resolution 1.50 Å R-free 0.221
2D0N Crystal structure of the C-terminal SH3 domain of the adaptor protein GADS in complex with SLP-76 motif peptide reveals a unique SH3-SH3 interaction Deposited 2005-08-04	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 267–322（56 aa） Fragment：C-terminal SH3 domain Chain C 267–322（56 aa） Fragment：C-terminal SH3 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1.26M ammonium sulfate, 0.1M cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.57 Å R-free 0.284
2W10 Mona SH3C in complex Deposited 2008-10-13	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 265–322（58 aa） Fragment：SH3 2, RESIDUES 265-322	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M PHOSPHATE CITRATE, 2 M AMMONIUM SULPHATE, pH 7.5	Resolution 1.90 Å R-free 0.231
2W10 Mona SH3C in complex Deposited 2008-10-13	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 265–322（58 aa） Fragment：SH3 2, RESIDUES 265-322	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M PHOSPHATE CITRATE, 2 M AMMONIUM SULPHATE, pH 7.5	Resolution 1.90 Å R-free 0.231

7 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GRP2_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–60； UniProt 263–322

LYMPHOCYTE CYTOSOLIC PROTEIN 2

HOMO SAPIENS

UniProt Q13094

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 226–235	Fragment：RESIDUES 226-235	GRB2-RELATED ADAPTOR PROTEIN 2 × 1 （O89100）	SOLUTION NMR NMR measurement conditions：pH 6；285 K；Ionic strength (raw mmCIF value) 100MM NACL, 50MM SODIUM PHOSPHATE；Pressure 1	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1H3H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1YWO Phospholipase Cgamma1 SH3 in complex with a SLP-76 motif Deposited 2005-02-18	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 185–194（10 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；malonate , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.81 Å R-free 0.221
2EAP Solution structure of the N-terminal SAM-domain of human lymphocyte cytosolic protein 2 Deposited 2007-01-31	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–83（83 aa） Fragment：N-terminal SAM domain, residues 8-90	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure AMBIENT NMR sample composition 1.16mM SAM DOMAIN; 20mM d-TRIS-HCL; 100mM NaCl; 1mM d-DTT; 0.02 % NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2ROR Solution structure of the VAV1 SH2 domain complexed with a tyrosine-phosphorylated peptide from SLP76 Deposited 2008-04-08	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 122–136（15 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1.08mM [U-13C; U-15N] Proto-oncogene vav; 1.08mM tyrosine-phosphorylated peptide; 20mM [U-2H] TRIS; 100mM sodium chloride; 0.02% sodium azide; 1mM [U-2H] DTT; 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LCP2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–10； UniProt 226–235

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h3h
Deposition date deposition_date	2002-09-03
Structure title title	Structural Basis for Specific Recognition of an RxxK-containing SLP-76 peptide by the Gads C-terminal SH3 domain
Keywords keywords	PROTEIN-BINDING, COMPLEX (SH3-PEPTIDE), T-CELL SIGNALING, SH3 DOMAIN, SH2 DOMAIN, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	11.66 Å
Radius of gyration Rg (electron density) rg_electron	11.24 Å
Forward intensity I(0) i0	376595000.00
Molecular weight molecular_weight	161640.0 kDa
Excluded volume excluded_volume	201020 Å³
Envelope volume envelope_volume	15346 Å³
Hydration-shell volume shell_volume	10445 Å³
Envelope diameter envelope_diameter	41.1 Å
Shell Rg shell_rg	18.27 Å
Envelope Rg envelope_rg	12.95 Å
Shape Rg shape_rg	11.15 Å
Total Rg total_rg	11.68 Å
Total atoms total_atoms	22500
Residues n_residues	1420
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	36.7 Å
Rg (real space) rg_real	11.58 Å
Rg uncertainty (real space) rg_real_error	0.29 Å
I(0) (real space) i0_real	3.7660e+08
I(0) uncertainty (real space) i0_real_error	3.7960e+06
Rg (reciprocal space) rg_reciprocal	11.58 Å
I(0) (reciprocal space) i0_reciprocal	376600000.0000
Solution quality estimate total_estimate	0.8126
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	15.8 Å
Skewness Skewness skewness	0.103
Kurtosis Kurtosis kurtosis	-0.316
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	141200.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.859; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	GRB2-RELATED ADAPTOR PROTEIN 2
Molecular weight formula_weight	6948.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	22500

GRVRWARALYDFEALEEDELGFRSGEVVEVLDSSNPSWWTGRLHNKLGLFPANYVAPMMR

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	HOUSE MOUSE
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	LYMPHOCYTE CYTOSOLIC PROTEIN 2
Molecular weight formula_weight	1144.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

APSIDRSTKPA

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1h3ha_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.2 — SH3-domain
Family Family family	b.34.2.1 — SH3-domain

CATH v4.4 (1 domains)

Domain ID domain_id	1h3hA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

▶

8. Citations (2)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

fit	/app/data/saxs_computation/h3/1h3h/1h3h.fit
pddf	/app/data/pr_computation/h3/1h3h/1h3h.pr.out
profile	/app/data/saxs_computation/h3/1h3h/1h3h.dat

Structural Basis for Specific Recognition of an RxxK-containing SLP-76 peptide by the Gads C-terminal SH3 domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

GRB2-RELATED ADAPTOR PROTEIN 2

State in the Current Structure

Other States of the Same Protein in the Database

LYMPHOCYTE CYTOSOLIC PROTEIN 2

State in the Current Structure

Other States of the Same Protein in the Database

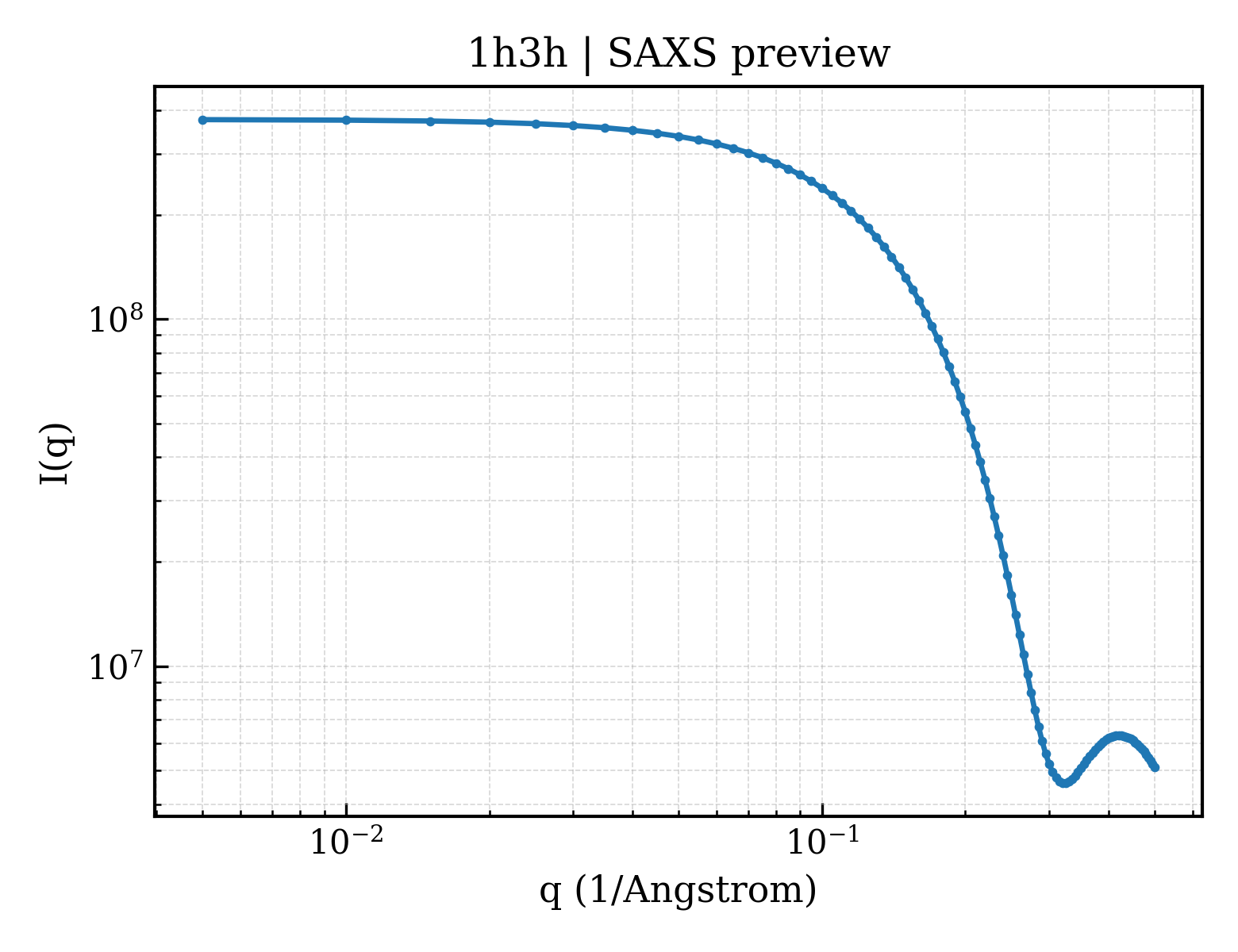

SAXS scattering curve SAXS Profile
