SAXSdb — 1h65

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHLOROPLAST OUTER ENVELOPE PROTEIN OEP34

PISUM SATIVUM

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	GUANOSINE-5'-DIPHOSPHATE × 2 MAGNESIUM ION × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	GUANOSINE-5'-DIPHOSPHATE × 2 MAGNESIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q41009
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–258； UniProt 1–258 Author chain B； PDBConstruct 1–258； UniProt 1–258 Author chain C； PDBConstruct 1–258； UniProt 1–258

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h65
Deposition date deposition_date	2001-06-06
Structure title title	Crystal structure of pea Toc34 - a novel GTPase of the chloroplast protein translocon
Keywords keywords	GTPASE, CHLOROPLAST, TRANSLOCON; GTPASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1h65__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1h65__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

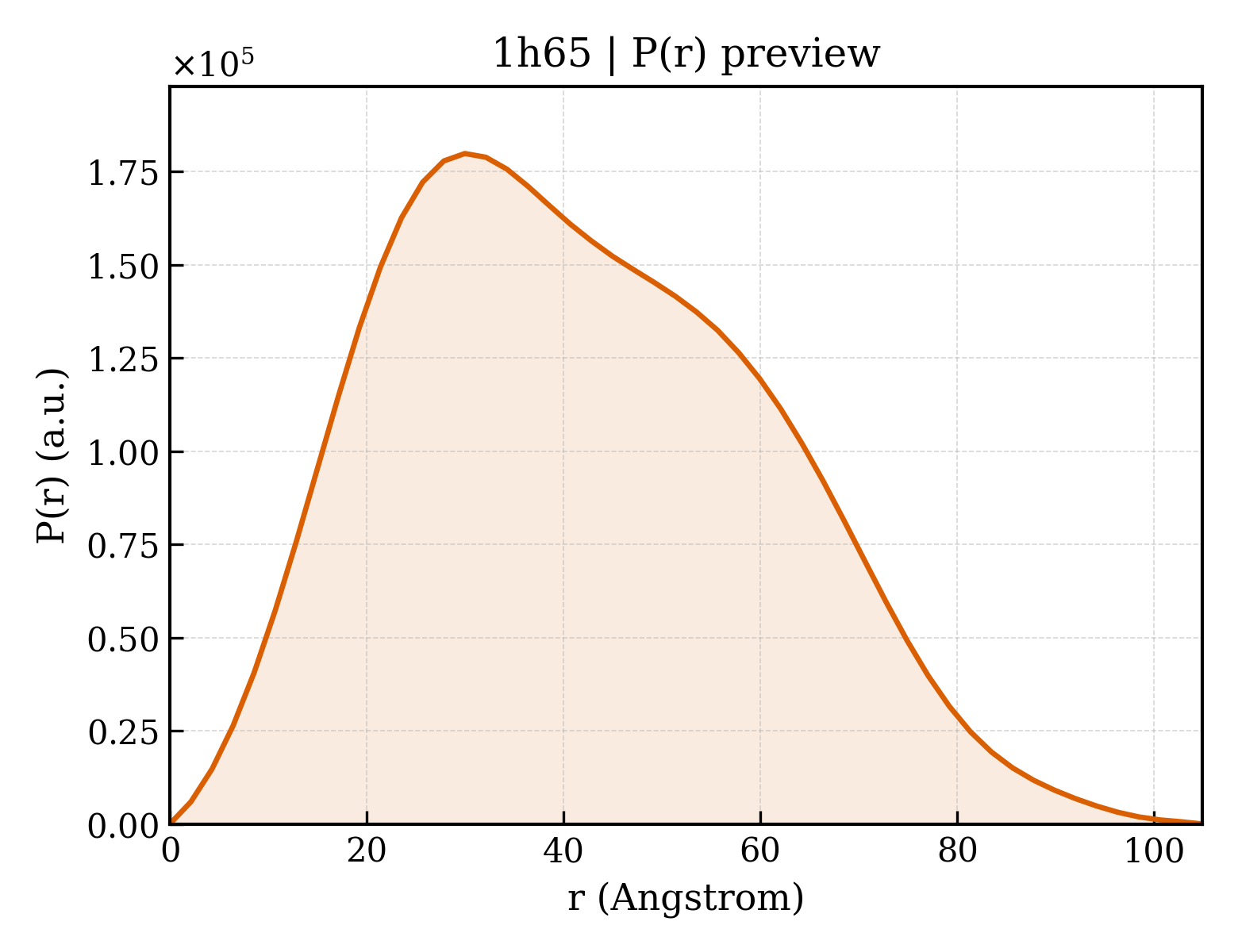

1h65__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.94 Å
Rg (electron density)	25.11 Å
Total Rg	25.93 Å
Atom count	3994
Residues	508
Excluded volume	71600 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1h65__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1h65__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CHLOROPLAST OUTER ENVELOPE PROTEIN OEP34
Molecular weight formula_weight	29773.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	6647

MASQQQTVREWSGINTFAPATQTKLLELLGNLKQEDVNSLTILVMGKGGVGKSSTVNSIIGERVVSISPFQSEGPRPVMVSRSRAGFTLNIIDTPGLIEGGYINDMALNIIKSFLLDKTIDVLLYVDRLDAYRVDNLDKLVAKAITDSFGKGIWNKAIVALTHAQFSPPDGLPYDEFFSKRSEALLQVVRSGASLKKDAQASDIPVVLIENSGRCNKNDSDEKVLPNGIAWIPHLVQTITEVALNKSESIFVDKNLIDKLAAADHHHHHH

Source Source

Source organism organism	PISUM SATIVUM
Common name common_name	GARDEN PEA
NCBI taxonomy ID ncbi_taxonomy_id	3888
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	670

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1h65a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1h65a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1h65b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1h65b2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1h65c1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1h65c2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	1h65A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1h65B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1h65C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	143.160 Å
Unit-cell length b length_b	78.673 Å
Unit-cell length c length_c	67.279 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.44 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	22.420 Å
R factor r_factor	0.1860
R_work r_work	0.1860
R_free r_free	0.2300
