1i1y

CRYSTAL STRUCTURE OF HUMAN CLASS I MHC (HLA-A2.1) COMPLEXED WITH BETA 2-MICROGLOBULIN AND HIV-RT VARIANT PEPTIDE I1Y

Method: X-RAY DIFFRACTION D_max: 133.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

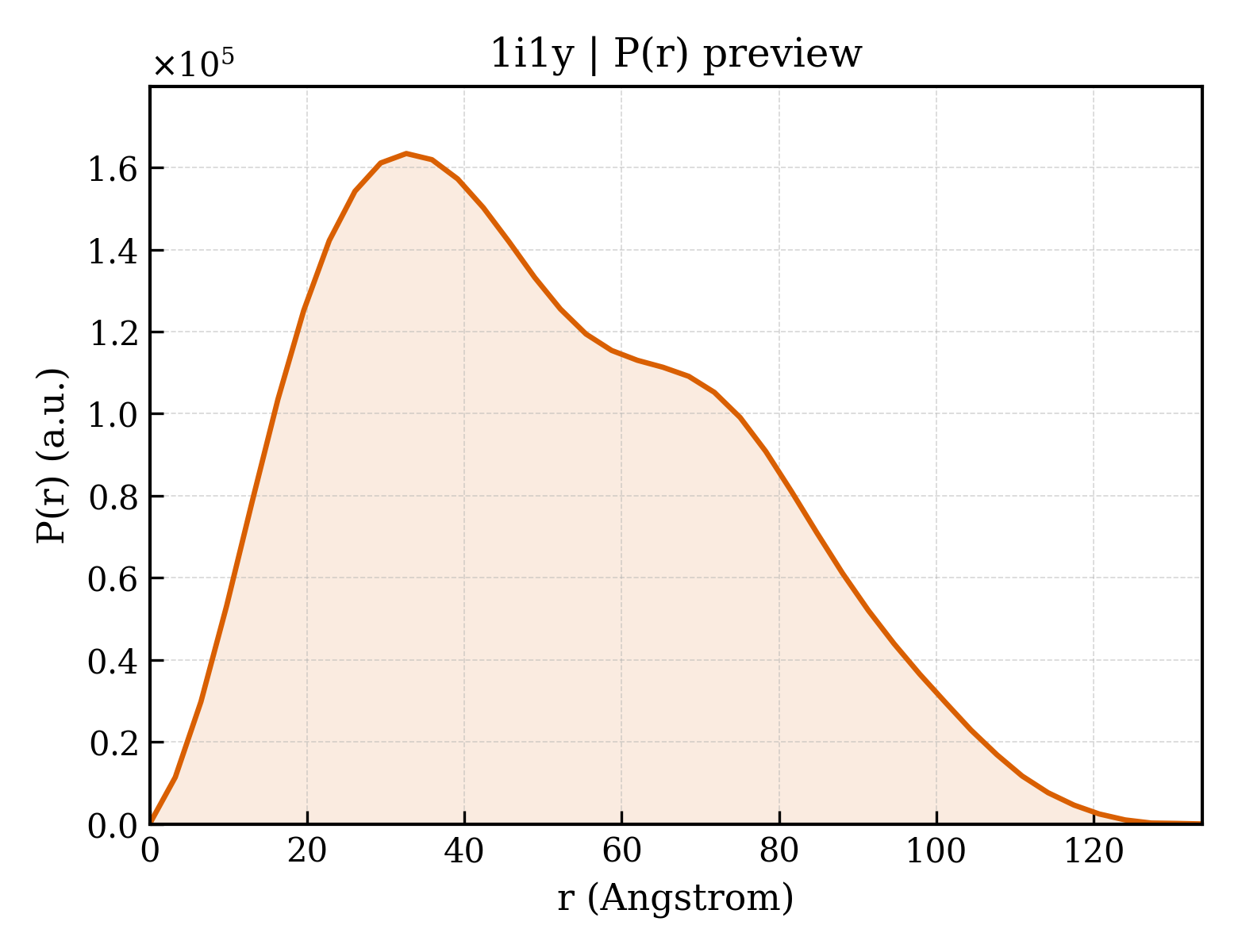

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1i1y
沉积日期 deposition_date	1999-04-16
结构标题 title	CRYSTAL STRUCTURE OF HUMAN CLASS I MHC (HLA-A2.1) COMPLEXED WITH BETA 2-MICROGLOBULIN AND HIV-RT VARIANT PEPTIDE I1Y
关键词 keywords	HUMAN CLASS I MHC, HIV, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.02 Å
回转半径 Rg (电子) rg_electron	38.88 Å
零角强度 I(0) i0	131126000.00
分子量 molecular_weight	89406.0 kDa
排除体积 excluded_volume	110280 Å³
包络体积 envelope_volume	153140 Å³
水化壳体积 shell_volume	33756 Å³
包络直径 envelope_diameter	137.3 Å
壳层 Rg shell_rg	42.87 Å
包络 Rg envelope_rg	38.42 Å
形状 Rg shape_rg	38.85 Å
总 Rg total_rg	39.21 Å
总原子数 total_atoms	6316
残基数 n_residues	768
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	133.8 Å
Rg (实空间) rg_real	39.38 Å
Rg 误差 (实空间) rg_real_error	1.46 Å
I(0) (实空间) i0_real	1.3110e+08
I(0) 误差 (实空间) i0_real_error	2.4280e+06
Rg (倒空间) rg_reciprocal	39.16 Å
I(0) (倒空间) i0_reciprocal	131100000.0000
解质量估计 total_estimate	0.8340
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	32.6 Å
偏度 Skewness skewness	0.398
峰度 Kurtosis kurtosis	-0.628
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	9941000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.768; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.726; Smooth: 0.806

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	CLASS I HISTOCOMPATIBILITY ANTIGEN
分子量 formula_weight	31854.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	6515

GSHSMRYFFTSVSRPGRGEPRFIAVGYVDDTQFVRFDSDAASQRMEPRAPWIEQEGPEYWDGETRKVKAHSQTHRVDLGTLRGYYNQSEAGSHTVQRMYGCDVGSDWRFLRGYHQYAYDGKDYIALKEDLRSWTAADMAAQTTKHKWEAAHVAEQLRAYLEGTCVEWLRRYLENGKETLQRTDAPKTHMTHHAVSDHEATLRCWALSFYPAEITLTWQRDGEDQTQDTELVETRPAGDGTFQKWAAVVVPSGQEQRYTCHVQHEGLPKPLTLRWE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	BETA 2-MICROGLOBULIN
分子量 formula_weight	11879.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	HIV-RT VARIANT PEPTIDE I1Y (YLKEPVHGV)
分子量 formula_weight	1043.2 kDa
突变 mutation	I1Y
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F

YLKEPVHGV

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	199

▼

6. 折叠分类 (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1i1ya1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1i1ya2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.19 — MHC antigen-recognition domain
超家族 Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
家族 Family family	d.19.1.1 — MHC antigen-recognition domain

结构域编号 domain_id	d1i1yb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1i1yb3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1i1yd1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1i1yd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.19 — MHC antigen-recognition domain
超家族 Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
家族 Family family	d.19.1.1 — MHC antigen-recognition domain

结构域编号 domain_id	d1i1ye2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1i1ye3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

结构域编号 domain_id	1i1yA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

结构域编号 domain_id	1i1yA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1i1yB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1i1yD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

结构域编号 domain_id	1i1yD02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1i1yE00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	50.613 Å
晶胞边长 b length_b	63.591 Å
晶胞边长 c length_c	75.326 Å
晶胞夹角 α angle_alpha	81.93 °
晶胞夹角 β angle_beta	75.94 °
晶胞夹角 γ angle_gamma	78.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	0.2440
R_work r_work	0.2330
R_free r_free	0.2890

fit	/app/data/saxs_computation/i1/1i1y/1i1y.fit
pddf	/app/data/pr_computation/i1/1i1y/1i1y.pr.out
profile	/app/data/saxs_computation/i1/1i1y/1i1y.dat
