1i7s
ANTHRANILATE SYNTHASE FROM SERRATIA MARCESCENS IN COMPLEX WITH ITS END PRODUCT INHIBITOR L-TRYPTOPHAN
SAXS 散射曲线 SAXS Profile

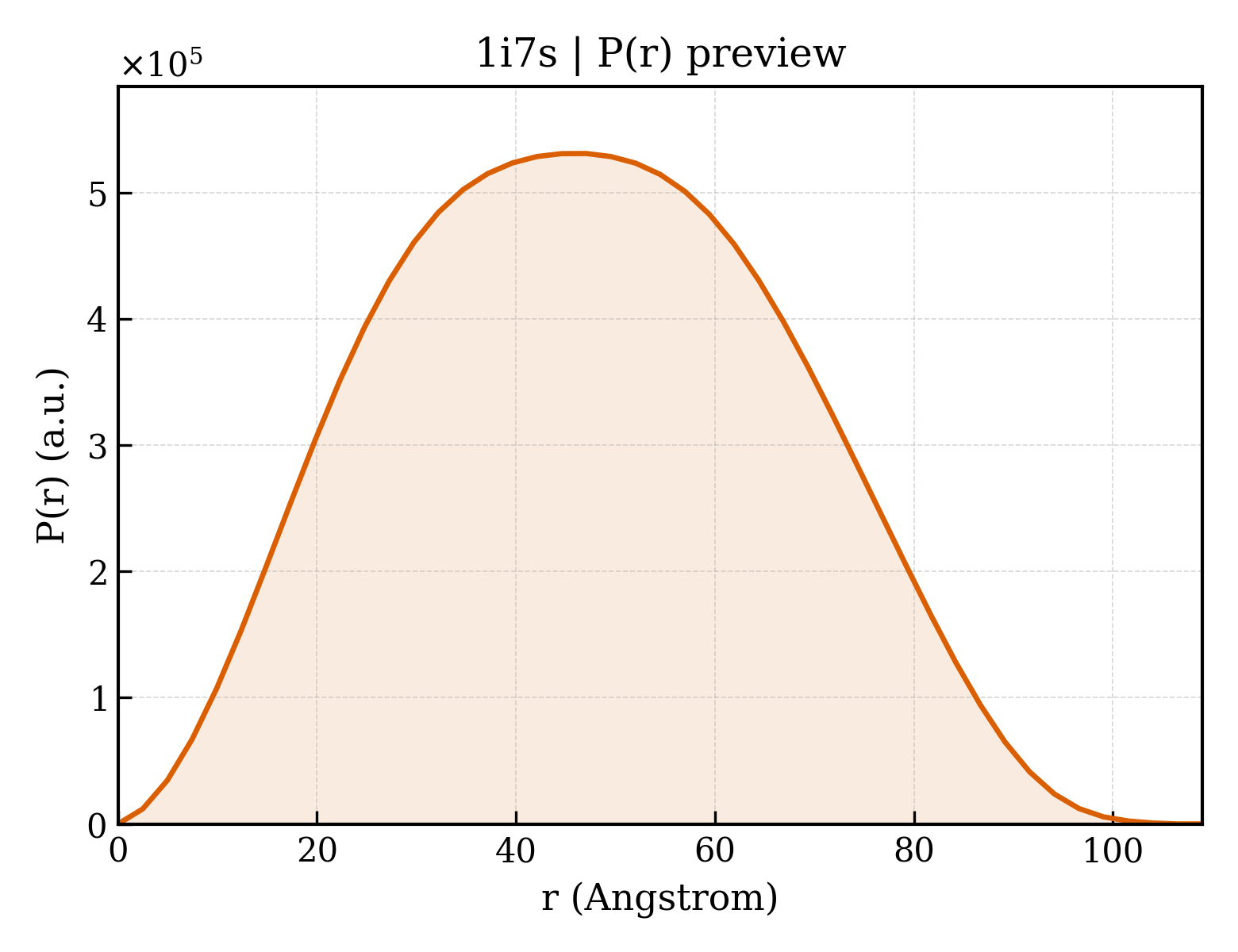

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1i7s |
| 沉积日期 deposition_date | 2001-03-10 |
| 结构标题 title | ANTHRANILATE SYNTHASE FROM SERRATIA MARCESCENS IN COMPLEX WITH ITS END PRODUCT INHIBITOR L-TRYPTOPHAN |
| 关键词 keywords | ANTHRANILATE SYNTHASE, END PRODUCT INHIBITION, TRYPTOPHAN BINDING, CONFORMATIONAL CHANGE, LYASE; LYASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 36.33 Å |
| 回转半径 Rg (电子) rg_electron | 35.55 Å |
| 零角强度 I(0) i0 | 379153000.00 |
| 分子量 molecular_weight | 154830.0 kDa |
| 排除体积 excluded_volume | 192590 ų |
| 包络体积 envelope_volume | 236980 ų |
| 水化壳体积 shell_volume | 53664 ų |
| 包络直径 envelope_diameter | 112.6 Å |
| 壳层 Rg shell_rg | 43.60 Å |
| 包络 Rg envelope_rg | 35.18 Å |
| 形状 Rg shape_rg | 35.56 Å |
| 总 Rg total_rg | 35.99 Å |
| 总原子数 total_atoms | 10880 |
| 残基数 n_residues | 1406 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 109.0 Å |
| Rg (实空间) rg_real | 36.14 Å |
| Rg 误差 (实空间) rg_real_error | 0.65 Å |
| I(0) (实空间) i0_real | 3.7920e+08 |
| I(0) 误差 (实空间) i0_real_error | 5.5830e+06 |
| Rg (倒空间) rg_reciprocal | 36.26 Å |
| I(0) (倒空间) i0_reciprocal | 379200000.0000 |
| 解质量估计 total_estimate | 0.9063 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 47.1 Å |
| 偏度 Skewness skewness | 0.093 |
| 峰度 Kurtosis kurtosis | -0.699 |
| 角度范围 angular_range | — – 0.2200 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 101900000.0000 |
| 实空间数据点数 n_real_points | 45 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.977; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.850 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 8 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1i7sa_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.161 — ADC synthase |
| 超家族 Superfamily superfamily | d.161.1 — ADC synthase |
| 家族 Family family | d.161.1.1 — ADC synthase |
| 结构域编号 domain_id | d1i7sb_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.23 — Flavodoxin-like |
| 超家族 Superfamily superfamily | c.23.16 — Class I glutamine amidotransferase-like |
| 家族 Family family | c.23.16.1 — Class I glutamine amidotransferases (GAT) |
| 结构域编号 domain_id | d1i7sc_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.161 — ADC synthase |
| 超家族 Superfamily superfamily | d.161.1 — ADC synthase |
| 家族 Family family | d.161.1.1 — ADC synthase |
| 结构域编号 domain_id | d1i7sd_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.23 — Flavodoxin-like |
| 超家族 Superfamily superfamily | c.23.16 — Class I glutamine amidotransferase-like |
| 家族 Family family | c.23.16.1 — Class I glutamine amidotransferases (GAT) |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1i7sA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 60 — 4-Layer Sandwich |
| 拓扑 Topology topology | 120 — Anthranilate synthase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Anthranilate synthase |
| 结构域编号 domain_id | 1i7sB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 880 — Class I glutamine amidotransferase (GATase) domain |
| 结构域编号 domain_id | 1i7sC00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 60 — 4-Layer Sandwich |
| 拓扑 Topology topology | 120 — Anthranilate synthase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Anthranilate synthase |
| 结构域编号 domain_id | 1i7sD00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 880 — Class I glutamine amidotransferase (GATase) domain |
