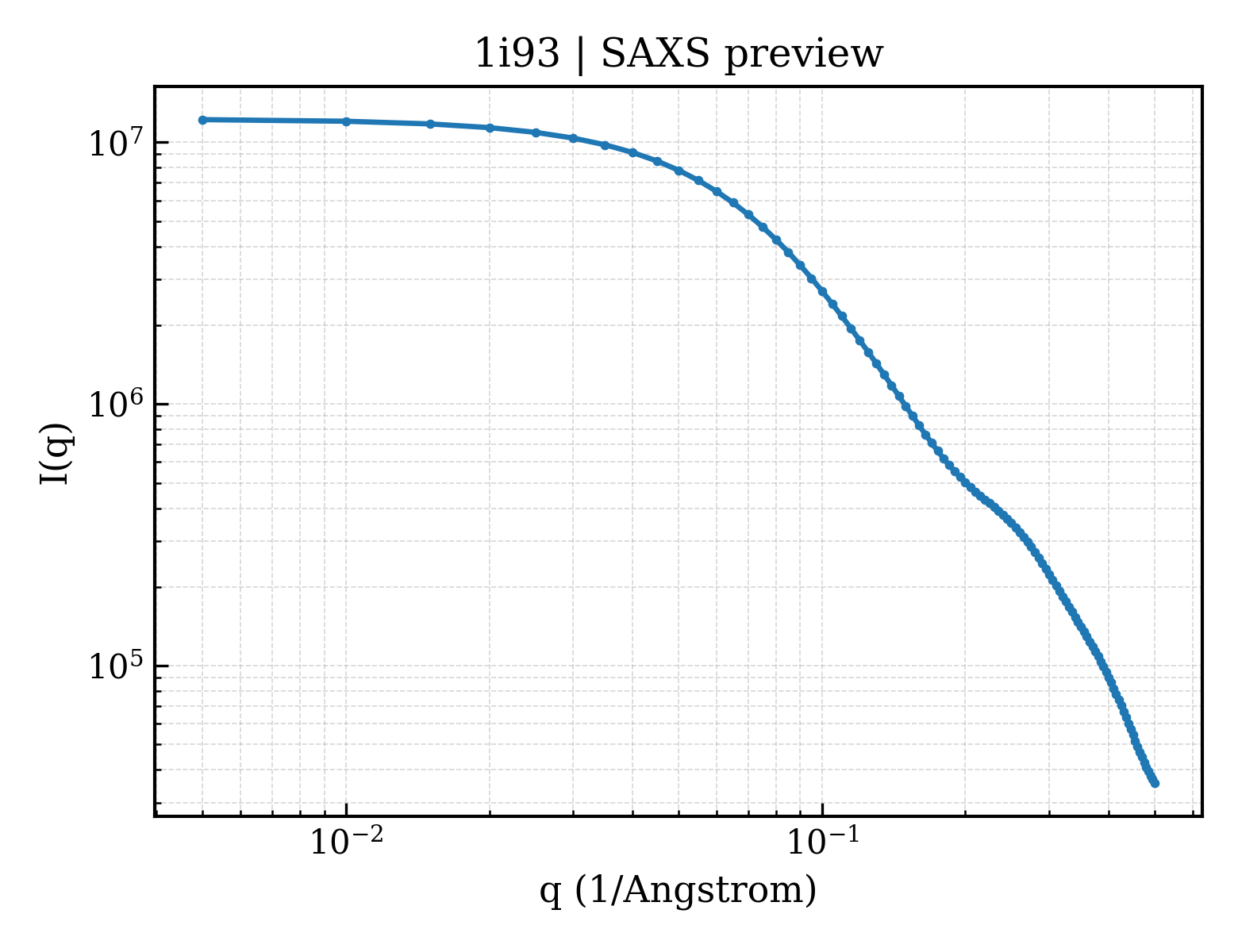

SAXS 散射曲线 SAXS Profile

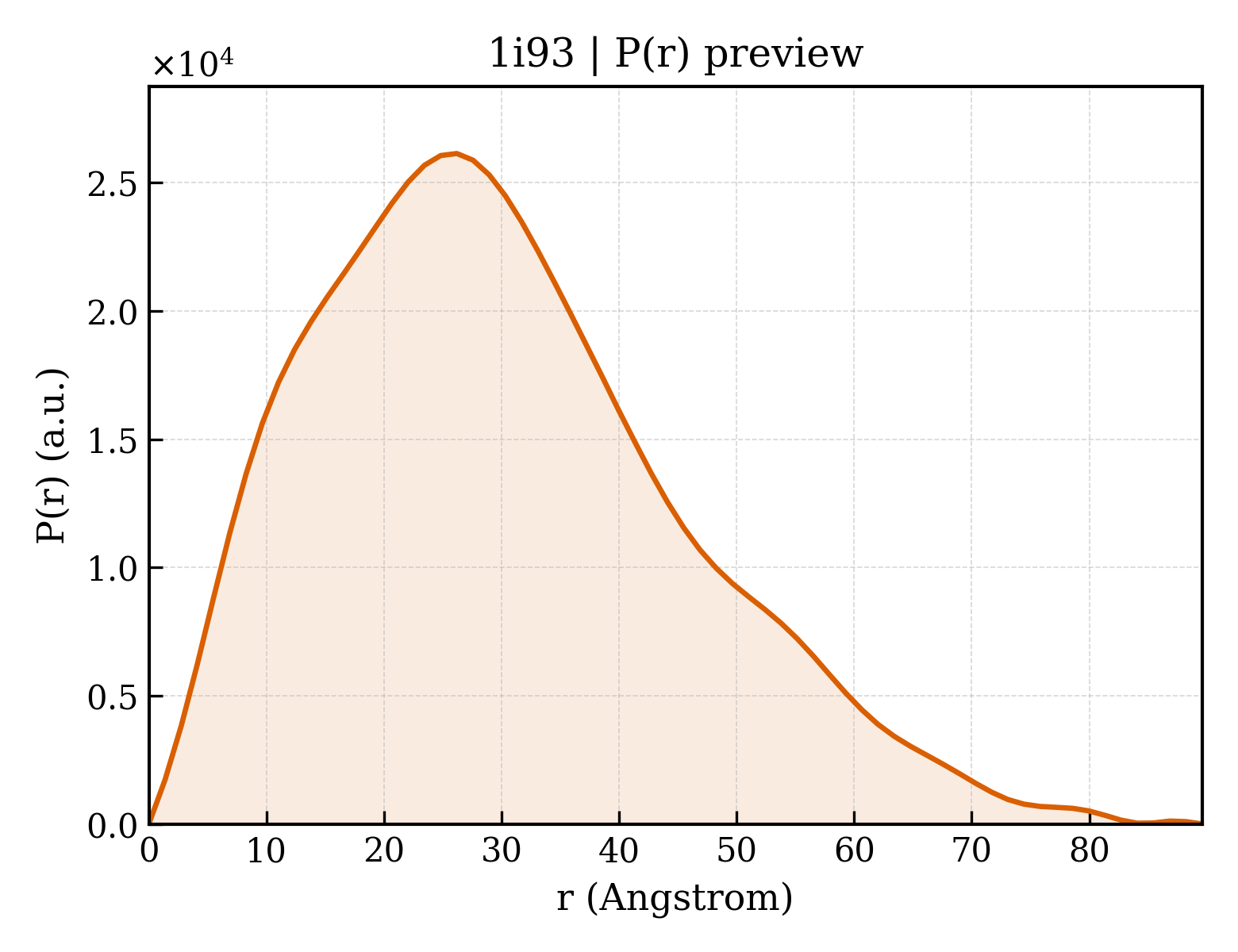

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1i93 |
| 沉积日期 deposition_date | 2001-03-17 |
| 结构标题 title | NMR ENSEMBLE OF ION-SELECTIVE LIGAND D16 FOR PLATELET INTEGRIN ALPHAIIB-BETA3 |
| 关键词 keywords | INTEGRIN, RGD, CELL ADHESION; CELL ADHESION |
| 实验方法 method | SOLUTION NMR |
| 回转半径 Rg (Guinier) rg_guinier | 23.45 Å |
| 回转半径 Rg (电子) rg_electron | 23.02 Å |
| 零角强度 I(0) i0 | 12267600.00 |
| 分子量 molecular_weight | 22152.0 kDa |
| 排除体积 excluded_volume | 26152 ų |
| 包络体积 envelope_volume | 38117 ų |
| 水化壳体积 shell_volume | 15353 ų |
| 包络直径 envelope_diameter | 91.9 Å |
| 壳层 Rg shell_rg | 27.31 Å |
| 包络 Rg envelope_rg | 24.82 Å |
| 形状 Rg shape_rg | 22.89 Å |
| 总 Rg total_rg | 23.90 Å |
| 总原子数 total_atoms | 2955 |
| 残基数 n_residues | 165 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 89.6 Å |
| Rg (实空间) rg_real | 23.76 Å |
| Rg 误差 (实空间) rg_real_error | 1.11 Å |
| I(0) (实空间) i0_real | 1.2270e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.7600e+05 |
| Rg (倒空间) rg_reciprocal | 23.69 Å |
| I(0) (倒空间) i0_reciprocal | 12270000.0000 |
| 解质量估计 total_estimate | 0.7980 |
| 解质量评级 solution_quality |
GOOD
a GOOD solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 26.2 Å |
| 偏度 Skewness skewness | 0.576 |
| 峰度 Kurtosis kurtosis | -0.042 |
| 角度范围 angular_range | — – 0.3400 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 301800.0000 |
| 实空间数据点数 n_real_points | 66 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.634;
Stabil: 0.998;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.485;
Smooth: 0.989
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 1.000 Å |
| 晶胞边长 b length_b | 1.000 Å |
| 晶胞边长 c length_c | 1.000 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 1 |
对称性 Symmetry
| 空间群 space_group | P 1 |
| 空间群编号 int_tables_number | 1 |
| 晶系 crystal_system | — |
Entity 1
polymer
| 描述 description | ION-SELECTIVE LIGAND D16 |
| 分子量 formula_weight | 1460.8 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polypeptide(L) |
| 链编号 strand_id | A |
| 原子数 atom_count | 2955 |
XCHWLRGDMRRCX
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d1i93a_ |
| 类 Class class | j — Peptides |
| 折叠类型 Fold fold | j.60 — Integrin fragments |
| 超家族 Superfamily superfamily | j.60.1 — Integrin fragments |
| 家族 Family family | j.60.1.1 — Integrin fragments |
Selection and structure of ion-selective ligands for platelet integrin alpha IIb(beta) 3.
J.Biol.Chem. (2002)
Files (7)
- pr_distribution /app/data/pr_computation/i9/1i93/pr_distribution.json
- pr_output /app/data/pr_computation/i9/1i93/1i93.pr.out
- pr_plot /app/data/visualization/pr_computation/i9/1i93/1i93_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/i9/1i93/1i93.dat
- saxs_fit /app/data/saxs_computation/i9/1i93/1i93.fit
- saxs_log /app/data/saxs_computation/i9/1i93/1i93.log
- saxs_plot /app/data/visualization/saxs_computation/i9/1i93/1i93_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/i9/1i93/1i93.fit |
| pddf |
/app/data/pr_computation/i9/1i93/1i93.pr.out |
| profile |
/app/data/saxs_computation/i9/1i93/1i93.dat |
