SAXSdb — 1im5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

180aa long hypothetical Pyrazinamidase/Nicotinamidase

Pyrococcus horikoshii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O58727_PYRHO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–180； UniProt 1–180

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1im5
Deposition date deposition_date	2001-05-09
Structure title title	Crystal Structure of Pyrazinamidase of Pyrococcus horikoshii in Complex with Zinc
Keywords keywords	;pyrazinamidase, pyrazinamide, nicotinamidase, tuberculosis, PZA resistance, drug resistance, metal ion catalysis, cysteine hydrolase, hydrolase, amidase, covalent catalysis ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1im5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1im5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

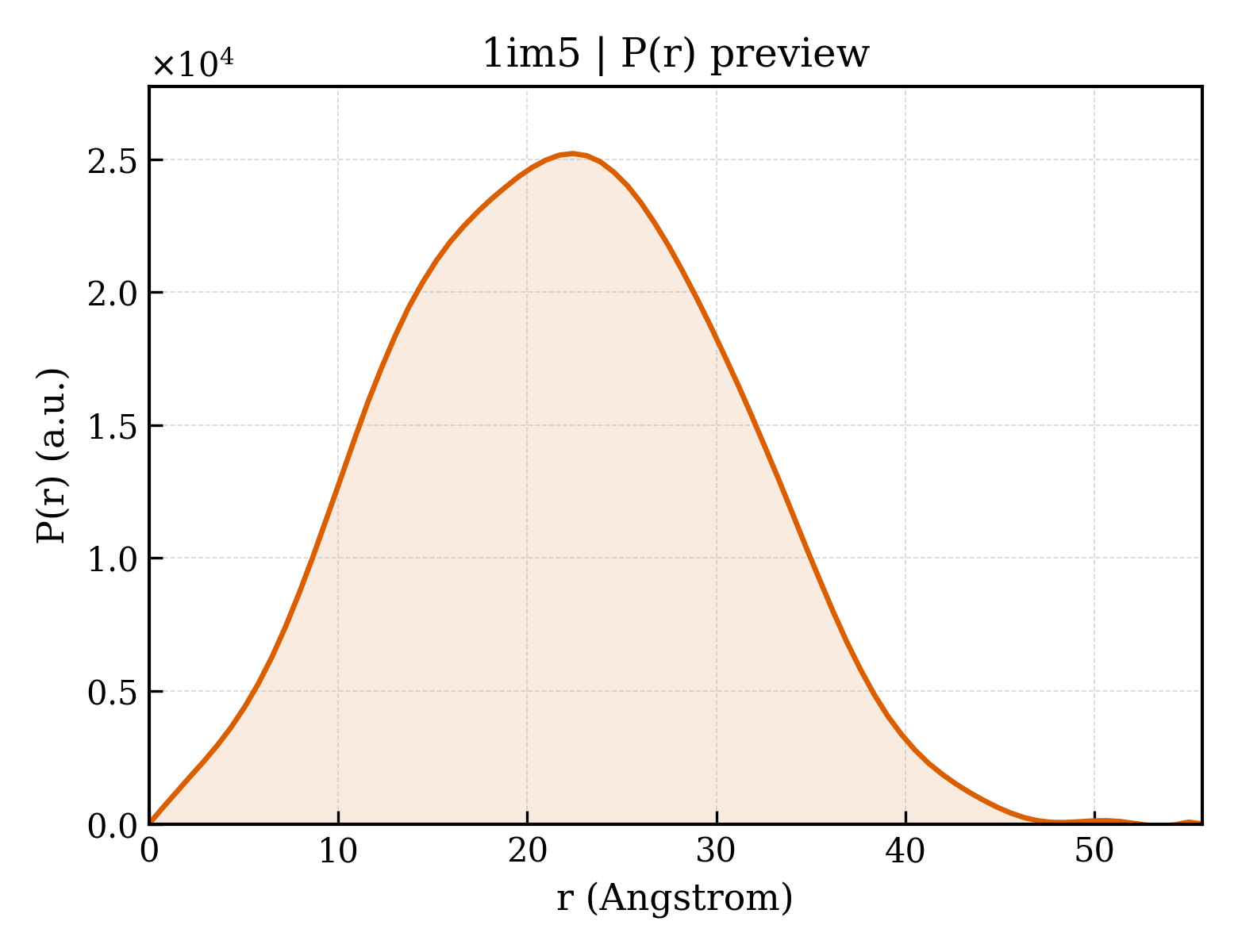

1im5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.77 Å
Rg (electron density)	15.41 Å
Total Rg	16.44 Å
Atom count	1414
Residues	179
Excluded volume	25253 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1im5__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	180aa long hypothetical Pyrazinamidase/Nicotinamidase
Molecular weight formula_weight	20222.2 kDa
EC 编号 ec_number	3.5.1.19
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1566

MPEEALIVVDMQRDFMPGGALPVPEGDKIIPKVNEYIRKFKEKGALIVATRDWHPENHISFRERGGPWPRHCVQNTPGAEFVVDLPEDAVIISKATEPDKEAYSGFEGTDLAKILRGNGVKRVYICGVATEYCVRATALDALKHGFEVYLLRDAVKGIKPEDEERALEEMKSRGIKIVQF

Source Source

Source organism organism	Pyrococcus horikoshii
NCBI taxonomy ID ncbi_taxonomy_id	53953
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1im5a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.33 — Isochorismatase-like hydrolases
Superfamily Superfamily superfamily	c.33.1 — Isochorismatase-like hydrolases
Family Family family	c.33.1.3 — Isochorismatase-like hydrolases

CATH v4.4 (1 domains)

Domain ID domain_id	1im5A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	850 — Isochorismatase-like

▶

Unit-cell length a length_a	32.978 Å
Unit-cell length b length_b	43.266 Å
Unit-cell length c length_c	55.553 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.34 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.650 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1529
R_work r_work	0.1527
R_free r_free	0.2323
