1jk2
Zif268 D20A mutant bound to the GCT DNA site

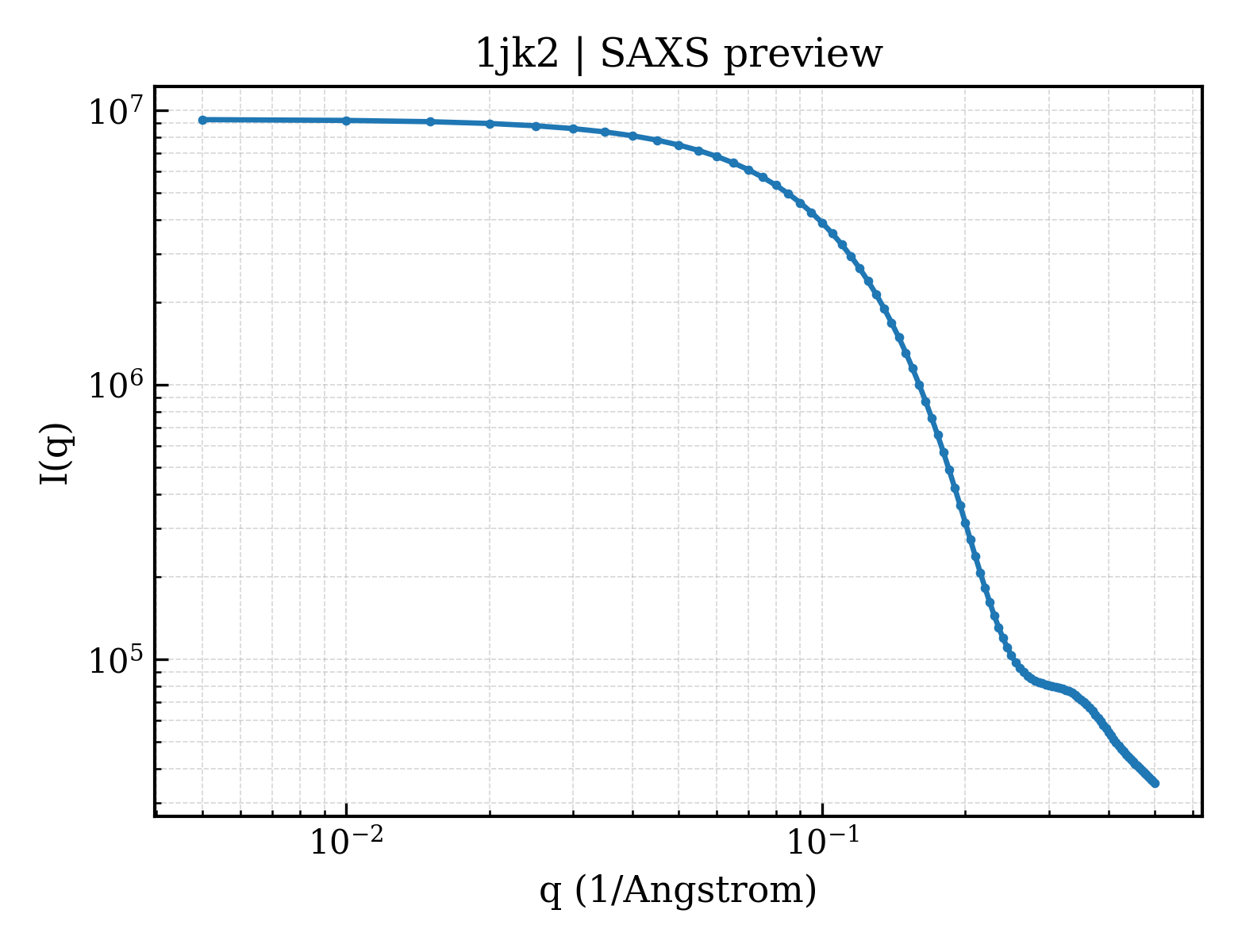

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1jk2 |
| 沉积日期 deposition_date | 2001-07-11 |
| 结构标题 title | Zif268 D20A mutant bound to the GCT DNA site |
| 关键词 keywords | zinc-finger, double stranded DNA, protein-DNA complex, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 16.06 Å |
| 回转半径 Rg (电子) rg_electron | 15.84 Å |
| 零角强度 I(0) i0 | 9281990.00 |
| 分子量 molecular_weight | 17034.0 kDa |
| 排除体积 excluded_volume | 18913 ų |
| 包络体积 envelope_volume | 23596 ų |
| 水化壳体积 shell_volume | 13049 ų |
| 包络直径 envelope_diameter | 56.2 Å |
| 壳层 Rg shell_rg | 21.07 Å |
| 包络 Rg envelope_rg | 16.19 Å |
| 形状 Rg shape_rg | 15.77 Å |
| 总 Rg total_rg | 16.71 Å |
| 总原子数 total_atoms | 1157 |
| 残基数 n_residues | 107 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 54.6 Å |
| Rg (实空间) rg_real | 16.03 Å |
| Rg 误差 (实空间) rg_real_error | 0.37 Å |
| I(0) (实空间) i0_real | 9.2820e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.0510e+05 |
| Rg (倒空间) rg_reciprocal | 16.03 Å |
| I(0) (倒空间) i0_reciprocal | 9282000.0000 |
| 解质量估计 total_estimate | 0.7887 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 20.0 Å |
| 偏度 Skewness skewness | 0.326 |
| 峰度 Kurtosis kurtosis | -0.188 |
| 角度范围 angular_range | — – 0.4950 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 1266000.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.758; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 5 domains
SCOP 2.08 (3 domains)
| 结构域编号 domain_id | d1jk2a1 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.37 — beta-beta-alpha zinc fingers |
| 超家族 Superfamily superfamily | g.37.1 — beta-beta-alpha zinc fingers |
| 家族 Family family | g.37.1.1 — Classic zinc finger, C2H2 |
| 结构域编号 domain_id | d1jk2a2 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.37 — beta-beta-alpha zinc fingers |
| 超家族 Superfamily superfamily | g.37.1 — beta-beta-alpha zinc fingers |
| 家族 Family family | g.37.1.1 — Classic zinc finger, C2H2 |
| 结构域编号 domain_id | d1jk2a3 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.37 — beta-beta-alpha zinc fingers |
| 超家族 Superfamily superfamily | g.37.1 — beta-beta-alpha zinc fingers |
| 家族 Family family | g.37.1.1 — Classic zinc finger, C2H2 |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1jk2A01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 160 — Double Stranded RNA Binding Domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — Classic Zinc Finger |
| 结构域编号 domain_id | 1jk2A02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 160 — Double Stranded RNA Binding Domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — Classic Zinc Finger |
