SAXSdb — 1k4m

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NaMN adenylyltransferase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 3 CITRIC ACID × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NADD_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–213； UniProt 1–213 Author chain B； PDBConstruct 1–213； UniProt 1–213 Author chain C； PDBConstruct 1–213； UniProt 1–213

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1k4m
Deposition date deposition_date	2001-10-08
Structure title title	Crystal structure of E.coli nicotinic acid mononucleotide adenylyltransferase complexed to deamido-NAD
Keywords keywords	Nucleotidyltransferase, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1k4m__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1k4m__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

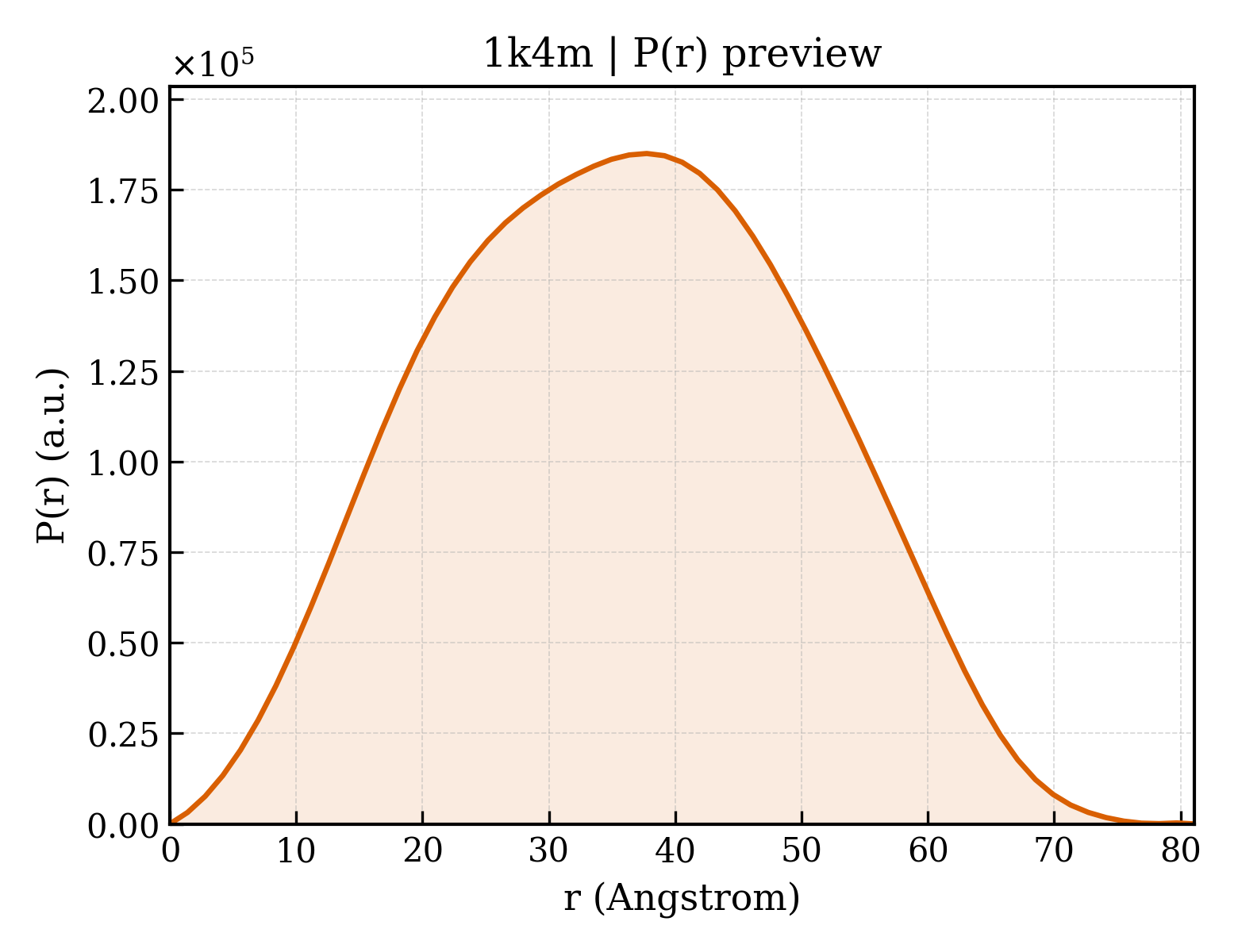

1k4m__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.52 Å
Rg (electron density)	26.05 Å
Total Rg	26.88 Å
Atom count	5370
Residues	639
Excluded volume	95032 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1k4m__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	NaMN adenylyltransferase
Molecular weight formula_weight	24553.9 kDa
EC 编号 ec_number	2.7.7.18
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	5881

MKSLQALFGGTFDPVHYGHLKPVETLANLIGLTRVTIIPNNVPPHRPQPEANSVQRKHMLELAIADKPLFTLDERELKRNAPSYTAQTLKEWRQEQGPDVPLAFIIGQDSLLTFPTWYEYETILDNAHLIVCRRPGYPLEMAQPQYQQWLEDHLTHNPEDLHLQPAGKIYLAETPWFNISATIIRERLQNGESCEDLLPEPVLTYINQQGLYR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	511

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1k4ma_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

Domain ID domain_id	d1k4mb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

Domain ID domain_id	d1k4mc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

CATH v4.4 (3 domains)

Domain ID domain_id	1k4mA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1k4mB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1k4mC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

▶

Unit-cell length a length_a	114.830 Å
Unit-cell length b length_b	113.930 Å
Unit-cell length c length_c	115.670 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2060
R_work r_work	0.2060
R_free r_free	0.2550

Crystal structure of E.coli nicotinic acid mononucleotide adenylyltransferase complexed to deamido-NAD
