1k9m

Co-crystal structure of tylosin bound to the 50S ribosomal subunit of Haloarcula marismortui

Method: X-RAY DIFFRACTION Dmax: 265.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

SAXS profile for 1k9m

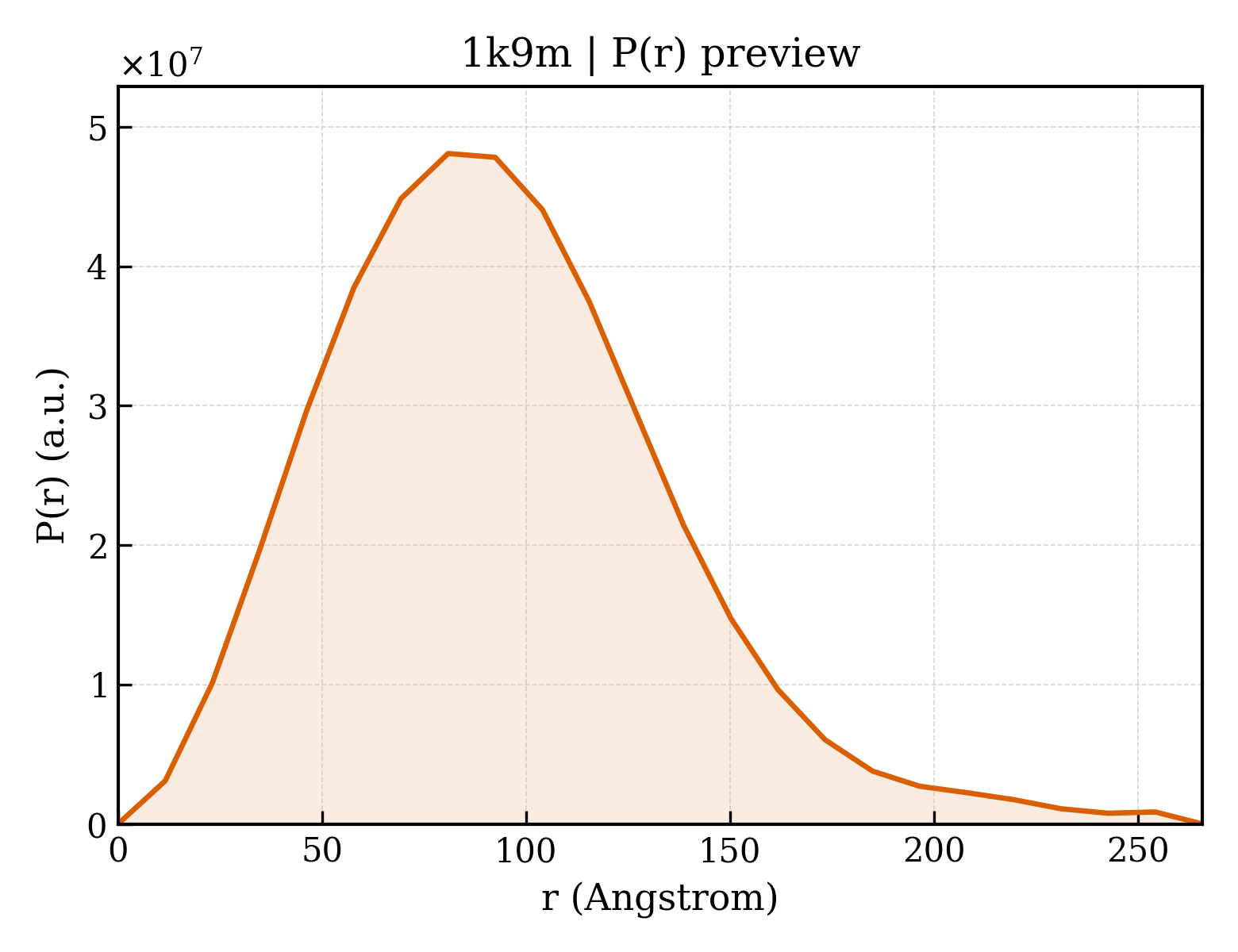

P(r) 距离分布 P(r) Distribution

P(r) distribution for 1k9m
下载 Download
▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id1k9m
沉积日期 deposition_date2001-10-29
结构标题 titleCo-crystal structure of tylosin bound to the 50S ribosomal subunit of Haloarcula marismortui
关键词 keywords50S subunit, tylosin, antibiotic, RIBOSOME; RIBOSOME
实验方法 methodX-RAY DIFFRACTION
▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier68.40 Å
回转半径 Rg (电子) rg_electron69.14 Å
零角强度 I(0) i060232200000.00
分子量 molecular_weight1350100.0 kDa
排除体积 excluded_volume1381800 ų
包络体积 envelope_volume2190900 ų
水化壳体积 shell_volume242140 ų
包络直径 envelope_diameter239.5 Å
壳层 Rg shell_rg81.62 Å
包络 Rg envelope_rg69.00 Å
形状 Rg shape_rg69.24 Å
总 Rg total_rg69.05 Å
总原子数 total_atoms90716
残基数 n_residues6577
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 Å−1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3
▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax265.7 Å
Rg (实空间) rg_real72.26 Å
Rg 误差 (实空间) rg_real_error1.81 Å
I(0) (实空间) i0_real6.0630e+10
I(0) 误差 (实空间) i0_real_error1.2160e+09
Rg (倒空间) rg_reciprocal69.00 Å
I(0) (倒空间) i0_reciprocal60320000000.0000
解质量估计 total_estimate0.8586
解质量评级 solution_quality GOOD a GOOD solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary80.9 Å
偏度 Skewness skewness0.660
峰度 Kurtosis kurtosis0.720
角度范围 angular_range— – 0.1150 Å−1
当前正则化参数 α current_alpha0.8247
最高正则化参数 α highest_alpha7534000000.0000
实空间数据点数 n_real_points24
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.559; Stabil: 0.865; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.915
▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (37)

▼

6. 折叠分类 (SCOP + CATH) 65 domains

SCOP 2.08 (30 domains)

结构域编号 domain_idd1k9m1_
类 Class classg — Small proteins
折叠类型 Fold foldg.41 — Rubredoxin-like
超家族 Superfamily superfamilyg.41.8 — Zn-binding ribosomal proteins
家族 Family familyg.41.8.1 — Ribosomal protein L37ae
结构域编号 domain_idd1k9m2_
类 Class classg — Small proteins
折叠类型 Fold foldg.41 — Rubredoxin-like
超家族 Superfamily superfamilyg.41.8 — Zn-binding ribosomal proteins
家族 Family familyg.41.8.2 — Ribosomal protein L37e
结构域编号 domain_idd1k9m3_
类 Class classa — All alpha proteins
折叠类型 Fold folda.137 — Non-globular all-alpha subunits of globular proteins
超家族 Superfamily superfamilya.137.1 — Ribosomal protein L39e
家族 Family familya.137.1.1 — Ribosomal protein L39e
结构域编号 domain_idd1k9m4_
类 Class classg — Small proteins
折叠类型 Fold foldg.41 — Rubredoxin-like
超家族 Superfamily superfamilyg.41.8 — Zn-binding ribosomal proteins
家族 Family familyg.41.8.3 — Ribosomal protein L44e
结构域编号 domain_idd1k9mc1
类 Class classb — All beta proteins
折叠类型 Fold foldb.34 — SH3-like barrel
超家族 Superfamily superfamilyb.34.5 — Translation proteins SH3-like domain
家族 Family familyb.34.5.3 — C-terminal domain of ribosomal protein L2
结构域编号 domain_idd1k9mc2
类 Class classb — All beta proteins
折叠类型 Fold foldb.40 — OB-fold
超家族 Superfamily superfamilyb.40.4 — Nucleic acid-binding proteins
家族 Family familyb.40.4.5 — Cold shock DNA-binding domain-like
结构域编号 domain_idd1k9md_
类 Class classb — All beta proteins
折叠类型 Fold foldb.43 — Reductase/isomerase/elongation factor common domain
超家族 Superfamily superfamilyb.43.3 — Translation proteins
家族 Family familyb.43.3.2 — Ribosomal protein L3
结构域编号 domain_idd1k9me_
类 Class classc — Alpha and beta proteins (a/b)
折叠类型 Fold foldc.22 — Ribosomal protein L4
超家族 Superfamily superfamilyc.22.1 — Ribosomal protein L4
家族 Family familyc.22.1.1 — Ribosomal protein L4
结构域编号 domain_idd1k9mf_
类 Class classd — Alpha and beta proteins (a+b)
折叠类型 Fold foldd.77 — RL5-like
超家族 Superfamily superfamilyd.77.1 — RL5-like
家族 Family familyd.77.1.1 — Ribosomal protein L5
结构域编号 domain_idd1k9mg1
类 Class classd — Alpha and beta proteins (a+b)
折叠类型 Fold foldd.141 — Ribosomal protein L6
超家族 Superfamily superfamilyd.141.1 — Ribosomal protein L6
家族 Family familyd.141.1.1 — Ribosomal protein L6
结构域编号 domain_idd1k9mg2
类 Class classd — Alpha and beta proteins (a+b)
折叠类型 Fold foldd.141 — Ribosomal protein L6
超家族 Superfamily superfamilyd.141.1 — Ribosomal protein L6
家族 Family familyd.141.1.1 — Ribosomal protein L6
结构域编号 domain_idd1k9mh_
类 Class classd — Alpha and beta proteins (a+b)
折叠类型 Fold foldd.79 — Bacillus chorismate mutase-like
超家族 Superfamily superfamilyd.79.3 — L30e-like
家族 Family familyd.79.3.1 — L30e/L7ae ribosomal proteins
结构域编号 domain_idd1k9mi_
类 Class classj — Peptides
折叠类型 Fold foldj.84 — Ribosomal protein L10
超家族 Superfamily superfamilyj.84.1 — Ribosomal protein L10
家族 Family familyj.84.1.1 — Ribosomal protein L10
结构域编号 domain_idd1k9mj_
类 Class classd — Alpha and beta proteins (a+b)
折叠类型 Fold foldd.41 — alpha/beta-Hammerhead
超家族 Superfamily superfamilyd.41.4 — Ribosomal protein L16p/L10e
家族 Family familyd.41.4.1 — Ribosomal protein L10e
结构域编号 domain_idd1k9mk_
类 Class classc — Alpha and beta proteins (a/b)
折叠类型 Fold foldc.21 — Ribosomal protein L13
超家族 Superfamily superfamilyc.21.1 — Ribosomal protein L13
家族 Family familyc.21.1.1 — Ribosomal protein L13
结构域编号 domain_idd1k9ml_
类 Class classb — All beta proteins
折叠类型 Fold foldb.39 — Ribosomal protein L14
超家族 Superfamily superfamilyb.39.1 — Ribosomal protein L14
家族 Family familyb.39.1.1 — Ribosomal protein L14
结构域编号 domain_idd1k9mm_
类 Class classc — Alpha and beta proteins (a/b)
折叠类型 Fold foldc.12 — Ribosomal proteins L15p and L18e
超家族 Superfamily superfamilyc.12.1 — Ribosomal proteins L15p and L18e
家族 Family familyc.12.1.1 — Ribosomal proteins L15p and L18e
结构域编号 domain_idd1k9mn_
类 Class classd — Alpha and beta proteins (a+b)
折叠类型 Fold foldd.12 — Ribosomal proteins S24e, L23 and L15e
超家族 Superfamily superfamilyd.12.1 — Ribosomal proteins S24e, L23 and L15e
家族 Family familyd.12.1.2 — L15e
结构域编号 domain_idd1k9mo_
类 Class classc — Alpha and beta proteins (a/b)
折叠类型 Fold foldc.55 — Ribonuclease H-like motif
超家族 Superfamily superfamilyc.55.4 — Translational machinery components
家族 Family familyc.55.4.1 — Ribosomal protein L18 and S11
结构域编号 domain_idd1k9mp_
类 Class classc — Alpha and beta proteins (a/b)
折叠类型 Fold foldc.12 — Ribosomal proteins L15p and L18e
超家族 Superfamily superfamilyc.12.1 — Ribosomal proteins L15p and L18e
家族 Family familyc.12.1.1 — Ribosomal proteins L15p and L18e
结构域编号 domain_idd1k9mq_
类 Class classa — All alpha proteins
折叠类型 Fold folda.94 — Ribosomal protein L19 (L19e)
超家族 Superfamily superfamilya.94.1 — Ribosomal protein L19 (L19e)
家族 Family familya.94.1.1 — Ribosomal protein L19 (L19e)
结构域编号 domain_idd1k9mr_
类 Class classb — All beta proteins
折叠类型 Fold foldb.34 — SH3-like barrel
超家族 Superfamily superfamilyb.34.5 — Translation proteins SH3-like domain
家族 Family familyb.34.5.1 — Ribosomal proteins L24p and L21e
结构域编号 domain_idd1k9ms_
类 Class classd — Alpha and beta proteins (a+b)
折叠类型 Fold foldd.55 — Ribosomal protein L22
超家族 Superfamily superfamilyd.55.1 — Ribosomal protein L22
家族 Family familyd.55.1.1 — Ribosomal protein L22
结构域编号 domain_idd1k9mt_
类 Class classd — Alpha and beta proteins (a+b)
折叠类型 Fold foldd.12 — Ribosomal proteins S24e, L23 and L15e
超家族 Superfamily superfamilyd.12.1 — Ribosomal proteins S24e, L23 and L15e
家族 Family familyd.12.1.1 — L23p
结构域编号 domain_idd1k9mu_
类 Class classb — All beta proteins
折叠类型 Fold foldb.34 — SH3-like barrel
超家族 Superfamily superfamilyb.34.5 — Translation proteins SH3-like domain
家族 Family familyb.34.5.1 — Ribosomal proteins L24p and L21e
结构域编号 domain_idd1k9mv_
类 Class classg — Small proteins
折叠类型 Fold foldg.39 — Glucocorticoid receptor-like (DNA-binding domain)
超家族 Superfamily superfamilyg.39.1 — Glucocorticoid receptor-like (DNA-binding domain)
家族 Family familyg.39.1.6 — Ribosomal protein L24e
结构域编号 domain_idd1k9mw_
类 Class classa — All alpha proteins
折叠类型 Fold folda.2 — Long alpha-hairpin
超家族 Superfamily superfamilya.2.2 — Ribosomal protein L29 (L29p)
家族 Family familya.2.2.1 — Ribosomal protein L29 (L29p)
结构域编号 domain_idd1k9mx_
类 Class classd — Alpha and beta proteins (a+b)
折叠类型 Fold foldd.59 — Ribosomal protein L30p/L7e
超家族 Superfamily superfamilyd.59.1 — Ribosomal protein L30p/L7e
家族 Family familyd.59.1.1 — Ribosomal protein L30p/L7e
结构域编号 domain_idd1k9my_
类 Class classd — Alpha and beta proteins (a+b)
折叠类型 Fold foldd.29 — Ribosomal protein L31e
超家族 Superfamily superfamilyd.29.1 — Ribosomal protein L31e
家族 Family familyd.29.1.1 — Ribosomal protein L31e
结构域编号 domain_idd1k9mz_
类 Class classc — Alpha and beta proteins (a/b)
折叠类型 Fold foldc.9 — Barstar-like
超家族 Superfamily superfamilyc.9.2 — Ribosomal protein L32e
家族 Family familyc.9.2.1 — Ribosomal protein L32e

CATH v4.4 (35 domains)

结构域编号 domain_id1k9m100
类 Class class2 — Mainly Beta
架构 Architecture architecture20 — Single Sheet
拓扑 Topology topology25 — N-terminal domain of TfIIb
同源超家族 H-superfamily homologous superfamily30 —
结构域编号 domain_id1k9m200
类 Class class2 — Mainly Beta
架构 Architecture architecture20 — Single Sheet
拓扑 Topology topology25 — N-terminal domain of TfIIb
同源超家族 H-superfamily homologous superfamily30 —
结构域编号 domain_id1k9m300
类 Class class1 — Mainly Alpha
架构 Architecture architecture10 — Orthogonal Bundle
拓扑 Topology topology1620 — Atp Synthase Epsilon Chain; Chain: I;
同源超家族 H-superfamily homologous superfamily10 — Ribosomal protein L39
结构域编号 domain_id1k9m400
类 Class class3 — Alpha Beta
架构 Architecture architecture10 — Roll
拓扑 Topology topology450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily80 —
结构域编号 domain_id1k9mC01
类 Class class2 — Mainly Beta
架构 Architecture architecture30 — Roll
拓扑 Topology topology30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily30 —
结构域编号 domain_id1k9mC02
类 Class class2 — Mainly Beta
架构 Architecture architecture40 — Beta Barrel
拓扑 Topology topology50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily140 — Nucleic acid-binding proteins
结构域编号 domain_id1k9mC03
类 Class class4 — Few Secondary Structures
架构 Architecture architecture10 — Irregular
拓扑 Topology topology950 — Ribosomal protein L2; domain 3
同源超家族 H-superfamily homologous superfamily10 — Ribosomal protein L2, domain 3
结构域编号 domain_id1k9mD01
类 Class class2 — Mainly Beta
架构 Architecture architecture40 — Beta Barrel
拓扑 Topology topology30 — Elongation Factor Tu (Ef-tu); domain 3
同源超家族 H-superfamily homologous superfamily10 — Translation factors
结构域编号 domain_id1k9mD02
类 Class class3 — Alpha Beta
架构 Architecture architecture30 — 2-Layer Sandwich
拓扑 Topology topology1430 — Ribosomal Protein L3; Chain: B; domain 2,
同源超家族 H-superfamily homologous superfamily10 —
结构域编号 domain_id1k9mD03
类 Class class4 — Few Secondary Structures
架构 Architecture architecture10 — Irregular
拓扑 Topology topology960 — Ribosomal protein L3; domain 3
同源超家族 H-superfamily homologous superfamily10 — Ribosomal protein L3, domain 3
结构域编号 domain_id1k9mE00
类 Class class3 — Alpha Beta
架构 Architecture architecture40 — 3-Layer(aba) Sandwich
拓扑 Topology topology1370 — Ribosomal Protein L4; Chain: A;
同源超家族 H-superfamily homologous superfamily10 — Ribosomal protein L4/L1
结构域编号 domain_id1k9mF00
类 Class class3 — Alpha Beta
架构 Architecture architecture30 — 2-Layer Sandwich
拓扑 Topology topology1440 — 50s Ribosomal Protein L5; Chain: A,
同源超家族 H-superfamily homologous superfamily10 — Ribosomal protein L5
结构域编号 domain_id1k9mG01
类 Class class3 — Alpha Beta
架构 Architecture architecture90 — Alpha-Beta Complex
拓扑 Topology topology930 — Outer Surface Protein A; domain 3
同源超家族 H-superfamily homologous superfamily12 — Ribosomal protein L6
结构域编号 domain_id1k9mG02
类 Class class3 — Alpha Beta
架构 Architecture architecture90 — Alpha-Beta Complex
拓扑 Topology topology930 — Outer Surface Protein A; domain 3
同源超家族 H-superfamily homologous superfamily12 — Ribosomal protein L6
结构域编号 domain_id1k9mH00
类 Class class3 — Alpha Beta
架构 Architecture architecture30 — 2-Layer Sandwich
拓扑 Topology topology1330 — 60s Ribosomal Protein L30; Chain: A;
同源超家族 H-superfamily homologous superfamily30 — Ribosomal protein L30/S12
结构域编号 domain_id1k9mJ00
类 Class class3 — Alpha Beta
架构 Architecture architecture90 — Alpha-Beta Complex
拓扑 Topology topology1170 — Aldehyde Oxidoreductase; domain 3
同源超家族 H-superfamily homologous superfamily10 — Ribosomal protein L16/L10
结构域编号 domain_id1k9mK00
类 Class class3 — Alpha Beta
架构 Architecture architecture90 — Alpha-Beta Complex
拓扑 Topology topology1180 — Ribosomal Protein L13p; Chain: A;
同源超家族 H-superfamily homologous superfamily10 — Ribosomal protein L13
结构域编号 domain_id1k9mL00
类 Class class2 — Mainly Beta
架构 Architecture architecture40 — Beta Barrel
拓扑 Topology topology150 — Ribosomal Protein L14
同源超家族 H-superfamily homologous superfamily20 — Ribosomal protein L14/L23
结构域编号 domain_id1k9mM01
类 Class class4 — Few Secondary Structures
架构 Architecture architecture10 — Irregular
拓扑 Topology topology990 — Molecule: Ribosomal Protein L15; Chain: K; domain 1
同源超家族 H-superfamily homologous superfamily10 —
结构域编号 domain_id1k9mM02
类 Class class3 — Alpha Beta
架构 Architecture architecture100 — Ribosomal Protein L15; Chain: K; domain 2
拓扑 Topology topology10 — Ribosomal Protein L15; Chain: K; domain 2
同源超家族 H-superfamily homologous superfamily10 —
结构域编号 domain_id1k9mN00
类 Class class3 — Alpha Beta
架构 Architecture architecture40 — 3-Layer(aba) Sandwich
拓扑 Topology topology1120 — Ribosomal protein L15e
同源超家族 H-superfamily homologous superfamily10 — Ribosomal protein L15
结构域编号 domain_id1k9mO00
类 Class class3 — Alpha Beta
架构 Architecture architecture30 — 2-Layer Sandwich
拓扑 Topology topology420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily100 —
结构域编号 domain_id1k9mP00
类 Class class3 — Alpha Beta
架构 Architecture architecture100 — Ribosomal Protein L15; Chain: K; domain 2
拓扑 Topology topology10 — Ribosomal Protein L15; Chain: K; domain 2
同源超家族 H-superfamily homologous superfamily10 —
结构域编号 domain_id1k9mQ01
类 Class class1 — Mainly Alpha
架构 Architecture architecture10 — Orthogonal Bundle
拓扑 Topology topology1650 — 50s Ribosomal Protein L19e, Chain O, domain 1
同源超家族 H-superfamily homologous superfamily10 —
结构域编号 domain_id1k9mQ02
类 Class class1 — Mainly Alpha
架构 Architecture architecture10 — Orthogonal Bundle
拓扑 Topology topology1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
同源超家族 H-superfamily homologous superfamily60 —
结构域编号 domain_id1k9mQ03
类 Class class1 — Mainly Alpha
架构 Architecture architecture20 — Up-down Bundle
拓扑 Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily560 — Single Heli x bin
结构域编号 domain_id1k9mR00
类 Class class2 — Mainly Beta
架构 Architecture architecture30 — Roll
拓扑 Topology topology30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily70 — Ribosomal protein L21
结构域编号 domain_id1k9mS00
类 Class class3 — Alpha Beta
架构 Architecture architecture90 — Alpha-Beta Complex
拓扑 Topology topology470 — Ribosomal Protein L22; Chain A
同源超家族 H-superfamily homologous superfamily10 — Ribosomal protein L22/L17
结构域编号 domain_id1k9mT00
类 Class class3 — Alpha Beta
架构 Architecture architecture30 — 2-Layer Sandwich
拓扑 Topology topology70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily330 — RRM (RNA recognition motif) domain
结构域编号 domain_id1k9mU00
类 Class class2 — Mainly Beta
架构 Architecture architecture30 — Roll
拓扑 Topology topology30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily30 —
结构域编号 domain_id1k9mV00
类 Class class2 — Mainly Beta
架构 Architecture architecture30 — Roll
拓扑 Topology topology170 — Ribosomal Protein L24e; Chain: T;
同源超家族 H-superfamily homologous superfamily20 — Ribosomal protein L24
结构域编号 domain_id1k9mW00
类 Class class1 — Mainly Alpha
架构 Architecture architecture10 — Orthogonal Bundle
拓扑 Topology topology287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily310 —
结构域编号 domain_id1k9mX01
类 Class class3 — Alpha Beta
架构 Architecture architecture30 — 2-Layer Sandwich
拓扑 Topology topology1390 — Ribosomal Protein L30; Chain: A,
同源超家族 H-superfamily homologous superfamily20 — Ribosomal protein L30/L7
结构域编号 domain_id1k9mX02
类 Class class1 — Mainly Alpha
架构 Architecture architecture10 — Orthogonal Bundle
拓扑 Topology topology15 — 3-methyladenine DNA Glycosylase II; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily30 — Ribosomal protein L30/L7, central domain
结构域编号 domain_id1k9mY00
类 Class class3 — Alpha Beta
架构 Architecture architecture10 — Roll
拓扑 Topology topology440 — Ribosomal Protein L31e; Chain: W;
同源超家族 H-superfamily homologous superfamily10 — Ribosomal protein L31
▶

7. 引用文献 (1)

▶

8. 文件与曲线 (10)
