1lqs

CRYSTAL STRUCTURE OF HUMAN CYTOMEGALOVIRUS IL-10 BOUND TO SOLUBLE HUMAN IL-10R1

Method: X-RAY DIFFRACTION D_max: 124.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

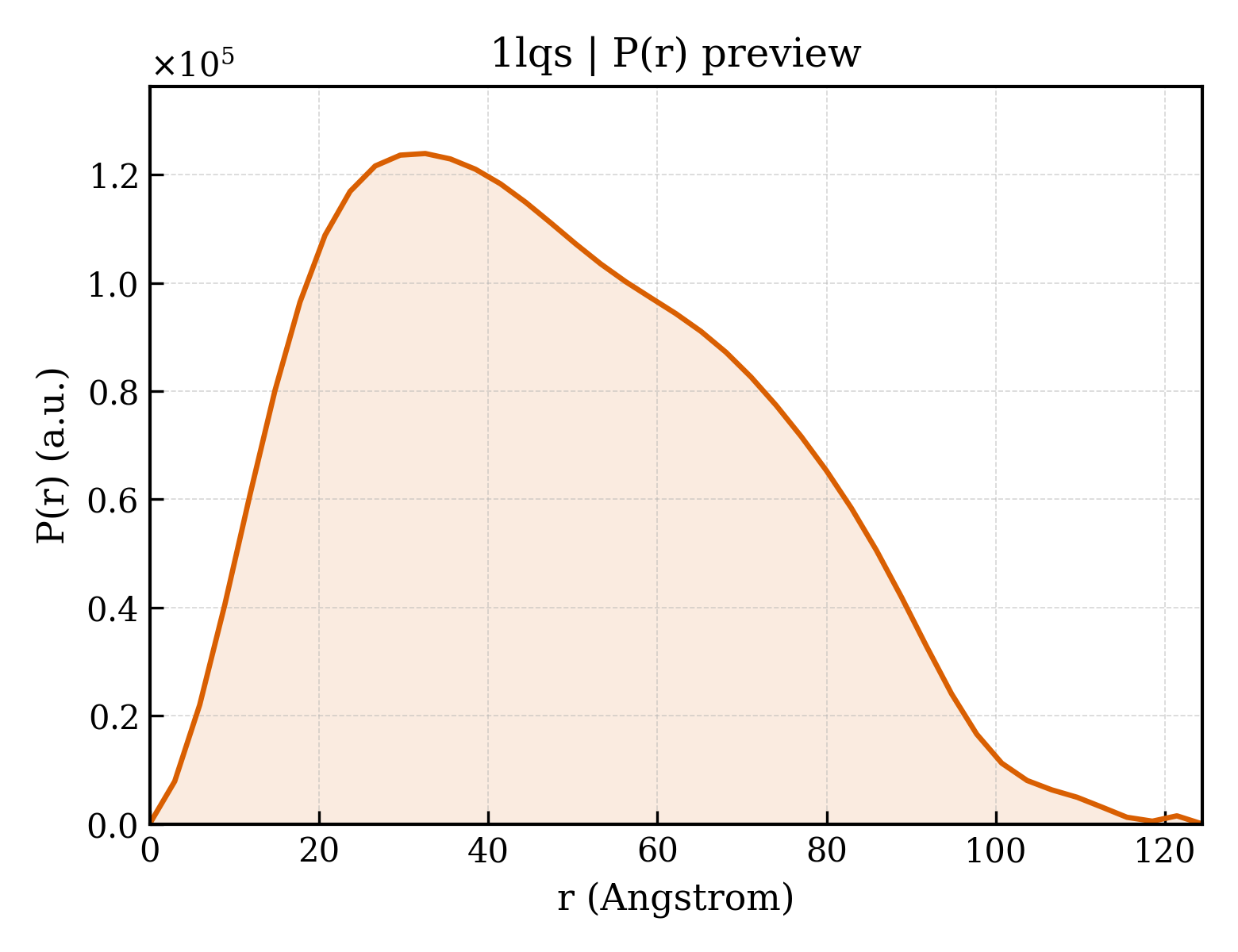

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1lqs
沉积日期 deposition_date	2002-05-13
结构标题 title	CRYSTAL STRUCTURE OF HUMAN CYTOMEGALOVIRUS IL-10 BOUND TO SOLUBLE HUMAN IL-10R1
关键词 keywords	interleukin 10, helix bundle, receptor complex, molecular recognition, structure mimic, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.45 Å
回转半径 Rg (电子) rg_electron	37.41 Å
零角强度 I(0) i0	101584000.00
分子量 molecular_weight	80231.0 kDa
排除体积 excluded_volume	99958 Å³
包络体积 envelope_volume	137400 Å³
水化壳体积 shell_volume	31722 Å³
包络直径 envelope_diameter	130.4 Å
壳层 Rg shell_rg	41.71 Å
包络 Rg envelope_rg	36.98 Å
形状 Rg shape_rg	37.42 Å
总 Rg total_rg	37.68 Å
总原子数 total_atoms	5651
残基数 n_residues	697
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	124.4 Å
Rg (实空间) rg_real	37.68 Å
Rg 误差 (实空间) rg_real_error	1.32 Å
I(0) (实空间) i0_real	1.0160e+08
I(0) 误差 (实空间) i0_real_error	1.7230e+06
Rg (倒空间) rg_reciprocal	37.55 Å
I(0) (倒空间) i0_reciprocal	101600000.0000
解质量估计 total_estimate	0.8563
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.6 Å
偏度 Skewness skewness	0.327
峰度 Kurtosis kurtosis	-0.682
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7114000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.858; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.821; Smooth: 0.732

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	INTERLEUKIN-10 RECEPTOR ALPHA CHAIN
分子量 formula_weight	24506.6 kDa
突变 mutation	N29Q,N53Q,N89Q,N133Q,N156Q,N168Q
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R,S
原子数 atom_count	5699

HGTELPSPPSVWFEAEFFHHILHWTPIPQQSESTCYEVALLRYGIESWNSISQCSQTLSYDLTAVTLDLYHSNGYRARVRAVDGSRHSQWTVTNTRFSVDEVTLTVGSVNLEIHNGFILGKIQLPRPKMAPAQDTYESIFSHFREYEIAIRKVPGQFTFTHKKVKHEQFSLLTSGEVGEFCVQVKPSVASRSNKGMWSKEECISLTRQYFTVTN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Drosophila melanogaster

Entity 2 polymer

描述 description	INTERLEUKIN-10-LIKE PROTEIN
分子量 formula_weight	18141.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,M

SEEAKPATTTTIKNTKPQCRPEDYATRLQDLRVTFHRVKPTLQREDDYSVWLDGTVVKGCWGCSVMDWLLRRYLEIVFPAGDHVYPGLKTELHSMRSTLESIYKDMRQCPLLGCGDKSVISRLSQEAERKSDNGTRKGLSELDTLFSRLEEYLHSRK

来源 Source

来源生物 organism	Human herpesvirus 5
通用名 common_name	Human cytomegalovirus
NCBI 分类编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Drosophila melanogaster

Entity 3 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	48

▼

6. 折叠分类 (SCOP + CATH) 14 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1lqsl_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.26 — 4-helical cytokines
超家族 Superfamily superfamily	a.26.1 — 4-helical cytokines
家族 Family family	a.26.1.3 — Interferons/interleukin-10 (IL-10)

结构域编号 domain_id	d1lqsm_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.26 — 4-helical cytokines
超家族 Superfamily superfamily	a.26.1 — 4-helical cytokines
家族 Family family	a.26.1.3 — Interferons/interleukin-10 (IL-10)

结构域编号 domain_id	d1lqsr1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.2 — Fibronectin type III
家族 Family family	b.1.2.1 — Fibronectin type III

结构域编号 domain_id	d1lqsr2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.2 — Fibronectin type III
家族 Family family	b.1.2.1 — Fibronectin type III

结构域编号 domain_id	d1lqss1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.2 — Fibronectin type III
家族 Family family	b.1.2.1 — Fibronectin type III

结构域编号 domain_id	d1lqss2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.2 — Fibronectin type III
家族 Family family	b.1.2.1 — Fibronectin type III

CATH v4.4 (8 domains)

结构域编号 domain_id	1lqsL01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1250 — Growth Hormone; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1lqsL02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	340 — Interleukin-10; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Interleukin-10, domain 2

结构域编号 domain_id	1lqsM01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1250 — Growth Hormone; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1lqsM02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	340 — Interleukin-10; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Interleukin-10, domain 2

结构域编号 domain_id	1lqsR01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1lqsR02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1lqsS01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1lqsS02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	114.290 Å
晶胞边长 b length_b	104.680 Å
晶胞边长 c length_c	91.890 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	106.49 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	—
R_work r_work	0.2440
R_free r_free	0.2940

fit	/app/data/saxs_computation/lq/1lqs/1lqs.fit
pddf	/app/data/pr_computation/lq/1lqs/1lqs.pr.out
profile	/app/data/saxs_computation/lq/1lqs/1lqs.dat
