SAXSdb — 1me4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CRUZIPAIN

Trypanosoma cruzi

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	[1-(1-BENZYL-3-HYDROXY-2-OXO-PROPYLCARBAMOYL)-2-PHENYL-ETHYL]-CARBAMIC ACID BENZYL ESTER × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYSP_TRYCR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–215； UniProt 123–337

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1me4
Deposition date deposition_date	2002-08-07
Structure title title	High Resolution Crystal Structure Analysis Of Cruzain non-covalently Bound To A Hydroxymethyl Ketone Inhibitor (I)
Keywords keywords	cysteine protease, non-covalent inhibitor, Hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1me4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

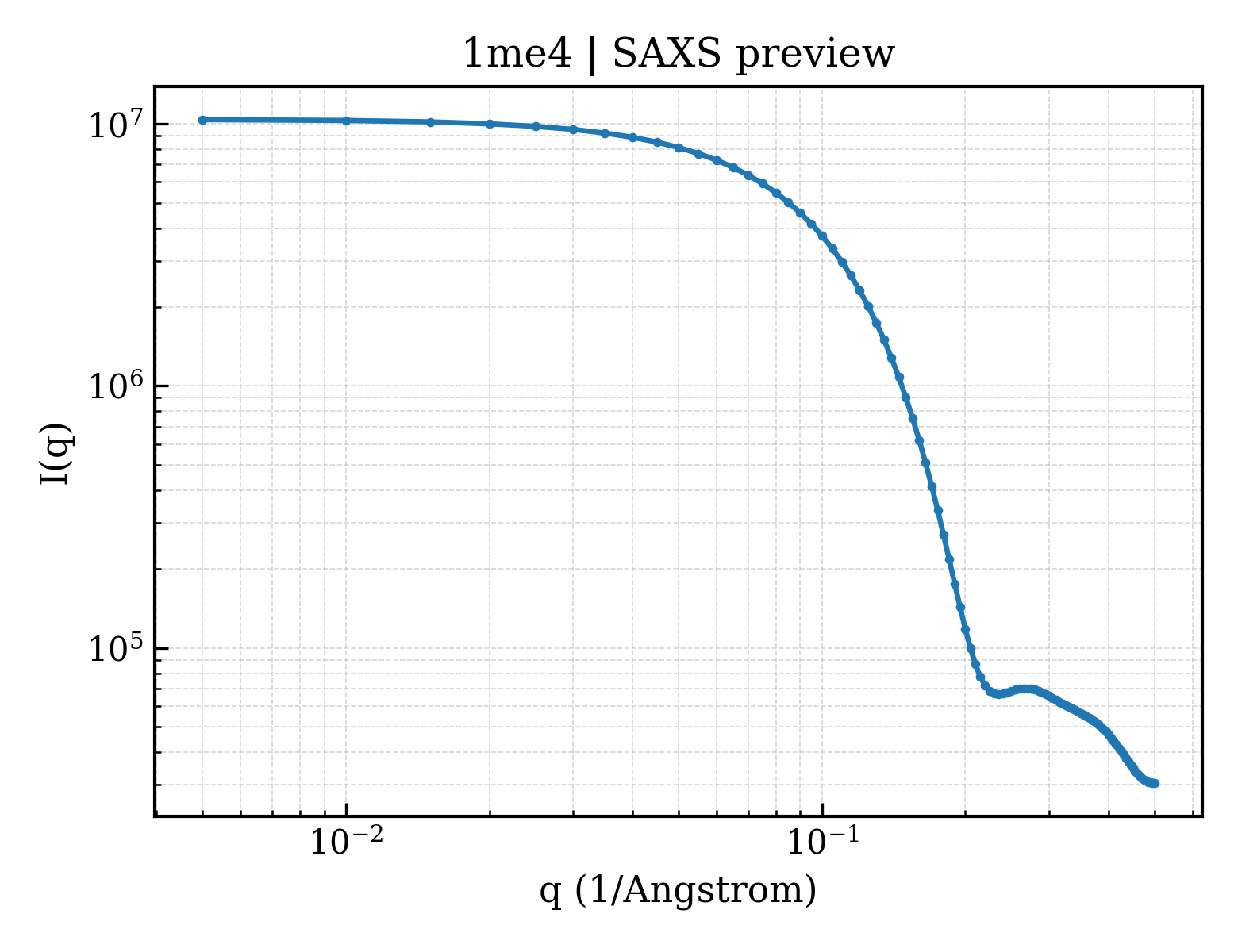

1me4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1me4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.26 Å
Rg (electron density)	16.10 Å
Total Rg	17.14 Å
Atom count	1627
Residues	215
Excluded volume	28557 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1me4__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CRUZIPAIN
Molecular weight formula_weight	22715.1 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2135

APAAVDWRARGAVTAVKDQGQCGSCWAFSAIGNVECQWFLAGHPLTNLSEQMLVSCDKTDSGCSGGLMNNAFEWIVQENNGAVYTEDSYPYASGEGISPPCTTSGHTVGATITGHVELPQDEAQIAAWLAVNGPVAVAVDASSWMTYTGGVMTSCVSEQLDHGVLLVGYNDSAAVPYWIIKNSWTTQWGEEGYIRIAKGSNQCLVKEEASSAVVG

Source Source

Source organism organism	Trypanosoma cruzi
NCBI taxonomy ID ncbi_taxonomy_id	5693
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	[1-(1-BENZYL-3-HYDROXY-2-OXO-PROPYLCARBAMOYL)-2-PHENYL-ETHYL]-CARBAMIC ACID BENZYL ESTER
Molecular weight formula_weight	460.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	484

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1me4a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.1 — Papain-like

CATH v4.4 (1 domains)

Domain ID domain_id	1me4A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

▶

Unit-cell length a length_a	42.523 Å
Unit-cell length b length_b	51.712 Å
Unit-cell length c length_c	46.040 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	116.53 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.200 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

High Resolution Crystal Structure Analysis Of Cruzain non-covalently Bound To A Hydroxymethyl Ketone Inhibitor (I)
