SAXSdb — 1mv0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myc proto-oncogene protein

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 55–68	Fragment：residues 55-68	Myc box-dependent-interacting protein 1 × 1 （O00499）	SOLUTION NMR NMR measurement conditions：pH 6.5；298 K；Ionic strength (raw mmCIF value) 300e-3；Pressure ambient NMR sample composition：1.4 mM Bin1(402-482)/c-Myc(55-68) U-15N, 13C, 25 mM sodium phosphate, 150 mM NaCl, 1 mM DTT, 95% H2O, 5% D2O pH=6.5 \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1MV0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A93 NMR SOLUTION STRUCTURE OF THE C-MYC-MAX HETERODIMERIC LEUCINE ZIPPER, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1998-04-15	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 406–434（29 aa） Fragment：HETERODIMERIC LEUCINE ZIPPER	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.8；298 K；Ionic strength (raw mmCIF value) 10mM；Pressure 1 NMR sample composition WATER	Resolution not provided
1EE4 CRYSTAL STRUCTURE OF YEAST KARYOPHERIN (IMPORTIN) ALPHA IN A COMPLEX WITH A C-MYC NLS PEPTIDE Deposited 2000-01-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 320–328（9 aa） Fragment：NLS (NUCLEAR LOCALIZATION SIGNAL) AT THE LARGER (FUNCTIONAL) BINDING SITE Chain D 320–328（9 aa） Fragment：NLS (NUCLEAR LOCALIZATION SIGNAL) AT THE LARGER (FUNCTIONAL) BINDING SITE	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.277
1EE4 CRYSTAL STRUCTURE OF YEAST KARYOPHERIN (IMPORTIN) ALPHA IN A COMPLEX WITH A C-MYC NLS PEPTIDE Deposited 2000-01-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 320–328（9 aa） Fragment：NLS (NUCLEAR LOCALIZATION SIGNAL) AT THE LARGER (FUNCTIONAL) BINDING SITE Chain F 320–328（9 aa） Fragment：NLS (NUCLEAR LOCALIZATION SIGNAL) AT THE LARGER (FUNCTIONAL) BINDING SITE	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.277
1NKP Crystal structure of Myc-Max recognizing DNA Deposited 2003-01-03	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 353–434（82 aa） Fragment：bHLHZ region	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å R-free 0.263
1NKP Crystal structure of Myc-Max recognizing DNA Deposited 2003-01-03	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain D 353–434（82 aa） Fragment：bHLHZ region	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å R-free 0.263
2A93 NMR SOLUTION STRUCTURE OF THE C-MYC-MAX HETERODIMERIC LEUCINE ZIPPER, 40 STRUCTURES Deposited 1998-06-09	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 406–434（29 aa） Fragment：LEUCINE ZIPPER	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.8；298 K；Ionic strength (raw mmCIF value) 100 mM；Pressure 1 NMR sample composition WATER	Resolution not provided
5I4Z Structure of apo OmoMYC Deposited 2016-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 348–439（92 aa） Fragment：OmoMYC, UNP Residues 348-439 Chain B 348–439（92 aa） Fragment：OmoMYC, UNP Residues 348-439	Not recorded	GOL GLYCEROL × 3 CL CHLORIDE ION × 3 K POTASSIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293.15 K；MES, potassium sodium tartrate	Resolution 1.95 Å R-free 0.194
5I50 Structure of OmoMYC bound to double-stranded DNA Deposited 2016-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 350–439（90 aa） Fragment：OmoMYC, UNP Residues 350-439 Chain B 350–439（90 aa） Fragment：OmoMYC, UNP Residues 350-439	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；293.15 K；MES, magnesium sulfate, potassium chloride, PEG 400	Resolution 2.70 Å R-free 0.279
6E16 Ternary structure of c-Myc-TBP-TAF1 Deposited 2018-07-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 96–125（30 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；291 K；20% (w/w) PEG8000, 0.2M ammonium sulfare, and 0.1M HEPES pH7.5	Resolution 2.40 Å R-free 0.220
6E24 Ternary structure of c-Myc-TBP-TAF1 Deposited 2018-07-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 96–125（30 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；16% W/V PEG3350 0.05M CITRIC ACID 0.05M BIS-TRIS PROPANE pH5.0	Resolution 3.00 Å R-free 0.224
6G6J The crystal structures of Human MYC:MAX bHLHZip complex Deposited 2018-04-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 351–437（87 aa）	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；20% (w/v) PEG 3350 0.2M sodium sulfate decahydrate, pH 7	Resolution 2.25 Å R-free 0.236
6G6J The crystal structures of Human MYC:MAX bHLHZip complex Deposited 2018-04-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 351–437（87 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；20% (w/v) PEG 3350 0.2M sodium sulfate decahydrate, pH 7	Resolution 2.25 Å R-free 0.236
6G6K The crystal structures of Human MYC:MAX bHLHZip complex Deposited 2018-04-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 351–437（87 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；10% w/v PEG 8000, 20% v/v ethylene glycol, 0.075 %(w/v) of each Additive, 5 %(v/v) EtOH, 0.1 M MOPS/HEPES-Na, pH 7.5, Additive: 0.75 %(w/v) menthol, 0.75 %(w/v) caffeic acid, 0.75 %(w/v) D-quinic acid, 0.75 %(w/v) shikimic acid, 0.75 %(w/v) gallic acid monohydrate, 0.75 %(w/v) N-vanillylnonanamide.	Resolution 1.35 Å R-free 0.203
6G6K The crystal structures of Human MYC:MAX bHLHZip complex Deposited 2018-04-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 351–437（87 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；10% w/v PEG 8000, 20% v/v ethylene glycol, 0.075 %(w/v) of each Additive, 5 %(v/v) EtOH, 0.1 M MOPS/HEPES-Na, pH 7.5, Additive: 0.75 %(w/v) menthol, 0.75 %(w/v) caffeic acid, 0.75 %(w/v) D-quinic acid, 0.75 %(w/v) shikimic acid, 0.75 %(w/v) gallic acid monohydrate, 0.75 %(w/v) N-vanillylnonanamide.	Resolution 1.35 Å R-free 0.203
6G6L The crystal structures of Human MYC:MAX bHLHZip complex Deposited 2018-04-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 351–437（87 aa）	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；10% w/v PEG 8000, 20% v/v ethylene glycol, 15% PEG 8000 15, 0.2M ammonium sulfate, pH 7	Resolution 2.20 Å R-free 0.268
6G6L The crystal structures of Human MYC:MAX bHLHZip complex Deposited 2018-04-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 351–437（87 aa）	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；10% w/v PEG 8000, 20% v/v ethylene glycol, 15% PEG 8000 15, 0.2M ammonium sulfate, pH 7	Resolution 2.20 Å R-free 0.268
6G6L The crystal structures of Human MYC:MAX bHLHZip complex Deposited 2018-04-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 351–437（87 aa）	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；10% w/v PEG 8000, 20% v/v ethylene glycol, 15% PEG 8000 15, 0.2M ammonium sulfate, pH 7	Resolution 2.20 Å R-free 0.268
6G6L The crystal structures of Human MYC:MAX bHLHZip complex Deposited 2018-04-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 351–437（87 aa）	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；10% w/v PEG 8000, 20% v/v ethylene glycol, 15% PEG 8000 15, 0.2M ammonium sulfate, pH 7	Resolution 2.20 Å R-free 0.268
8J2Q Crystal structure of Cypovirus Polyhedra mutant fused with c-Myc fragment Deposited 2023-04-15	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 417–427（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions SMALL TUBES；293 K；cell-free crystallization	Resolution 1.92 Å R-free 0.245
8OTS OCT4 and MYC-MAX co-bound to a nucleosome Deposited 2023-04-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 11 PDB declaration: tridecameric	Chain M 351–437（87 aa）	Not recorded	PTD PENTANEDIAL × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8OTT MYC-MAX bound to a nucleosome at SHL+5.8 Deposited 2023-04-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain M 368–420（53 aa）	Not recorded	PTD PENTANEDIAL × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8WLG Crystal structure of Cypovirus Polyhedra mutant fused with c-Myc fragment Deposited 2023-09-29	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 417–426（10 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions SMALL TUBES；293 K；cell-free crystallization	Resolution 2.55 Å R-free 0.270
8X8S Crystal structure of Cypovirus Polyhedra mutant fused with c-Myc fragment Deposited 2023-11-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 417–427（11 aa）	Mutation：R151K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions SMALL TUBES；293 K；cell-free crystallization	Resolution 2.04 Å R-free 0.265
8X8V Crystal structure of Cypovirus Polyhedra mutant fused with c-Myc fragment Deposited 2023-11-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 417–427（11 aa）	Mutation：R151K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions SMALL TUBES；293 K；cell-free crystallization	Resolution 2.00 Å R-free 0.251
9QNH Myc pS294 phosphopeptide binding to 14-3-3sigma Deposited 2025-03-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain P 290–298（9 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2 CA CALCIUM ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7 0.19 M CaCl2 5% glycerol 24-29% PEG400	Resolution 1.30 Å R-free 0.167

18 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MYC_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–14； UniProt 55–68

Myc box-dependent-interacting protein 1

Homo sapiens

UniProt O00499

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 513–593	Fragment：residues 513-593	Myc proto-oncogene protein × 1 （P01106）	SOLUTION NMR NMR measurement conditions：pH 6.5；298 K；Ionic strength (raw mmCIF value) 300e-3；Pressure ambient NMR sample composition：1.4 mM Bin1(402-482)/c-Myc(55-68) U-15N, 13C, 25 mM sodium phosphate, 150 mM NaCl, 1 mM DTT, 95% H2O, 5% D2O pH=6.5 \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1MV0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1MUZ NMR STRUCTURE OF THE TUMOR SUPPRESSOR BIN1: ALTERNATIVE SPLICING IN MELANOMA AND INTERACTION WITH C-MYC Deposited 2002-09-24	Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 513–593（81 aa） Fragment：residues 513-593	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 300e-3；Pressure ambient NMR sample composition 1.5 mM Bin1(402-482) U-15N, 13C 25 mM sodium phosphate buffer, 150 mM NaCl, 1 mM DTT, 95% H2O, 5% D2O pH=6.5 \| 95% H2O/5% D2O	Resolution not provided
1MV3 NMR STRUCTURE OF THE TUMOR SUPPRESSOR BIN1: ALTERNATIVE SPLICING IN MELANOMA AND INTERACTION WITH C-MYC Deposited 2002-09-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 301–377（77 aa） Fragment：isoform BIN1+12A (residues 301-377, 458-594) Chain A 458–593（136 aa） Fragment：isoform BIN1+12A (residues 301-377, 458-594)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 300e-3；Pressure ambient NMR sample composition 1.3 mM Bin1(270-482,+12A) U-15N, 13C, 25 mM sodium phosphate, 150 mM NaCl, 1 mM DTT, 95 % H2O, 5% D2O \| 95% H2O/5% D2O	Resolution not provided
2FIC The crystal structure of the BAR domain from human Bin1/Amphiphysin II and its implications for molecular recognition Deposited 2005-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–241（241 aa） Fragment：BAR domain Chain B 1–241（241 aa） Fragment：BAR domain	Not recorded	XE XENON × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；20% monomethylether-PEG550, 100mM Tris (pH 8), 100mM NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.280
2FIC The crystal structure of the BAR domain from human Bin1/Amphiphysin II and its implications for molecular recognition Deposited 2005-12-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–241（241 aa） Fragment：BAR domain	Not recorded	XE XENON × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；20% monomethylether-PEG550, 100mM Tris (pH 8), 100mM NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.280
2FIC The crystal structure of the BAR domain from human Bin1/Amphiphysin II and its implications for molecular recognition Deposited 2005-12-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–241（241 aa） Fragment：BAR domain	Not recorded	XE XENON × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；20% monomethylether-PEG550, 100mM Tris (pH 8), 100mM NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.280
2RMY Structure of the N-terminal BARpeptide in SDS micelles Deposited 2007-12-03	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–33（33 aa） Fragment：UNP residues 1-33	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 1mM [U-100% 15N] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2RND Structure of the N-terminal BARpeptide in DPC micelles Deposited 2007-12-16	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–33（33 aa） Fragment：BARpeptide, UNP residues 1-33	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 1mM [U-100% 15N] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5I22 Amphiphysin SH3 in complex with Chikungunya virus nsP3 peptide Deposited 2016-02-04	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 513–593（81 aa） Fragment：SH3 fragment, UNP residue 513-593	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298.15 K；Pressure 1 NMR sample composition 0.5 mM [U-13C; U-15N] amphiphysin 2 SH3, 0.5 mM [U-13C; U-15N] CHIKV nsP3 peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BIN1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–81； UniProt 513–593

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mv0
Deposition date deposition_date	2002-09-24
Structure title title	NMR STRUCTURE OF THE TUMOR SUPPRESSOR BIN1: ALTERNATIVE SPLICING IN MELANOMA AND INTERACTION WITH C-MYC
Keywords keywords	TUMOR SUPPRESSOR/ONCOPROTEIN, ENDOCYTOSIS/EXOCYTOSIS, TRANSCRIPTION COMPLEX, ENDOCYTOSIS-EXOCYTOSIS; ENDOCYTOSIS/EXOCYTOSIS, TRANSCRIPTION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.47 Å
Radius of gyration Rg (electron density) rg_electron	16.30 Å
Forward intensity I(0) i0	661829000.00
Molecular weight molecular_weight	215700.0 kDa
Excluded volume excluded_volume	269450 Å³
Envelope volume envelope_volume	67056 Å³
Hydration-shell volume shell_volume	25881 Å³
Envelope diameter envelope_diameter	76.6 Å
Shell Rg shell_rg	28.95 Å
Envelope Rg envelope_rg	21.62 Å
Shape Rg shape_rg	16.25 Å
Total Rg total_rg	16.84 Å
Total atoms total_atoms	30040
Residues n_residues	1900
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	43.6 Å
Rg (real space) rg_real	15.60 Å
Rg uncertainty (real space) rg_real_error	0.05 Å
I(0) (real space) i0_real	6.3000e+08
I(0) uncertainty (real space) i0_real_error	4.7060e+06
Rg (reciprocal space) rg_reciprocal	16.50 Å
I(0) (reciprocal space) i0_reciprocal	661800000.0000
Solution quality estimate total_estimate	0.6829
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.6 Å
Skewness Skewness skewness	0.236
Kurtosis Kurtosis kurtosis	-0.383
Angular range angular_range	— – 0.4850 Å⁻¹
Current regularization parameter α current_alpha	2.6850
Highest regularization parameter α highest_alpha	5491000.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.005; Oscil: 0.979; Stabil: 0.985; Sysdev: 0.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Myc proto-oncogene protein
Molecular weight formula_weight	1479.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	30040

LLPTPPLSPSRRSG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Myc box-dependent-interacting protein 1
Molecular weight formula_weight	9356.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GRLDLPPGFMFKVQAQHDYTATDTDELQLKAGDVVLVIPFQNPEEQDEGWLMGVKESDWNQHKKLEKCRGVFPENFTERVP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1mv0b_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.2 — SH3-domain
Family Family family	b.34.2.1 — SH3-domain

CATH v4.4 (1 domains)

Domain ID domain_id	1mv0B00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/mv/1mv0/1mv0.fit
pddf	/app/data/pr_computation/mv/1mv0/1mv0.pr.out
profile	/app/data/saxs_computation/mv/1mv0/1mv0.dat

NMR STRUCTURE OF THE TUMOR SUPPRESSOR BIN1: ALTERNATIVE SPLICING IN MELANOMA AND INTERACTION WITH C-MYC

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myc proto-oncogene protein

State in the Current Structure

Other States of the Same Protein in the Database

Myc box-dependent-interacting protein 1

State in the Current Structure

Other States of the Same Protein in the Database

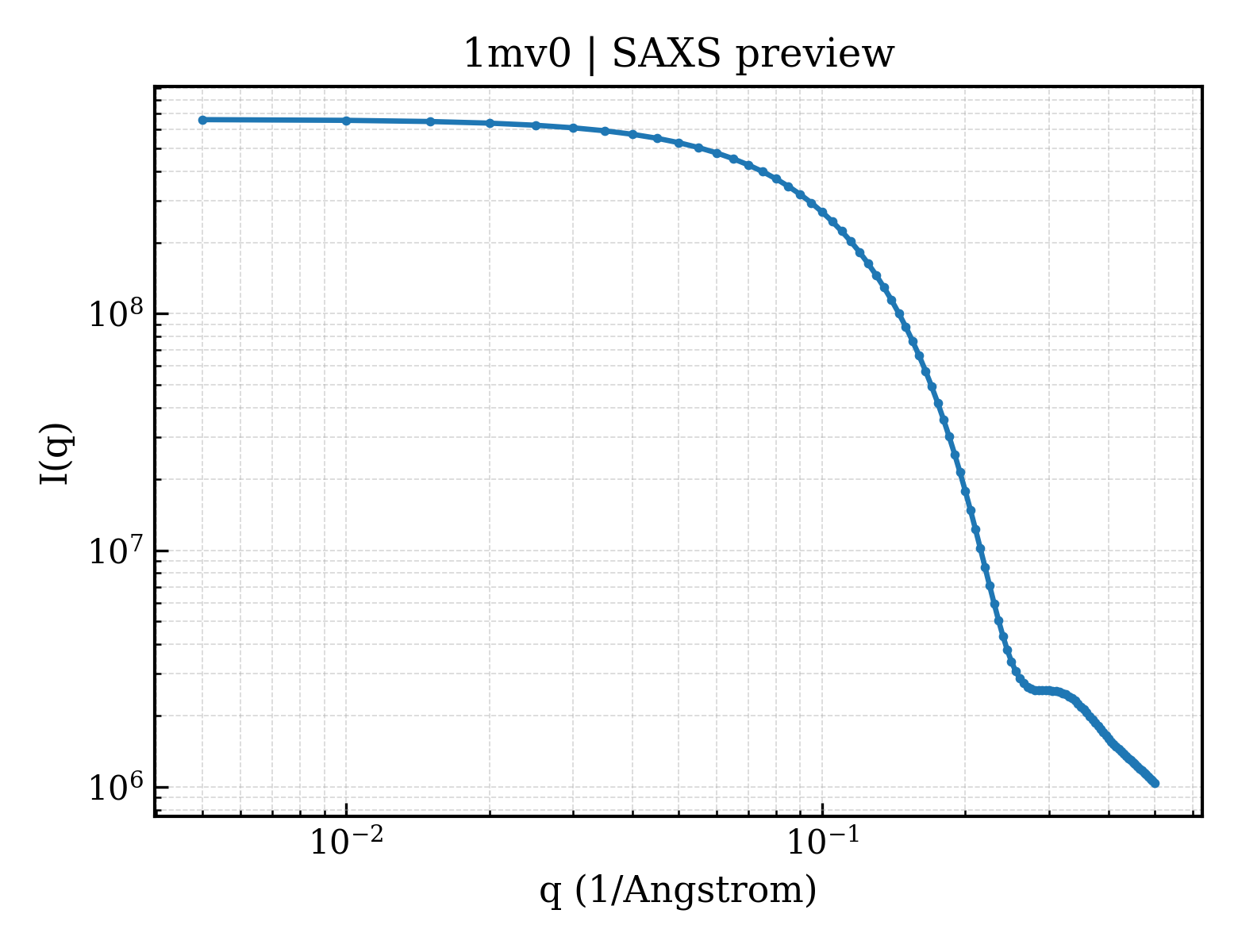

SAXS scattering curve SAXS Profile

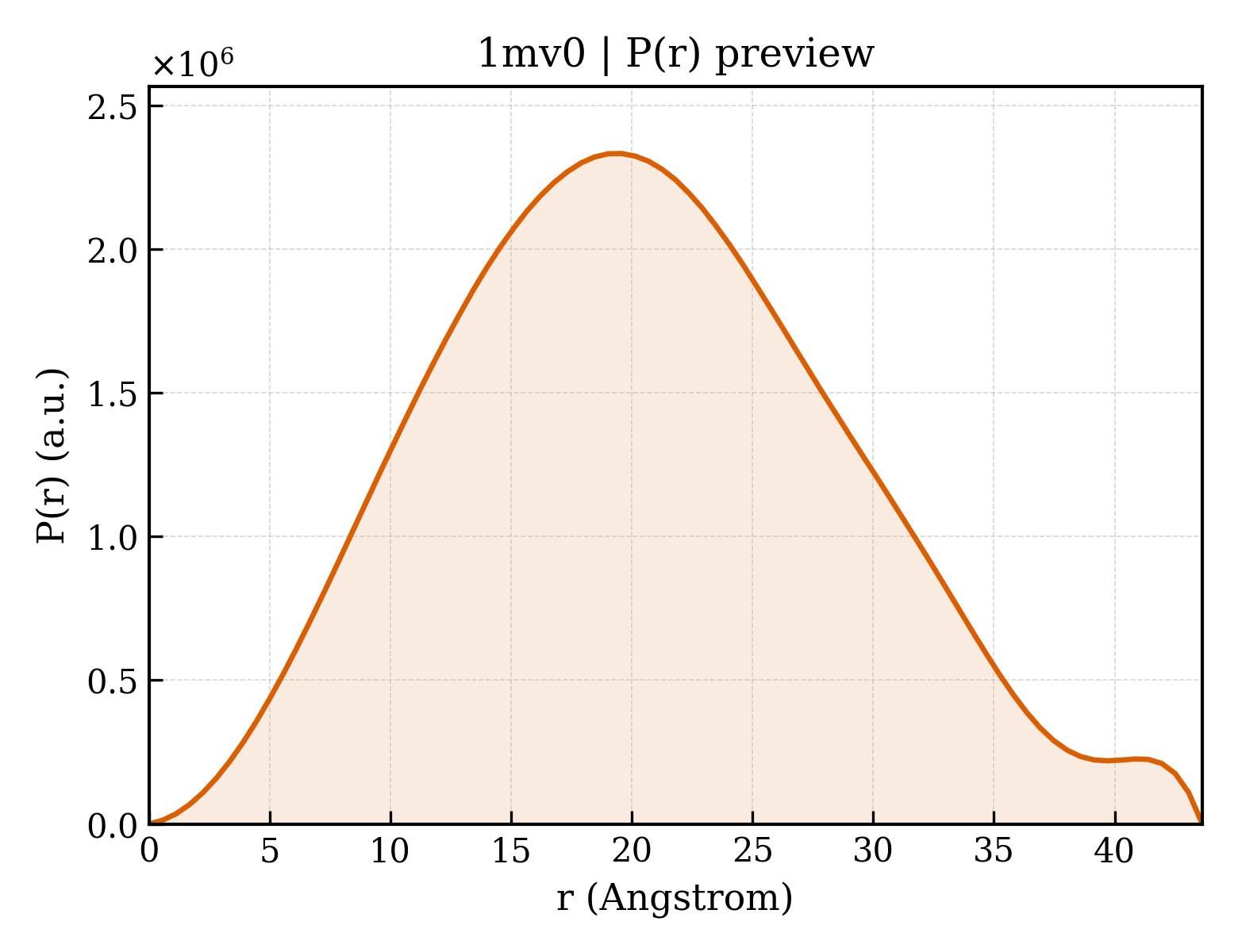

P(r) Distance Distribution P(r) Distribution
