1oqe

Crystal structure of sTALL-1 with BAFF-R

Method: X-RAY DIFFRACTION D_max: 144.9 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

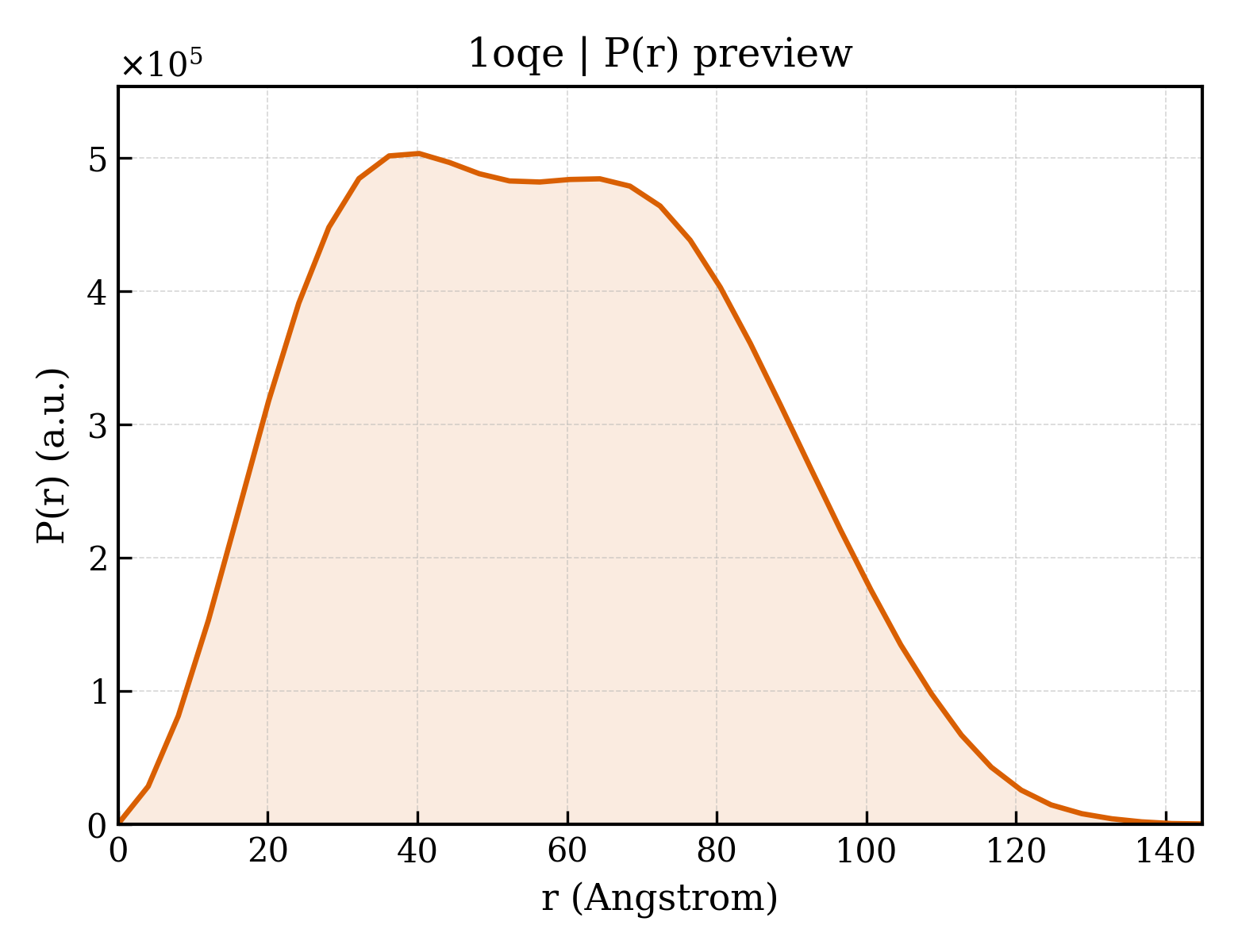

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1oqe
沉积日期 deposition_date	2003-03-07
结构标题 title	Crystal structure of sTALL-1 with BAFF-R
关键词 keywords	ligand receptor complex, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	44.18 Å
回转半径 Rg (电子) rg_electron	43.62 Å
零角强度 I(0) i0	484419000.00
分子量 molecular_weight	188380.0 kDa
排除体积 excluded_volume	238720 Å³
包络体积 envelope_volume	325720 Å³
水化壳体积 shell_volume	61525 Å³
包络直径 envelope_diameter	149.1 Å
壳层 Rg shell_rg	49.32 Å
包络 Rg envelope_rg	42.93 Å
形状 Rg shape_rg	43.58 Å
总 Rg total_rg	44.03 Å
总原子数 total_atoms	13240
残基数 n_residues	1681
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	144.9 Å
Rg (实空间) rg_real	44.19 Å
Rg 误差 (实空间) rg_real_error	1.14 Å
I(0) (实空间) i0_real	4.8440e+08
I(0) 误差 (实空间) i0_real_error	8.8470e+06
Rg (倒空间) rg_reciprocal	44.18 Å
I(0) (倒空间) i0_reciprocal	484400000.0000
解质量估计 total_estimate	0.6873
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	40.2 Å
偏度 Skewness skewness	0.215
峰度 Kurtosis kurtosis	-0.694
角度范围 angular_range	— – 0.1800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	129300000.0000
实空间数据点数 n_real_points	37
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.895; Stabil: 1.000; Sysdev: 0.145; Positv: 1.000; Valcen: 0.961; Smooth: 0.847

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Tumor necrosis factor ligand superfamily member 13B, soluble form
分子量 formula_weight	16244.6 kDa
来源方法 src_method	man
拷贝数 entity_count	10

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J
原子数 atom_count	13240

VTQDCLQLIADSETPTIQKGSYTFVPWLLSFKRGSALEEKENKILVKETGYFFIYGQVLYTDKTYAMGHLIQRKKVHVFGDELSLVTLFRCIQNMPETLPNNSCYSAGIAKLEEGDELQLAIPRENAQISLDGDVTFFGALKLL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Tumor necrosis factor receptor superfamily member 13C
分子量 formula_weight	3366.1 kDa
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,L,M,N,O,P,Q,R

PTPCVPAECFDLLVRHCVACGLLRTPRPKPA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▼

6. 折叠分类 (SCOP + CATH) 28 domains

SCOP 2.08 (18 domains)

结构域编号 domain_id	d1oqea_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.22 — TNF-like
超家族 Superfamily superfamily	b.22.1 — TNF-like
家族 Family family	b.22.1.1 — TNF-like

结构域编号 domain_id	d1oqeb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.22 — TNF-like
超家族 Superfamily superfamily	b.22.1 — TNF-like
家族 Family family	b.22.1.1 — TNF-like

结构域编号 domain_id	d1oqec_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.22 — TNF-like
超家族 Superfamily superfamily	b.22.1 — TNF-like
家族 Family family	b.22.1.1 — TNF-like

结构域编号 domain_id	d1oqed_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.22 — TNF-like
超家族 Superfamily superfamily	b.22.1 — TNF-like
家族 Family family	b.22.1.1 — TNF-like

结构域编号 domain_id	d1oqee_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.22 — TNF-like
超家族 Superfamily superfamily	b.22.1 — TNF-like
家族 Family family	b.22.1.1 — TNF-like

结构域编号 domain_id	d1oqef_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.22 — TNF-like
超家族 Superfamily superfamily	b.22.1 — TNF-like
家族 Family family	b.22.1.1 — TNF-like

结构域编号 domain_id	d1oqeg_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.22 — TNF-like
超家族 Superfamily superfamily	b.22.1 — TNF-like
家族 Family family	b.22.1.1 — TNF-like

结构域编号 domain_id	d1oqeh_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.22 — TNF-like
超家族 Superfamily superfamily	b.22.1 — TNF-like
家族 Family family	b.22.1.1 — TNF-like

结构域编号 domain_id	d1oqei_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.22 — TNF-like
超家族 Superfamily superfamily	b.22.1 — TNF-like
家族 Family family	b.22.1.1 — TNF-like

结构域编号 domain_id	d1oqej_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.22 — TNF-like
超家族 Superfamily superfamily	b.22.1 — TNF-like
家族 Family family	b.22.1.1 — TNF-like

结构域编号 domain_id	d1oqek_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.24 — TNF receptor-like
超家族 Superfamily superfamily	g.24.1 — TNF receptor-like
家族 Family family	g.24.1.2 — BAFF receptor-like

结构域编号 domain_id	d1oqel_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.24 — TNF receptor-like
超家族 Superfamily superfamily	g.24.1 — TNF receptor-like
家族 Family family	g.24.1.2 — BAFF receptor-like

结构域编号 domain_id	d1oqem_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.24 — TNF receptor-like
超家族 Superfamily superfamily	g.24.1 — TNF receptor-like
家族 Family family	g.24.1.2 — BAFF receptor-like

结构域编号 domain_id	d1oqen_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.24 — TNF receptor-like
超家族 Superfamily superfamily	g.24.1 — TNF receptor-like
家族 Family family	g.24.1.2 — BAFF receptor-like

结构域编号 domain_id	d1oqeo_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.24 — TNF receptor-like
超家族 Superfamily superfamily	g.24.1 — TNF receptor-like
家族 Family family	g.24.1.2 — BAFF receptor-like

结构域编号 domain_id	d1oqep_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.24 — TNF receptor-like
超家族 Superfamily superfamily	g.24.1 — TNF receptor-like
家族 Family family	g.24.1.2 — BAFF receptor-like

结构域编号 domain_id	d1oqeq_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.24 — TNF receptor-like
超家族 Superfamily superfamily	g.24.1 — TNF receptor-like
家族 Family family	g.24.1.2 — BAFF receptor-like

结构域编号 domain_id	d1oqer_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.24 — TNF receptor-like
超家族 Superfamily superfamily	g.24.1 — TNF receptor-like
家族 Family family	g.24.1.2 — BAFF receptor-like

CATH v4.4 (10 domains)

结构域编号 domain_id	1oqeA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1oqeB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1oqeC00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1oqeD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1oqeE00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1oqeF00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1oqeG00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1oqeH00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1oqeI00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	1oqeJ00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	40 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	233.261 Å
晶胞边长 b length_b	233.261 Å
晶胞边长 c length_c	211.286 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	120

空间群 space_group	P 63 2 2
空间群编号 int_tables_number	182
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2640
R_work r_work	0.2440
R_free r_free	0.2590

fit	/app/data/saxs_computation/oq/1oqe/1oqe.fit
pddf	/app/data/pr_computation/oq/1oqe/1oqe.pr.out
profile	/app/data/saxs_computation/oq/1oqe/1oqe.dat
