1p3a

;Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants ;

Method: X-RAY DIFFRACTION D_max: 115.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1p3a
沉积日期 deposition_date	2003-04-17
结构标题 title	;Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants ;
关键词 keywords	Sin mutants, Nucleosome Core Particle, chromatin, protein/DNA interaction, STRUCTURAL PROTEIN-DNA COMPLEX; STRUCTURAL PROTEIN/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.93 Å
回转半径 Rg (电子) rg_electron	37.18 Å
零角强度 I(0) i0	816468000.00
分子量 molecular_weight	174790.0 kDa
排除体积 excluded_volume	194050 Å³
包络体积 envelope_volume	286670 Å³
水化壳体积 shell_volume	62521 Å³
包络直径 envelope_diameter	119.7 Å
壳层 Rg shell_rg	44.90 Å
包络 Rg envelope_rg	36.61 Å
形状 Rg shape_rg	37.01 Å
总 Rg total_rg	37.90 Å
总原子数 total_atoms	11925
残基数 n_residues	1042
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

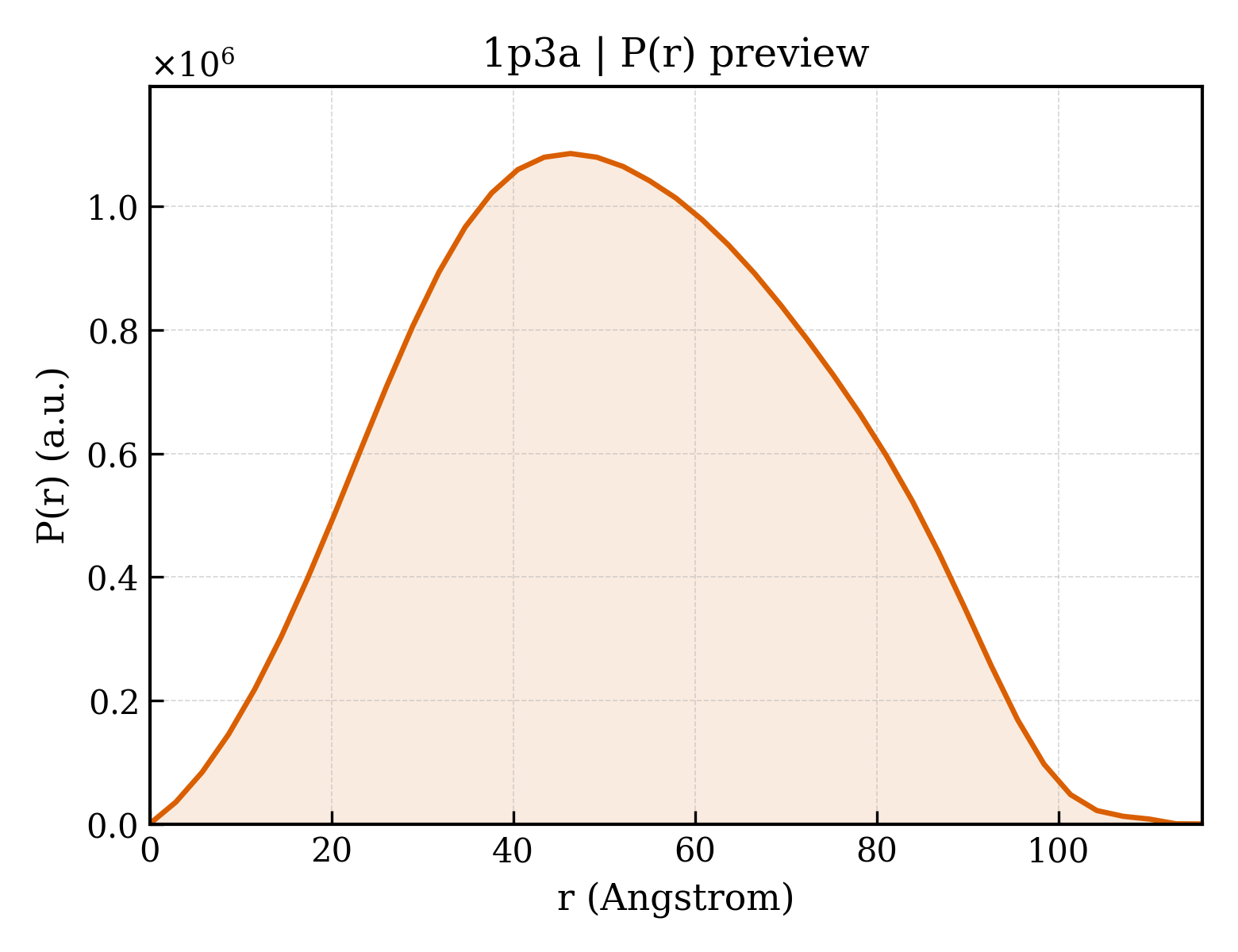

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	115.8 Å
Rg (实空间) rg_real	39.66 Å
Rg 误差 (实空间) rg_real_error	0.63 Å
I(0) (实空间) i0_real	8.1650e+08
I(0) 误差 (实空间) i0_real_error	1.3620e+07
Rg (倒空间) rg_reciprocal	39.83 Å
I(0) (倒空间) i0_reciprocal	816600000.0000
解质量估计 total_estimate	0.8919
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	46.3 Å
偏度 Skewness skewness	0.085
峰度 Kurtosis kurtosis	-0.699
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	68100000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.987; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.642

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Palindromic 146bp Human Alpha-Satellite DNA fragment
分子量 formula_weight	45054.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	I,J
原子数 atom_count	12029

ATCAATATCCACCTGCAGATTCTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCGGAATTCCGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGAATCTGCAGGTGGATATTGAT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Histone H3
分子量 formula_weight	15344.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGESKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKHVTIMPKDIQLARRIRGERA

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Histone H4
分子量 formula_weight	11263.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	Histone H2A
分子量 formula_weight	13962.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,G

SGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESAKSAKSK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 5 polymer

描述 description	Histone H2B
分子量 formula_weight	13834.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,H

PEPAKSAPAPKKGSKKAVTKTQKKDGKKRRKSRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	104

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1p3aa_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3ab_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3ac_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3ad_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3ae_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3af_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3ag_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3ah_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

CATH v4.4 (8 domains)

结构域编号 domain_id	1p3aA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3aB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3aC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3aD00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3aE00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3aF00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3aG00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3aH00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	105.423 Å
晶胞边长 b length_b	109.721 Å
晶胞边长 c length_c	180.902 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	—
R_work r_work	0.2030
R_free r_free	0.2600
