1qmc
C-terminal DNA-binding domain of HIV-1 integrase, NMR, 42 structures

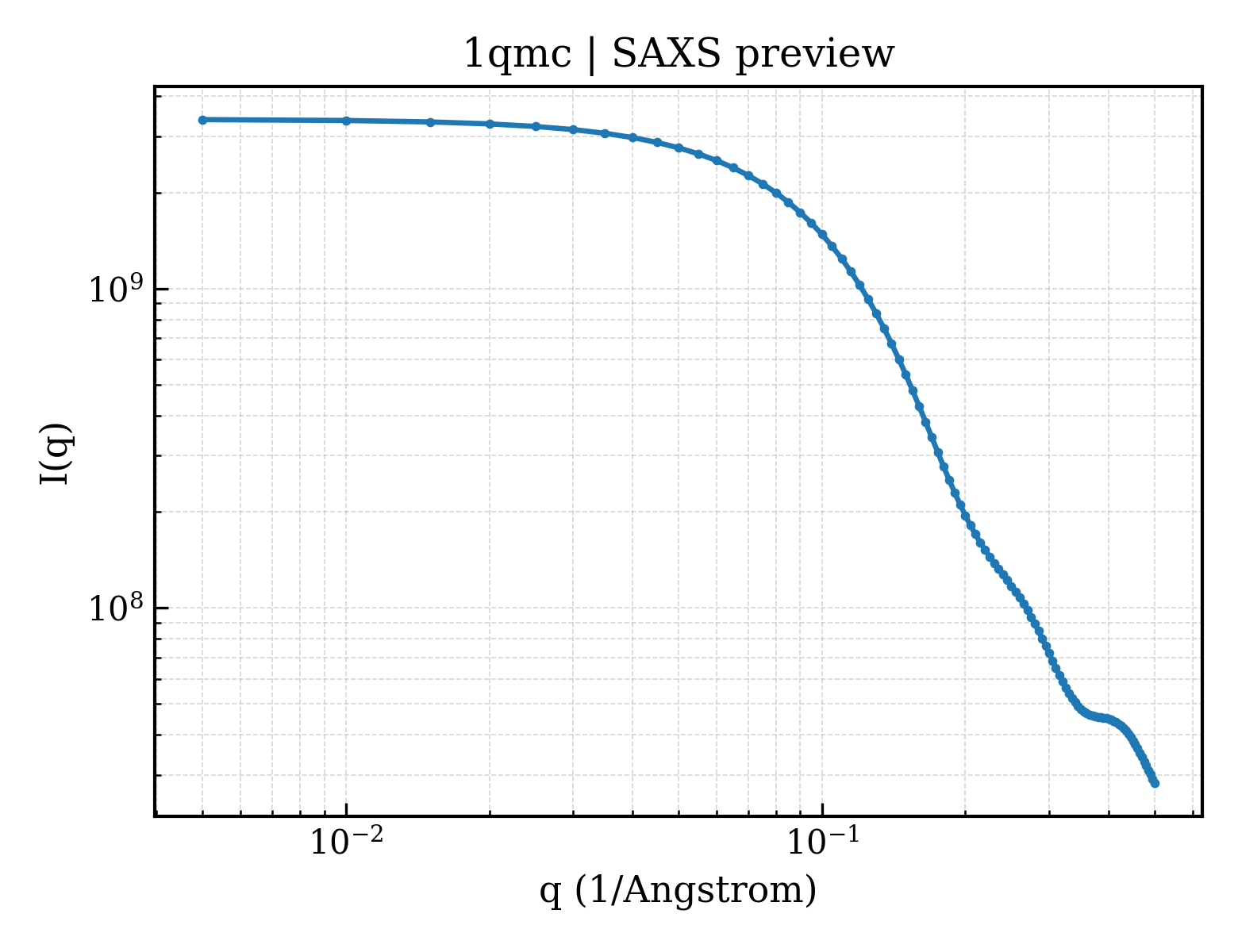

SAXS 散射曲线 SAXS Profile

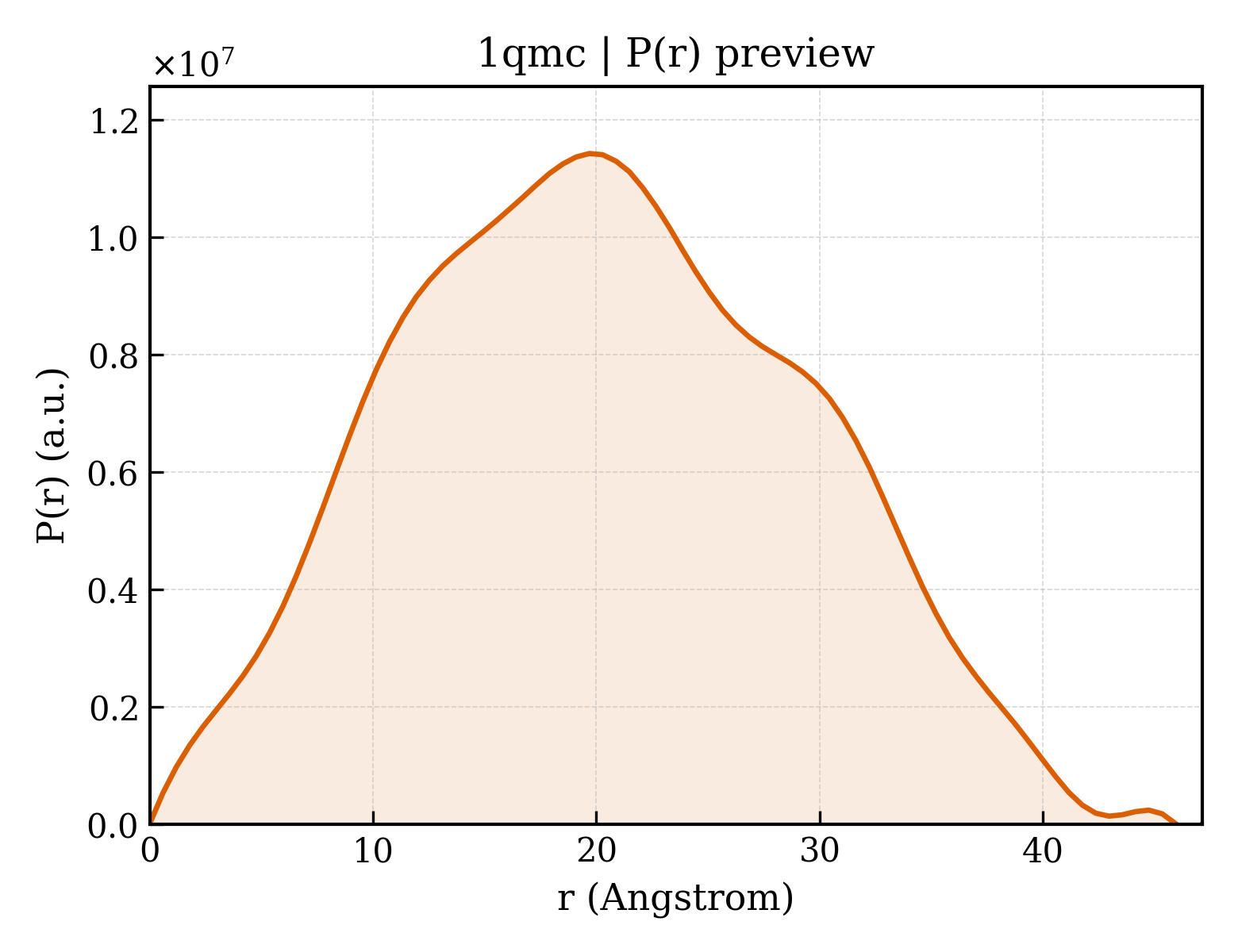

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1qmc |
| 沉积日期 deposition_date | 1999-09-27 |
| 结构标题 title | C-terminal DNA-binding domain of HIV-1 integrase, NMR, 42 structures |
| 关键词 keywords | INTEGRASE, DNA-BINDING PROTEIN, SRC HOMOLOGY 3 (SH3)-LIKE FOLD, AIDS, POLYPROTEIN, TRANSFERASE; TRANSFERASE |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 15.71 Å |
| 回转半径 Rg (电子) rg_electron | 15.25 Å |
| 零角强度 I(0) i0 | 3388600000.00 |
| 分子量 molecular_weight | 516370.0 kDa |
| 排除体积 excluded_volume | 656420 ų |
| 包络体积 envelope_volume | 30422 ų |
| 水化壳体积 shell_volume | 15385 ų |
| 包络直径 envelope_diameter | 53.5 Å |
| 壳层 Rg shell_rg | 22.48 Å |
| 包络 Rg envelope_rg | 16.96 Å |
| 形状 Rg shape_rg | 15.21 Å |
| 总 Rg total_rg | 15.46 Å |
| 总原子数 total_atoms | 74676 |
| 残基数 n_residues | 4368 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 47.1 Å |
| Rg (实空间) rg_real | 15.66 Å |
| Rg 误差 (实空间) rg_real_error | 0.27 Å |
| I(0) (实空间) i0_real | 3.3890e+09 |
| I(0) 误差 (实空间) i0_real_error | 3.3630e+07 |
| Rg (倒空间) rg_reciprocal | 15.67 Å |
| I(0) (倒空间) i0_reciprocal | 3389000000.0000 |
| 解质量估计 total_estimate | 0.8385 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 19.7 Å |
| 偏度 Skewness skewness | 0.115 |
| 峰度 Kurtosis kurtosis | -0.640 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 218700.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.969; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 6 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1qmca1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.34 — SH3-like barrel |
| 超家族 Superfamily superfamily | b.34.7 — DNA-binding domain of retroviral integrase |
| 家族 Family family | b.34.7.1 — DNA-binding domain of retroviral integrase |
| 结构域编号 domain_id | d1qmca2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1qmcb1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.34 — SH3-like barrel |
| 超家族 Superfamily superfamily | b.34.7 — DNA-binding domain of retroviral integrase |
| 家族 Family family | b.34.7.1 — DNA-binding domain of retroviral integrase |
| 结构域编号 domain_id | d1qmcb2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1qmcA00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 10 — Integrase, C-terminal domain superfamily, retroviral |
| 结构域编号 domain_id | 1qmcB00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 10 — Integrase, C-terminal domain superfamily, retroviral |
