SAXSdb — 1r43

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

beta-alanine synthase

Lachancea kluyveri

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 4 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 BETA-AMINO ISOBUTYRATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q96W94_SACKL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–455； UniProt 1–455 Author chain B； PDBConstruct 1–455； UniProt 1–455

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1r43
Deposition date deposition_date	2003-10-03
Structure title title	Crystal structure of beta-alanine synthase from Saccharomyces kluyveri (selenomethionine substituted protein)
Keywords keywords	alpha and beta protein, one di-zinc center per subunit, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1r43__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1r43__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

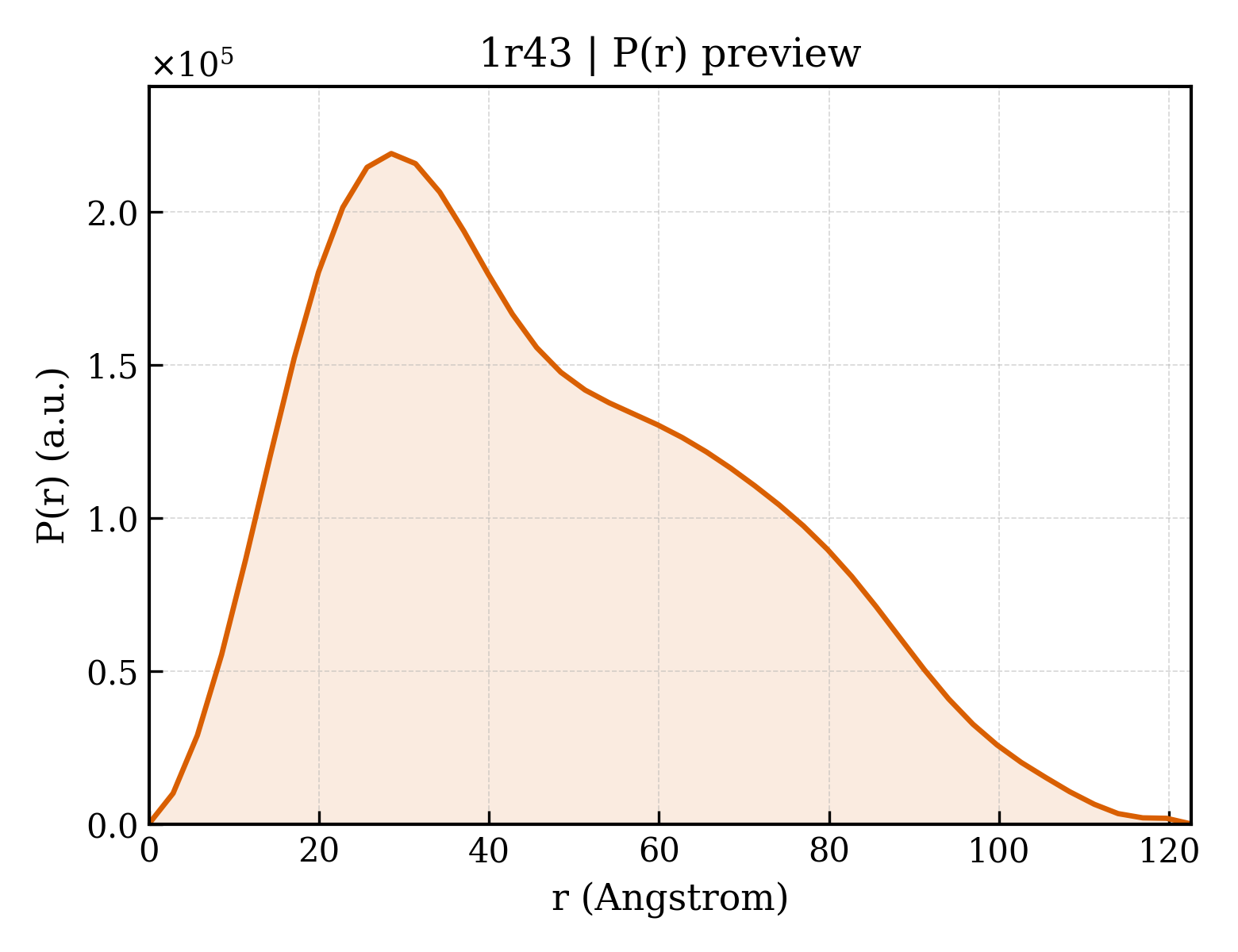

1r43__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.58 Å
Rg (electron density)	36.87 Å
Total Rg	36.94 Å
Atom count	6750
Residues	854
Excluded volume	119400 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1r43__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	beta-alanine synthase
Molecular weight formula_weight	51281.8 kDa
EC 编号 ec_number	3.5.1.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6818

MSKDVSSTITTVSASPDGTLNLPAAAPLSIASGRLNQTILETGSQFGGVARWGQESHEFGMRRLAGTALDGAMRDWFTNECESLGCKVKVDKIGNMFAVYPGKNGGKPTATGSHLDTQPEAGKYDGILGVLAGLEVLRTFKDNNYVPNYDVCVVVWFNEEGARFARSCTGSSVWSHDLSLEEAYGLMSVGEDKPESVYDSLKNIGYIGDTPASYKENEIDAHFELHIEQGPILEDENKAIGIVTGVQAYNWQKVTVHGVGAHAGTTPWRLRKDALLMSSKMIVAASEIAQRHNGLFTCGIIDAKPYSVNIIPGEVSFTLDFRHPSDDVLATMLKEAAAEFDRLIKINDGGALSYESETLQVSPAVNFHEVCIECVSRSAFAQFKKDQVRQIWSGAGHDSCQTAPHVPTSMIFIPSKDGLSHNYYEYSSPEEIENGFKVLLQAIINYDNYRVIRGHHHHHHHHH

Source Source

Source organism organism	Lachancea kluyveri
NCBI taxonomy ID ncbi_taxonomy_id	4934
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	2,3-DIHYDROXY-1,4-DITHIOBUTANE
Molecular weight formula_weight	154.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	BETA-AMINO ISOBUTYRATE
Molecular weight formula_weight	102.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	68

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1r43a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.5 — Zn-dependent exopeptidases
Family Family family	c.56.5.4 — Bacterial dinuclear zinc exopeptidases

Domain ID domain_id	d1r43a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.19 — Bacterial exopeptidase dimerisation domain
Family Family family	d.58.19.1 — Bacterial exopeptidase dimerisation domain

Domain ID domain_id	d1r43b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.5 — Zn-dependent exopeptidases
Family Family family	c.56.5.4 — Bacterial dinuclear zinc exopeptidases

Domain ID domain_id	d1r43b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.19 — Bacterial exopeptidase dimerisation domain
Family Family family	d.58.19.1 — Bacterial exopeptidase dimerisation domain

CATH v4.4 (4 domains)

Domain ID domain_id	1r43A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	10 — Zn peptidases

Domain ID domain_id	1r43A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	360 —

Domain ID domain_id	1r43B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	10 — Zn peptidases

Domain ID domain_id	1r43B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	360 —

▶

Unit-cell length a length_a	60.430 Å
Unit-cell length b length_b	77.630 Å
Unit-cell length c length_c	110.570 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.63 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	29.750 Å
R factor r_factor	0.2139
R_work r_work	0.2106
R_free r_free	0.2740

Crystal structure of beta-alanine synthase from Saccharomyces kluyveri (selenomethionine substituted protein)
