1r6o

ATP-dependent Clp protease ATP-binding subunit clpA/ATP-dependent Clp protease adaptor protein clpS

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent Clp protease ATP-binding subunit clpA

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ATP-dependent Clp protease adaptor protein clpS × 1 （P0A8Q6） ZINC ION × 1 BIS-(2-HYDROXYETHYL)AMINO-TRIS(HYDROXYMETHYL)METHANE YTTRIUM × 2 GLYCEROL × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	ATP-dependent Clp protease adaptor protein clpS × 1 （P0A8Q6） ZINC ION × 1 BIS-(2-HYDROXYETHYL)AMINO-TRIS(HYDROXYMETHYL)METHANE YTTRIUM × 2 GLYCEROL × 2 CHLORIDE ION × 1 YTTRIUM ION × 2 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	ATP-dependent Clp protease adaptor protein clpS × 2 （P0A8Q6） ZINC ION × 2 BIS-(2-HYDROXYETHYL)AMINO-TRIS(HYDROXYMETHYL)METHANE YTTRIUM × 4 GLYCEROL × 3 CHLORIDE ION × 1 YTTRIUM ION × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CLPA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–143； UniProt 1–143 Author chain B； PDBConstruct 1–143； UniProt 1–143

ATP-dependent Clp protease adaptor protein clpS

Escherichia coli

UniProt P0A8Q6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ATP-dependent Clp protease ATP-binding subunit clpA × 1 （P0ABH9） ZINC ION × 1 BIS-(2-HYDROXYETHYL)AMINO-TRIS(HYDROXYMETHYL)METHANE YTTRIUM × 2 GLYCEROL × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	ATP-dependent Clp protease ATP-binding subunit clpA × 1 （P0ABH9） ZINC ION × 1 BIS-(2-HYDROXYETHYL)AMINO-TRIS(HYDROXYMETHYL)METHANE YTTRIUM × 2 GLYCEROL × 2 CHLORIDE ION × 1 YTTRIUM ION × 2 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	ATP-dependent Clp protease ATP-binding subunit clpA × 2 （P0ABH9） ZINC ION × 2 BIS-(2-HYDROXYETHYL)AMINO-TRIS(HYDROXYMETHYL)METHANE YTTRIUM × 4 GLYCEROL × 3 CHLORIDE ION × 1 YTTRIUM ION × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CLPS_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–106； UniProt 1–106 Author chain D； PDBConstruct 1–106； UniProt 1–106

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1r6o
Deposition date deposition_date	2003-10-15
Structure title title	ATP-dependent Clp protease ATP-binding subunit clpA/ATP-dependent Clp protease adaptor protein clpS
Keywords keywords	ClpA, AAA+, N-terminal domain, ClpS, crystal, binding mechanism, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1r6o__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1r6o__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

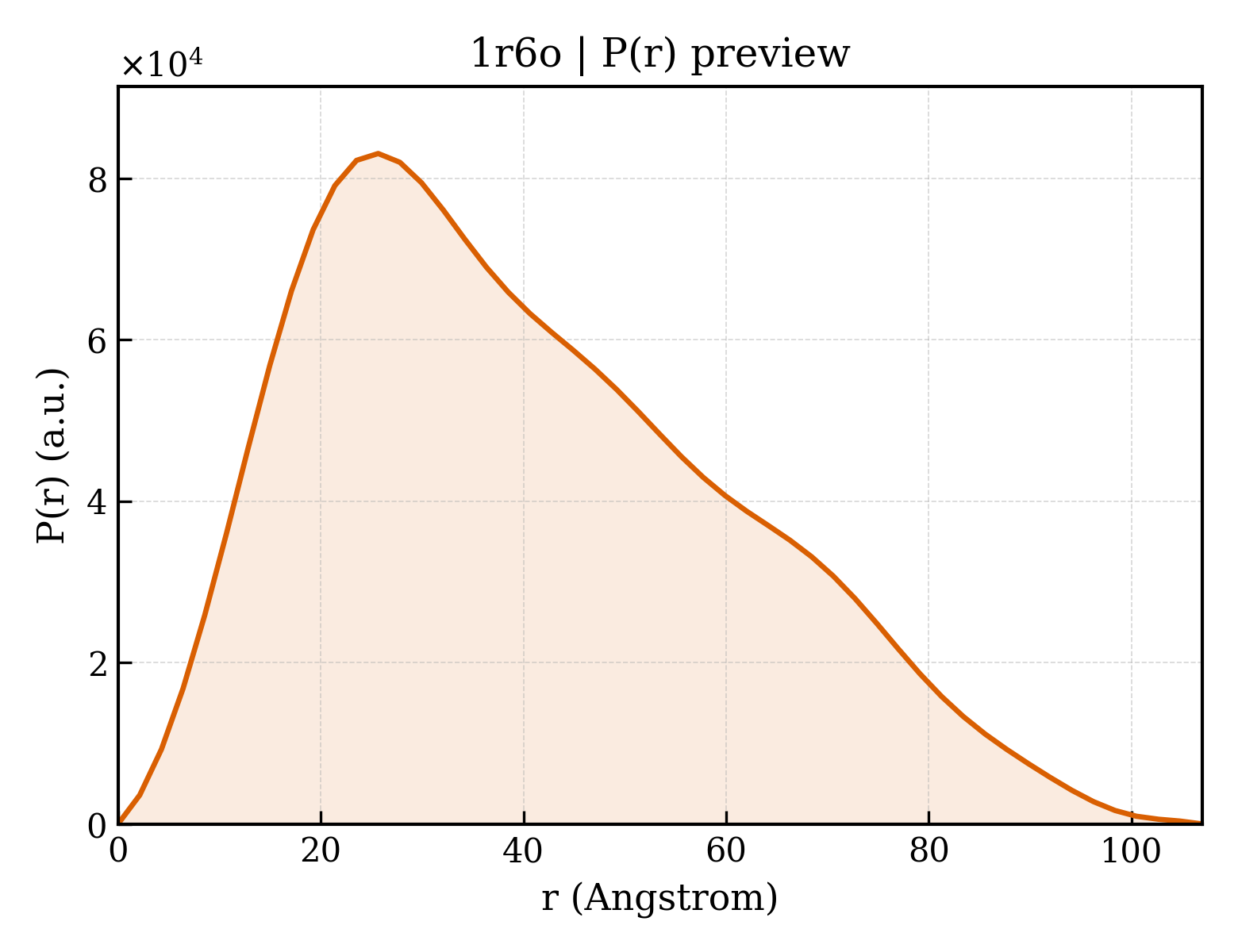

1r6o__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.84 Å
Rg (electron density)	19.81 Å
Total Rg	20.74 Å
Atom count	1923
Residues	236
Excluded volume	34406 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1r6o__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1r6o__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1r6o__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	ATP-dependent Clp protease ATP-binding subunit clpA
Molecular weight formula_weight	16200.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4125

MLNQELELSLNMAFARAREHRHEFMTVEHLLLALLSNPSAREALEACSVDLVALRQELEAFIEQTTPVLPASEEERDTQPTLSFQRVLQRAVFHVQSSGRNEVTGANVLVAIFSEQESQAAYLLRKHEVSRLDVVNFISHGTR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	ATP-dependent Clp protease adaptor protein clpS
Molecular weight formula_weight	12193.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MGKTNDWLDFDQLAEEKVRDALKPPSMYKVILVNDDYTPMEFVIDVLQKFFSYDVERATQLMLAVHYQGKAICGVFTAEVAETKVAMVNKYARENEHPLLCTLEKA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	BIS-(2-HYDROXYETHYL)AMINO-TRIS(HYDROXYMETHYL)METHANE YTTRIUM
Molecular weight formula_weight	298.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	YTTRIUM ION
Molecular weight formula_weight	88.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	277

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1r6oa_
Class class	a — All alpha proteins
Fold Fold fold	a.174 — Double Clp-N motif
Superfamily Superfamily superfamily	a.174.1 — Double Clp-N motif
Family Family family	a.174.1.1 — Double Clp-N motif

Domain ID domain_id	d1r6ob_
Class class	a — All alpha proteins
Fold Fold fold	a.174 — Double Clp-N motif
Superfamily Superfamily superfamily	a.174.1 — Double Clp-N motif
Family Family family	a.174.1.1 — Double Clp-N motif

Domain ID domain_id	d1r6oc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.45 — ClpS-like
Superfamily Superfamily superfamily	d.45.1 — ClpS-like
Family Family family	d.45.1.2 — Adaptor protein ClpS (YljA)

Domain ID domain_id	d1r6od_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.45 — ClpS-like
Superfamily Superfamily superfamily	d.45.1 — ClpS-like
Family Family family	d.45.1.2 — Adaptor protein ClpS (YljA)

CATH v4.4 (4 domains)

Domain ID domain_id	1r6oA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1780 — Double Clp-N motif
Homologous superfamily homologous superfamily	10 — Clp, N-terminal domain

Domain ID domain_id	1r6oB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1780 — Double Clp-N motif
Homologous superfamily homologous superfamily	10 — Clp, N-terminal domain

Domain ID domain_id	1r6oC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1390 — Ribosomal Protein L30; Chain: A,
Homologous superfamily homologous superfamily	10 — Ribosomal protein L7/L12, C-terminal domain/Adaptor protein ClpS

Domain ID domain_id	1r6oD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1390 — Ribosomal Protein L30; Chain: A,
Homologous superfamily homologous superfamily	10 — Ribosomal protein L7/L12, C-terminal domain/Adaptor protein ClpS

▶

Unit-cell length a length_a	87.436 Å
Unit-cell length b length_b	87.436 Å
Unit-cell length c length_c	212.955 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.250 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1902
R_work r_work	0.1899
R_free r_free	0.2055
