1re3

Crystal Structure of Fragment D of BbetaD398A Fibrinogen with the Peptide Ligand Gly-His-Arg-Pro-Amide

Method: X-RAY DIFFRACTION D_max: 291.7 Å Quality: REASONABLE

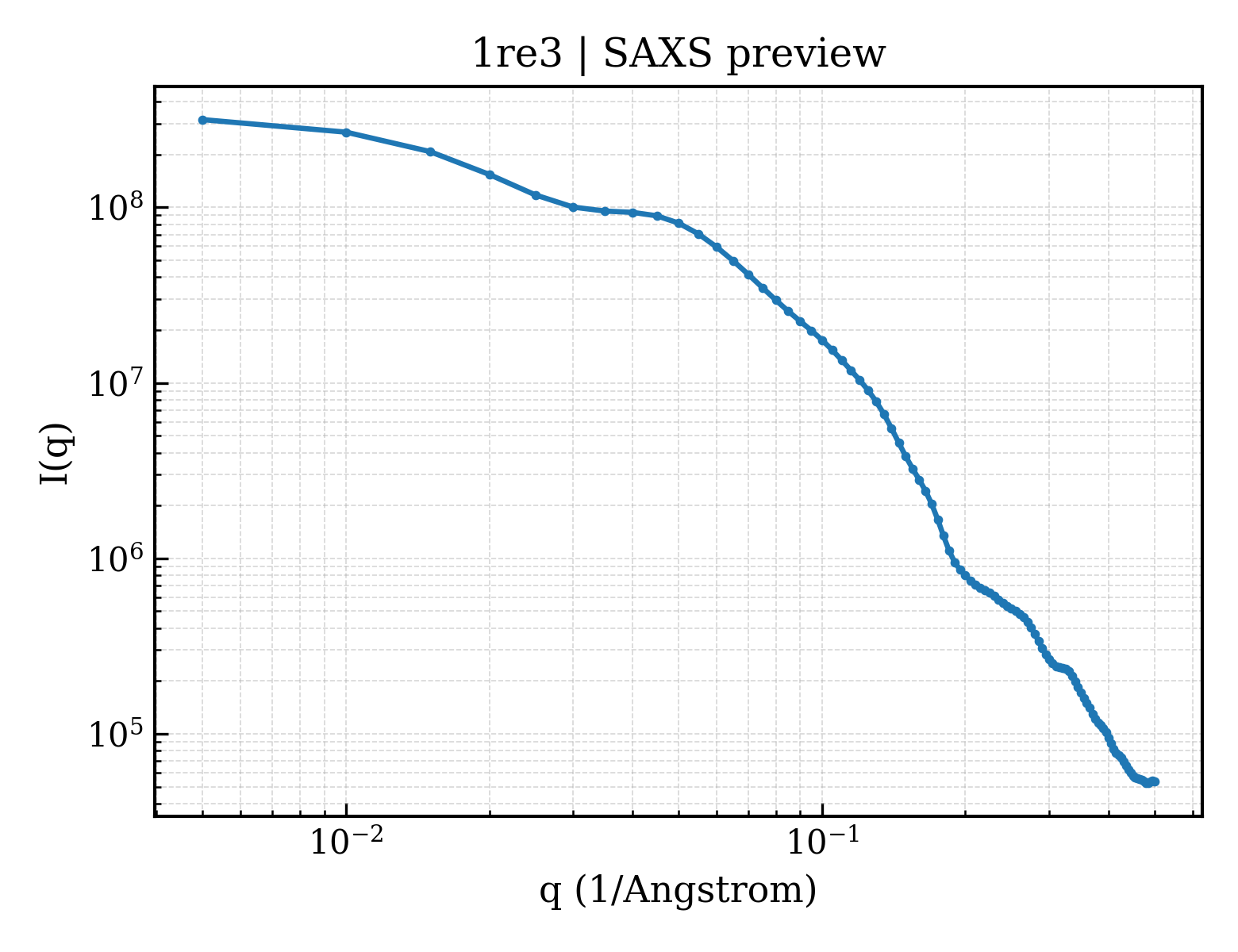

SAXS 散射曲线 SAXS Profile

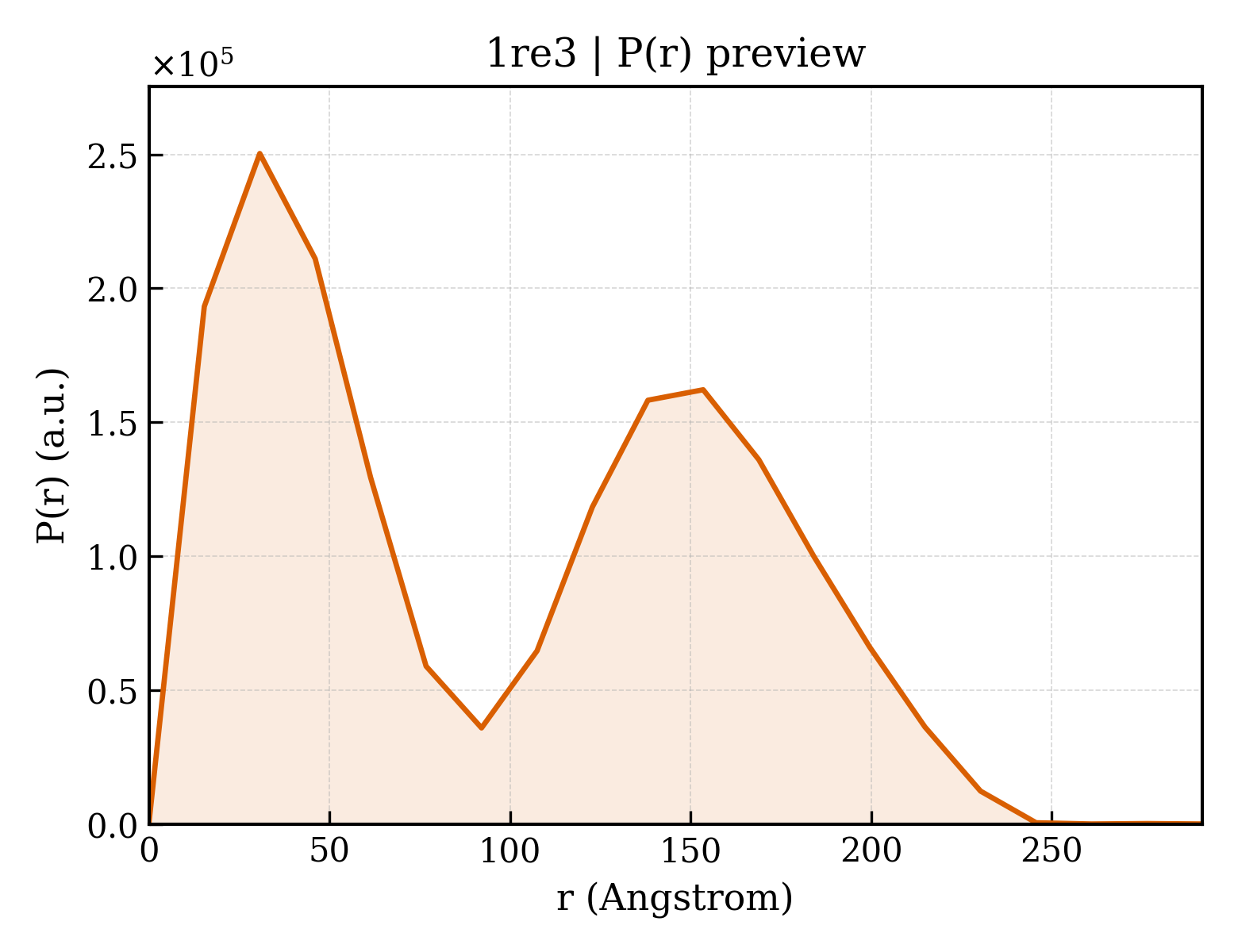

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1re3
沉积日期 deposition_date	2003-11-06
结构标题 title	Crystal Structure of Fragment D of BbetaD398A Fibrinogen with the Peptide Ligand Gly-His-Arg-Pro-Amide
关键词 keywords	;RECOMBINANT FIBRINOGEN FRAGMENT D, RECOMBINANT FIBRINOGEN, Mutant fibrinogen, variant fibrinogen, BbetaD398A fibrinogen, BbetaD398A fibrinogen with GHRPam, GHRPam, BLOOD CLOTTING ;; BLOOD CLOTTING
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	81.29 Å
回转半径 Rg (电子) rg_electron	82.35 Å
零角强度 I(0) i0	334278000.00
分子量 molecular_weight	150170.0 kDa
排除体积 excluded_volume	185420 Å³
包络体积 envelope_volume	324710 Å³
水化壳体积 shell_volume	33507 Å³
包络直径 envelope_diameter	255.2 Å
壳层 Rg shell_rg	84.28 Å
包络 Rg envelope_rg	76.30 Å
形状 Rg shape_rg	82.36 Å
总 Rg total_rg	82.35 Å
总原子数 total_atoms	10550
残基数 n_residues	1305
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	291.7 Å
Rg (实空间) rg_real	82.35 Å
Rg 误差 (实空间) rg_real_error	4.29 Å
I(0) (实空间) i0_real	3.3430e+08
I(0) 误差 (实空间) i0_real_error	7.6750e+06
Rg (倒空间) rg_reciprocal	76.37 Å
I(0) (倒空间) i0_reciprocal	329700000.0000
解质量估计 total_estimate	0.5639
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	30.7 Å
偏度 Skewness skewness	0.208
峰度 Kurtosis kurtosis	-1.363
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	5865000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.000; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.007; Smooth: 0.320

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Fibrinogen alpha/alpha-E chain
分子量 formula_weight	7747.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	10794

VIEKVQHIQLLQKNVRAQLVDMKRLEVDIDIKIRSCRGSCSRALAREVDLKDYEDQQKQLEQVIAK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 polymer

描述 description	Fibrinogen beta chain
分子量 formula_weight	35896.2 kDa
突变 mutation	D398A
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E

HQLYIDETVNSNIPTNLRVLRSILENLRSKIQKLESDVSAQMEYCRTPCTVSCNIPVVSGKECEEIIRKGGETSEMYLIQPDSSVKPYRVYCDMNTENGGWTVIQNRQDGSVDFGRKWDPYKQGFGNVATNTDGKNYCGLPGEYWLGNDKISQLTRMGPTELLIEMEDWKGDKVKAHYGGFTVQNEANKYQISVNKYRGTAGNALMDGASQLMGENRTMTIHNGMFFSTYDRDNDGWLTSDPRKQCSKEAGGGWWYNRCHAANPNGRYYWGGQYTWDMAKHGTDDGVVWMNWKGSWYSMRKMSMKIRPFFPQQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 3 polymer

描述 description	Fibrinogen gamma chain
分子量 formula_weight	35218.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F

YEASILTHDSSIRYLQEIYNSNNQKIVNLKEKVAQLEAQCQEPCKDTVQIHDITGKDCQDIANKGAKQSGLYFIKPLKANQQFLVYCEIDGSGNGWTVFQKRLDGSVDFKKNWIQYKEGFGHLSPTGTTEFWLGNEKIHLISTQSAIPYALRVELEDWNGRTSTADYAMFKVGPEADKYRLTYAYFAGGDAGDAFDGFDFGDDPSDKFFTSHNGMQFSTWDNDNDKFEGNCAEQDGSGWWMNKCHAGHLNGVYYQGGTYSKASTPNGYDNGIIWATWKTRWYSMKKTTMKIIPFNRLTIGEGQQHHLGGAK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 4 polymer

描述 description	GHRP peptide
分子量 formula_weight	467.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H

GHRP

Entity 5 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	244

▼

6. 折叠分类 (SCOP + CATH) 22 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1re3a_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1re3b1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1re3b2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1re3c1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1re3c2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1re3d_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1re3e1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1re3e2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1re3f1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1re3f2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

CATH v4.4 (12 domains)

结构域编号 domain_id	1re3A00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1re3B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1re3B02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1re3C01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1re3C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1re3C03
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1re3D00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1re3E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1re3E02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1re3F01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1re3F02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1re3F03
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	54.514 Å
晶胞边长 b length_b	147.665 Å
晶胞边长 c length_c	229.716 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.450 Å
最低分辨率 resolution_low	17.980 Å
R 因子 r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2630

fit	/app/data/saxs_computation/re/1re3/1re3.fit
pddf	/app/data/pr_computation/re/1re3/1re3.pr.out
profile	/app/data/saxs_computation/re/1re3/1re3.dat
