1sem

STRUCTURAL DETERMINANTS OF PEPTIDE-BINDING ORIENTATION AND OF SEQUENCE SPECIFICITY IN SH3 DOMAINS

Method: X-RAY DIFFRACTION D_max: 58.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

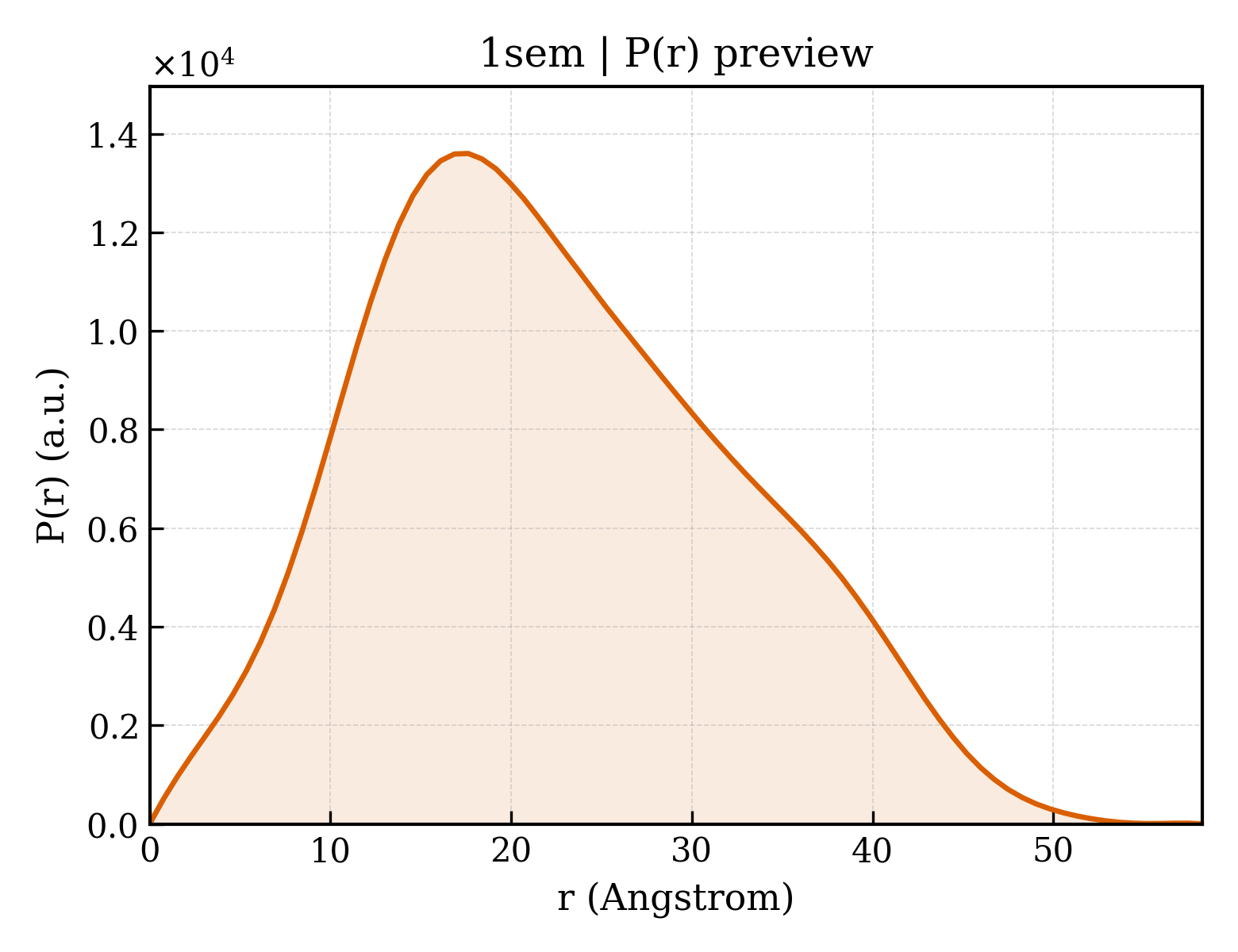

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1sem
沉积日期 deposition_date	1995-03-28
结构标题 title	STRUCTURAL DETERMINANTS OF PEPTIDE-BINDING ORIENTATION AND OF SEQUENCE SPECIFICITY IN SH3 DOMAINS
关键词 keywords	SRC-HOMOLOGY 3 (SH3) DOMAIN, PEPTIDE-BINDING PROTEIN, GUANINE NUCLEOTIDE EXCHANGE FACTOR, SIGNAL TRANSDUCTION PROTEIN; SIGNAL TRANSDUCTION PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	17.38 Å
回转半径 Rg (电子) rg_electron	16.17 Å
零角强度 I(0) i0	4286370.00
分子量 molecular_weight	14934.0 kDa
排除体积 excluded_volume	18707 Å³
包络体积 envelope_volume	21916 Å³
水化壳体积 shell_volume	12012 Å³
包络直径 envelope_diameter	56.1 Å
壳层 Rg shell_rg	20.85 Å
包络 Rg envelope_rg	16.34 Å
形状 Rg shape_rg	16.15 Å
总 Rg total_rg	17.14 Å
总原子数 total_atoms	1061
残基数 n_residues	129
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	58.2 Å
Rg (实空间) rg_real	17.40 Å
Rg 误差 (实空间) rg_real_error	0.36 Å
I(0) (实空间) i0_real	4.2860e+06
I(0) 误差 (实空间) i0_real_error	4.7090e+04
Rg (倒空间) rg_reciprocal	17.40 Å
I(0) (倒空间) i0_reciprocal	4286000.0000
解质量估计 total_estimate	0.8682
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	17.6 Å
偏度 Skewness skewness	0.334
峰度 Kurtosis kurtosis	-0.512
角度范围 angular_range	— – 0.4600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1888000.0000
实空间数据点数 n_real_points	77
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.782; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.936; Smooth: 0.999

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	SEM-5
分子量 formula_weight	6799.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	1128

ETKFVQALFDFNPQESGELAFKRGDVITLINKDDPNWWEGQLNNRRGIFPSNYVCPYN

来源 Source

来源生物 organism	Caenorhabditis elegans
NCBI 分类编号 ncbi_taxonomy_id	6239
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	10-RESIDUE PROLINE-RICH PEPTIDE FROM MSOS (ACE-PRO-PRO-PRO-VAL-PRO-PRO-ARG-ARG-ARG)
分子量 formula_weight	1100.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

XPPPVPPRRR

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	67

▼

6. 折叠分类 (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1sema_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.34 — SH3-like barrel
超家族 Superfamily superfamily	b.34.2 — SH3-domain
家族 Family family	b.34.2.1 — SH3-domain

结构域编号 domain_id	d1semb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.34 — SH3-like barrel
超家族 Superfamily superfamily	b.34.2 — SH3-domain
家族 Family family	b.34.2.1 — SH3-domain

CATH v4.4 (2 domains)

结构域编号 domain_id	1semA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	40 — SH3 Domains

结构域编号 domain_id	1semB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	40 — SH3 Domains

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	26.912 Å
晶胞边长 b length_b	68.410 Å
晶胞边长 c length_c	35.029 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.71 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	7.000 Å
R 因子 r_factor	0.1890
R_work r_work	0.1890
R_free r_free	—

fit	/app/data/saxs_computation/se/1sem/1sem.fit
pddf	/app/data/pr_computation/se/1sem/1sem.pr.out
profile	/app/data/saxs_computation/se/1sem/1sem.dat
